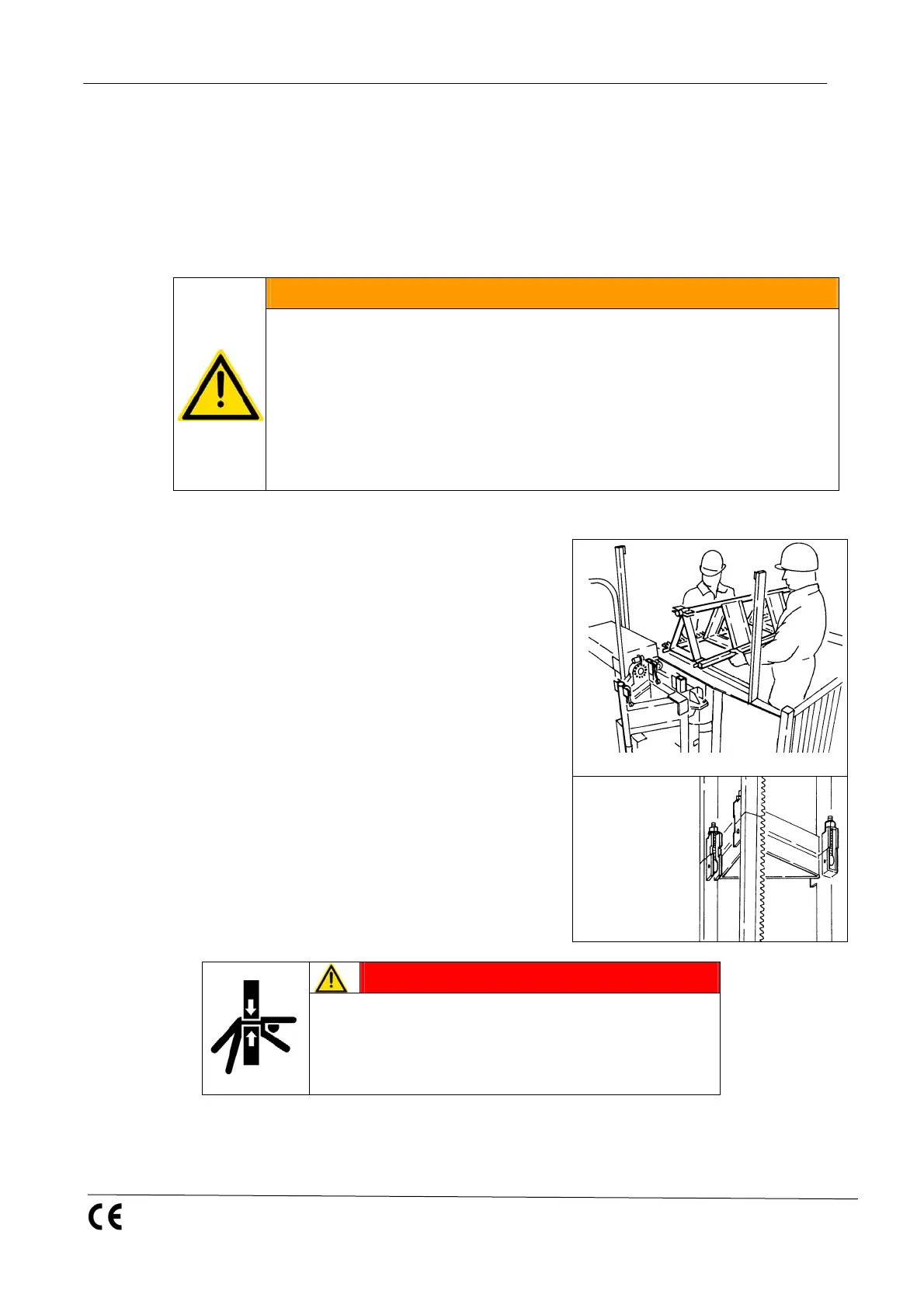

15.6 Assembly / anchoring of the mast
Assembly and anchoring of the mast is generally performed from the car
and the scaffolding. When assembling without scaffolding, a mast bracket
is used for anchoring the mast to the building from the assembly bridge.
 Load the car.
 Observe the max. payload.
 Close the loading ramp.
 Press the UP button.
The platform stops automatically at the top
end.
 Lower the assembly guard.

A
ttach the mast section, tilt it up and
tighten it.
 Reattach the assembly guard.
 Press the UP button and assemble fur-
ther mast sections.
 Press the DOWN button and fetch fur-
ther mast parts from the ground.
WARNING
Danger to life
Mast fixtures must be planned at the following distances.
First mast fixture at a height of 4 m.
Subsequent mast fixtures every 6 meters.
After assembling a mast fixture the mast must be correctly aligned
by using a spirit level.
DANGER
Danger to life
Crushing or amputation of limbs.
Never reach into the travel path of the machine
during operation.
