GEDA
®
300 Z / ZP
Page 90 of 101 Rev.: 001
BL 121 EN Translation of the original operating manual 2011 / 05
18.6.4 Motor brake
Brake pad wear limits
min. 11.5 mm
Air-gap wear limit
max. nominal
0,8 mm 0,3 mm

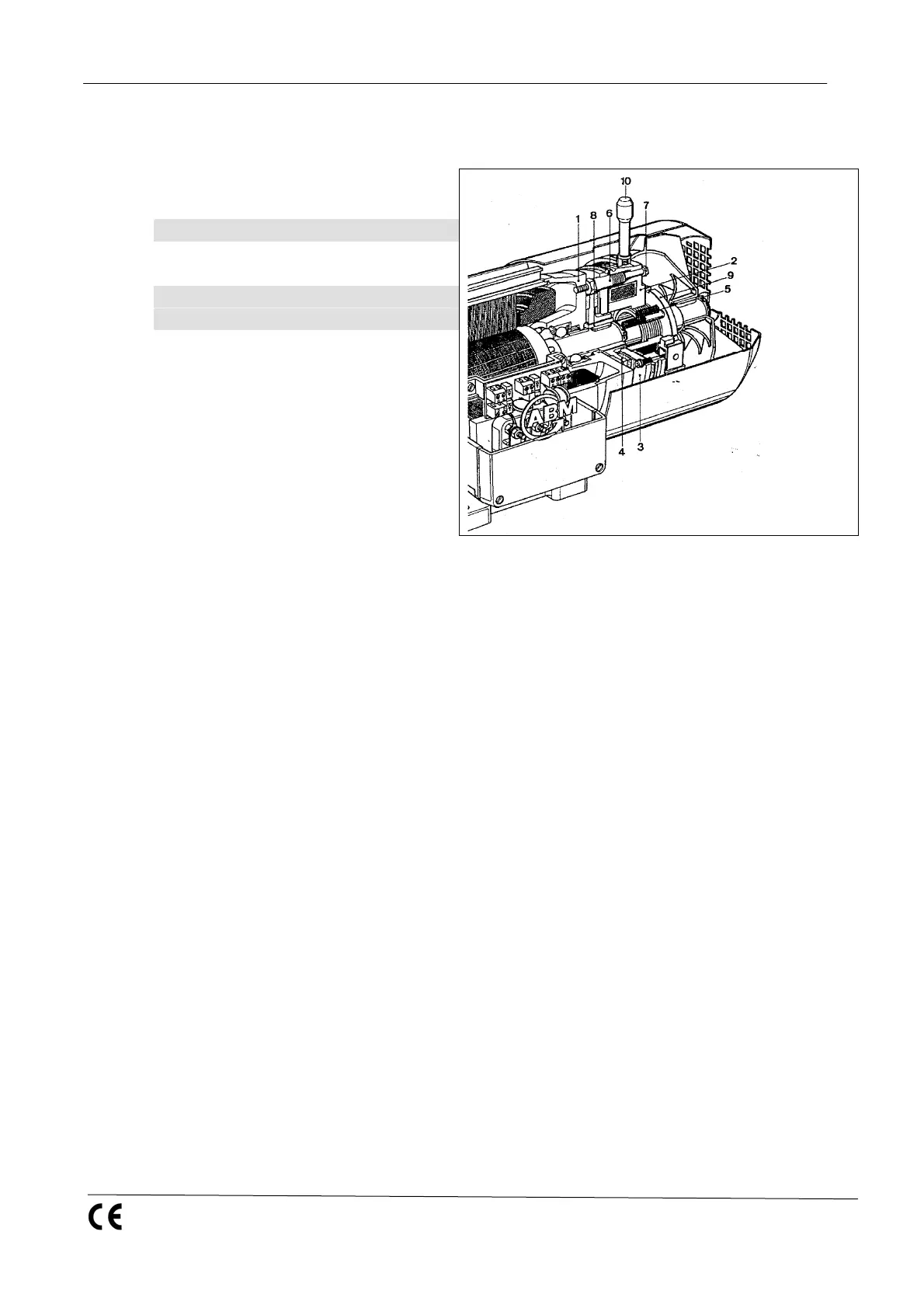

1 = Motor bearing plate, 2 = Solenoid, 3 = Anchor plate, 4 = Brake disc,
5 = Compression springs, 6 = Banjo bolts, 7 = Hexagon screws, 8 = Drivers,
9 = adjusting ring, 10 = manual release
Air gap must be the same at each position. Always check the air gap at several
positions.
In addition to this information, you must observe the information in the manu-
facturer's manual. Non-compliance releases GEDA from any liability.
Switch off motor power supply.
Unscrew manual release bolts.
Loosen the bolt and remove the fan cover.
Remove the cable.
Pull dust protection ring out of the SLOT in the magnetic body and put
over the bearing plate.
Remove dust with compressed air.
Loosen bolts and replace with new bolts.
Screw banjo bolts into the magnetic body to achieve the specified dis-
tance.
Tighten bolts with a torque of 25 Nm.
Check the air gap with a caliper.
Check banjo bolts for secure seating.
Assemble in reverse order.
Carry out function test.
