GEDA 300Z - 11.3 Assembly bridge; 11.4 Replace the cable box

GEDA
®
300 Z / ZP
Page 57 of 101 Rev.: 001
BL 121 EN Translation of the original operating manual 2011 / 05

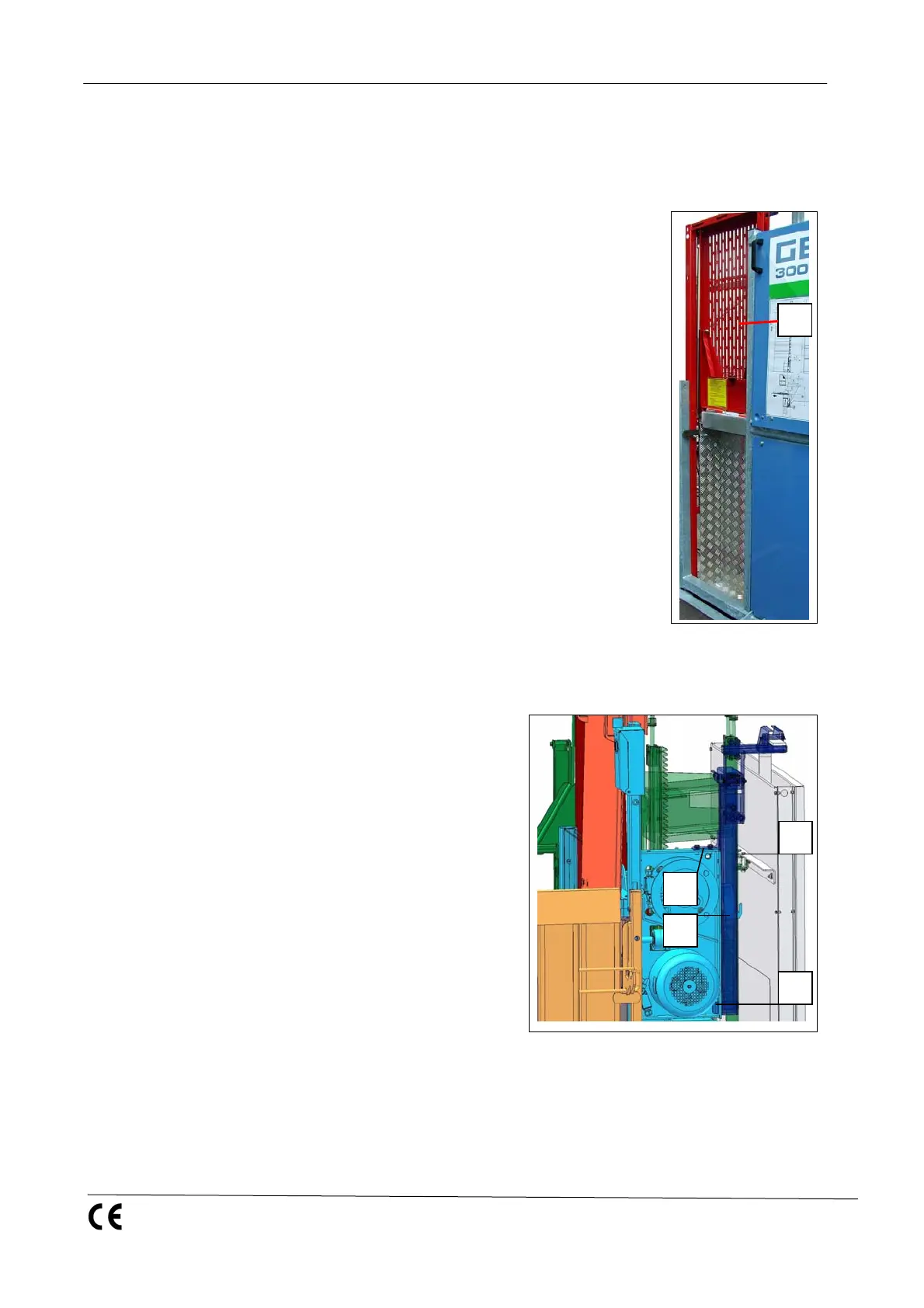

11.3 Assembly bridge
The assembly bridge (1) is used to assemble the mast sec-
tions from the platform, e.g. in front of a façade if there is
no scaffolding.
The assembly bridge must only be used during assembly
and dismantling.
Travel is not possible if the assembly bridge is lowered.
Assembly
Assembly is detailed in a specialist instruction manual sup-
plied with the product.
11.4 Replace the cable box
 Unplug the trailing cable on the
switch cabinet of the sliding car-
riage.
 Remove both bolts (2a) on the
trailing cable holder.
 Tip trailing cable holder (2) towards
the cable box and unhinge the bot-
tom attachment bracket (2b) on the
sliding carriage.
 Loosen bolts (1) on the cable box.
 Raise the cable box and remove it.
Mount cable box with the appropriate ca-
ble length as described above.
1
1
2a
2b
2
