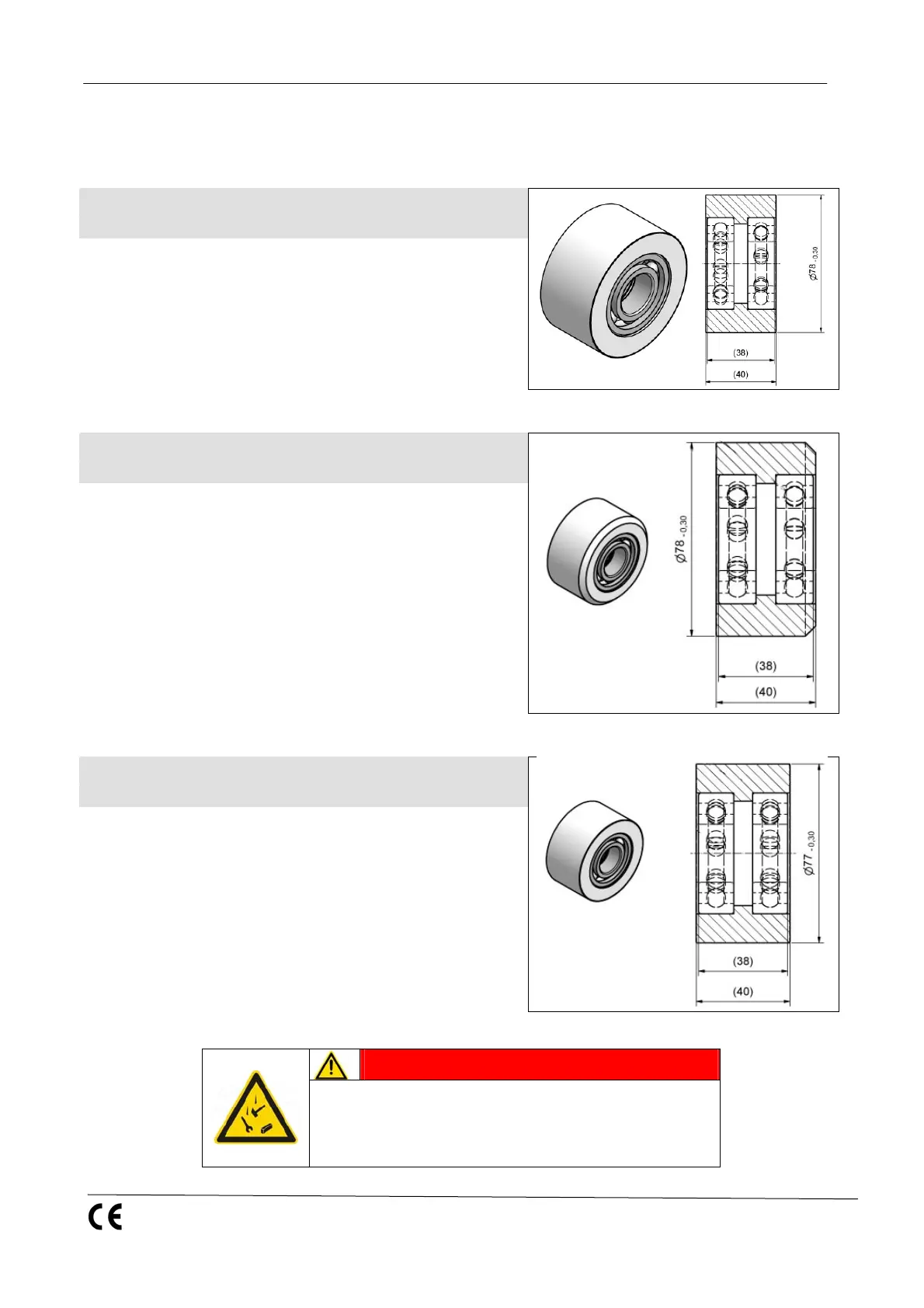

18.6.3 Tracks rollers
Track roller (white) Item-No. 13060
Wear limit (diameter)
Ø min. Ø normal
77 mm 78
-0.30
mm
Also check the play and condition of the bearing.
There must be a circlip.
Track roller with chamfer (white) Item-No. 18013
Wear limit (diameter)
Ø min. Ø normal
77 mm 78
-0.30
mm
Also check the play and condition of the bearing.
There must be a circlip.
Track roller (black) Item-No. 19983
Wear limit (diameter)
Ø min. Ø normal
76 mm 77
-0.30
mm
Also check the play and condition of the bearing.
There must be a circlip.
Change the track roller.
DANGER
Danger to life
Falling tools / parts.
Secure tools / parts against falling.
Use the car roof.
