GEDA
®
300 Z / ZP
Page 88 of 101 Rev.: 001
BL 121 EN Translation of the original operating manual 2011 / 05

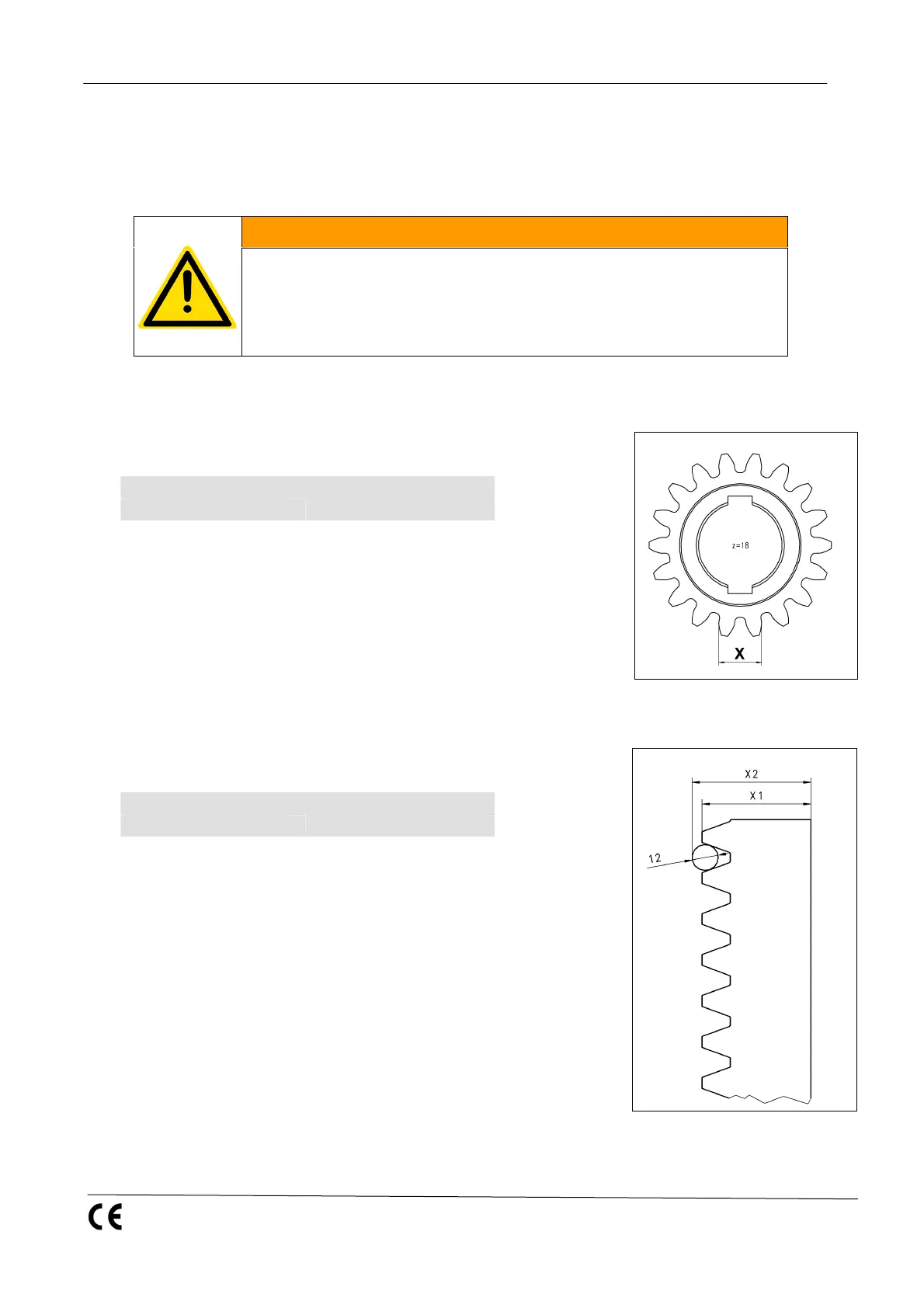

18.6 Checking for wear
18.6.1 Drive pinion
Number of teeth = 14
Module m = 6
Wear limit
Dimension X min. Dimension X normal
28,15 mm 28,85 mm
Measure dimension X on each pair of teeth
18.6.2 Gear rack
Gear rack dimension X1 = 50 mm
Wear limit
X 2 min. X2 new
53,50 mm 54,60 mm
Gauging pin: 12 mm (+0.0 / −0.11 mm)
Check that all gear racks are positioned securely. If necessary tighten gear racks with
178 Nm.
WARNING
Danger of injury from components failing
Parts must be replaced immediately if the specified wear limits
are exceeded. Machine operation is prohibited until the parts
have been replaced. All parts must also be checked for damage
(deformation, cracks, cavities, etc.).
