18.7.2 Drop test passed
18.7.3 Drop test not passed

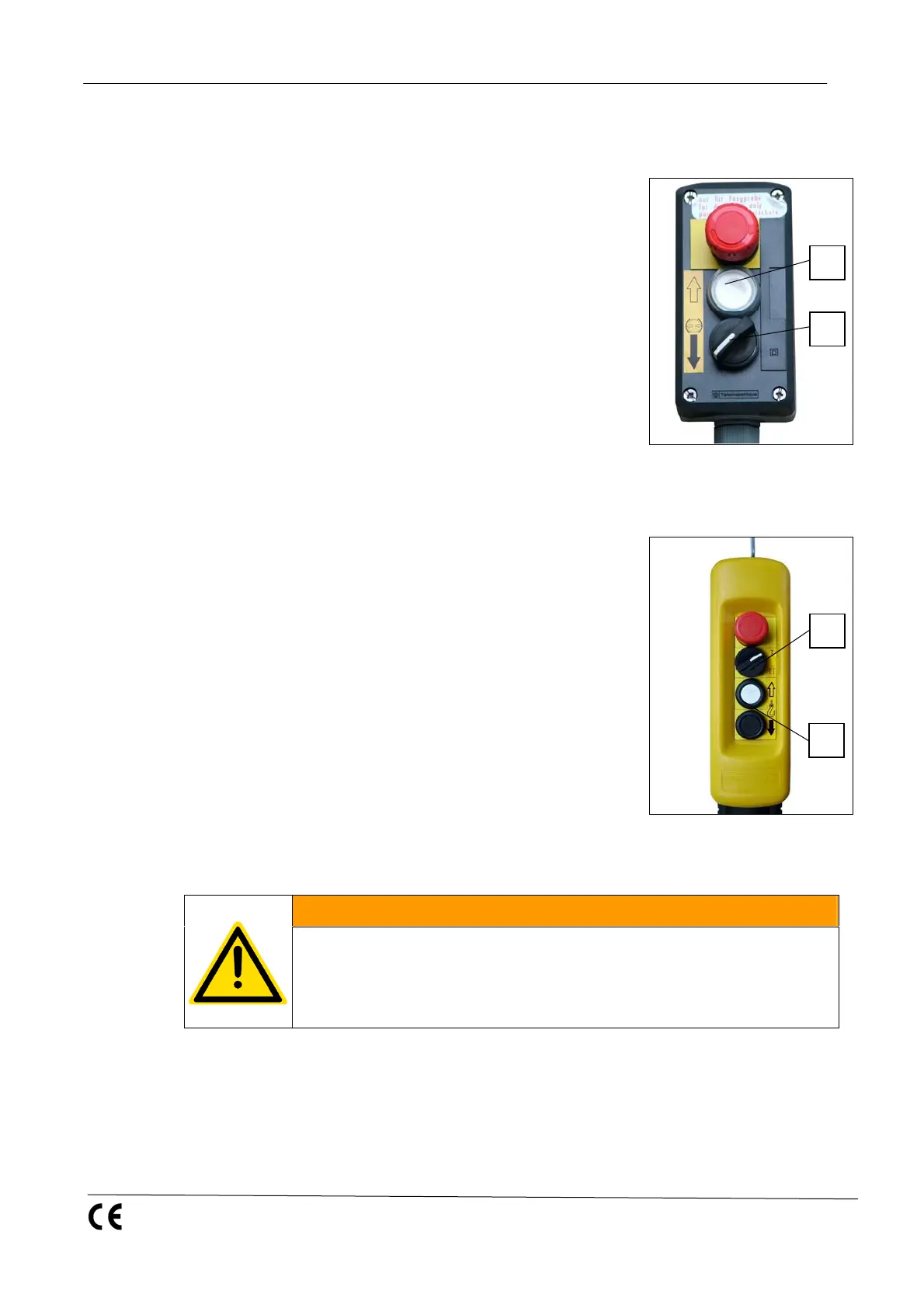

 Press the DOWN button (4) and lower the car.
 Switch the machine off at the master switch and secure against being
switched back on.
 Press the UP-button (1) until the car has reached
a height of approx. 6 m.
 Turn the rotary button (2).
The brake opens, the car drops down.
The safety gear must stop the car after approx. 2-
3 m. If the car does not stop:
 Release the rotary button (2).
 Press UP button (3).
 Car moves out of the catch position.
 Press the DOWN button (4) and lower the car.
 Unplug the drop-test control unit.
 Insert the dummy plug.
 Check safety gear for damage.
WARNING
Risk of injury
Immediately replace the safety gear. Operation of the machine is
prohibited until then.
