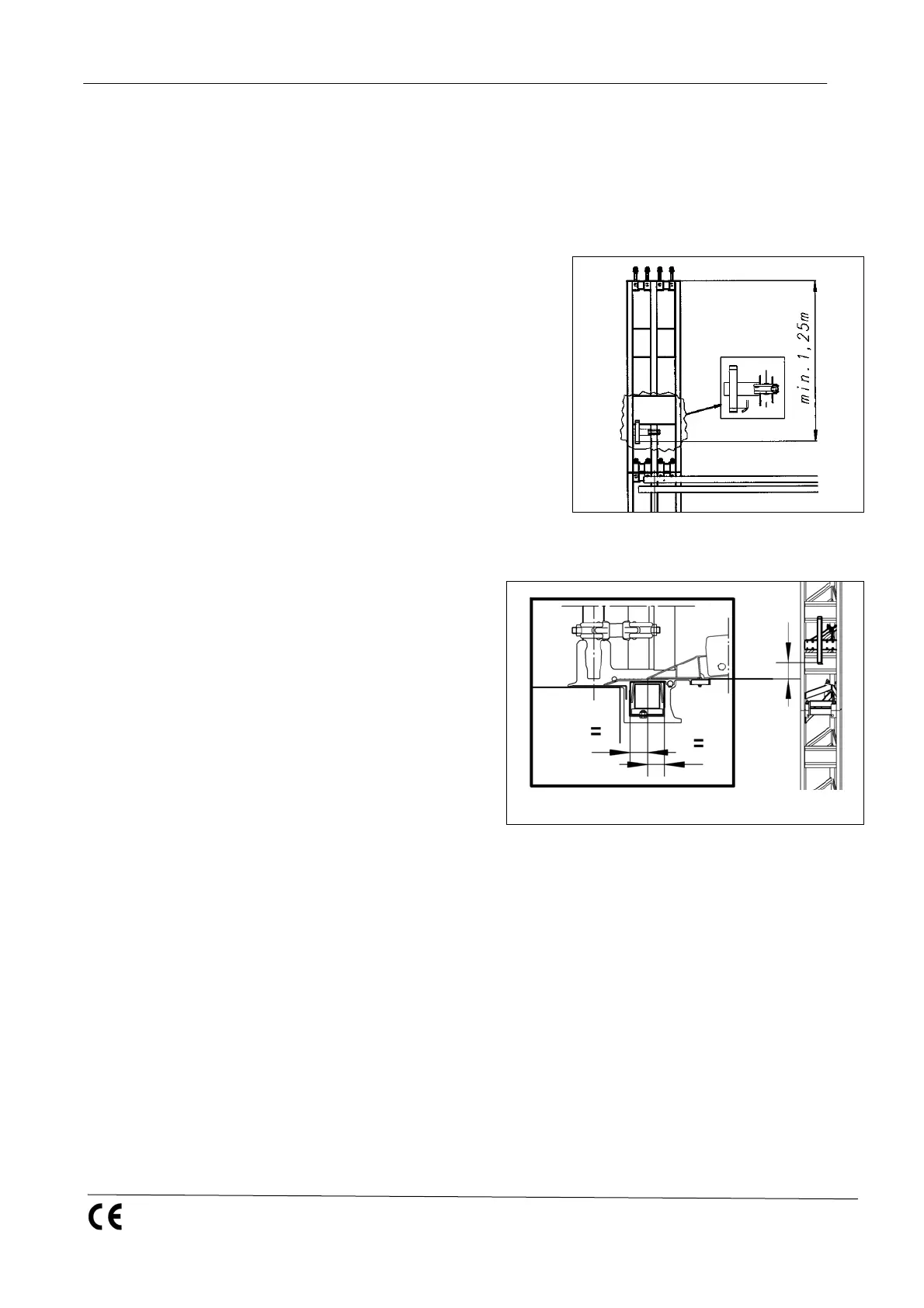

15.6.4 Assembling the EMERGENCY limit switch bar
The EMERGENCY limit switch bar stops the car in case
of a malfunction before it can exit the rack.
Assemble the EMERGENCY limit switch bar so that the
last mast fixture can be overtravelled by max. 3 m during
operation.
The minimum distance of the EMERGENCY limit switch
bar to the top mast end must be at least 1.25 m.
1.1 LANDING-LEVEL limit switch bar
The landing-level limit switch bar stops the car at
the same level as the landing-level safety equip-
ment. As a result, transfer between car and land-
ing level is possible with no offset.
Mount the landing-level limit switch bar so that the
lower end of the landing-level limit switch bar is
situated 33 cm above the level of the landing lev-
el.
Mount the landing-level limit switch bar between
both rectangular tubes of the mast and secure to
the circular mast tube with the welded coupling.
15.6.5 Securing loading and unloading points
Fall protection systems must be provided at all loading and unloading points with heights
above 2 m. Only fall protection systems allowing danger-free crossing may be used.
GEDA lifts with type test certification must also only be used in combination with tested
GEDA landing-level safety gates. For assembly of landing-level safety gates see corre-
sponding instruction manual.
