15.6.2 Trailing cable guide
Trailing cable guides must be installed to ensure that the trailing cable
runs freely into the cable box. The more sensitive the hoist location is to
wind forces, the shorter the distances should be between trailing cable
guides.
ATTENTION

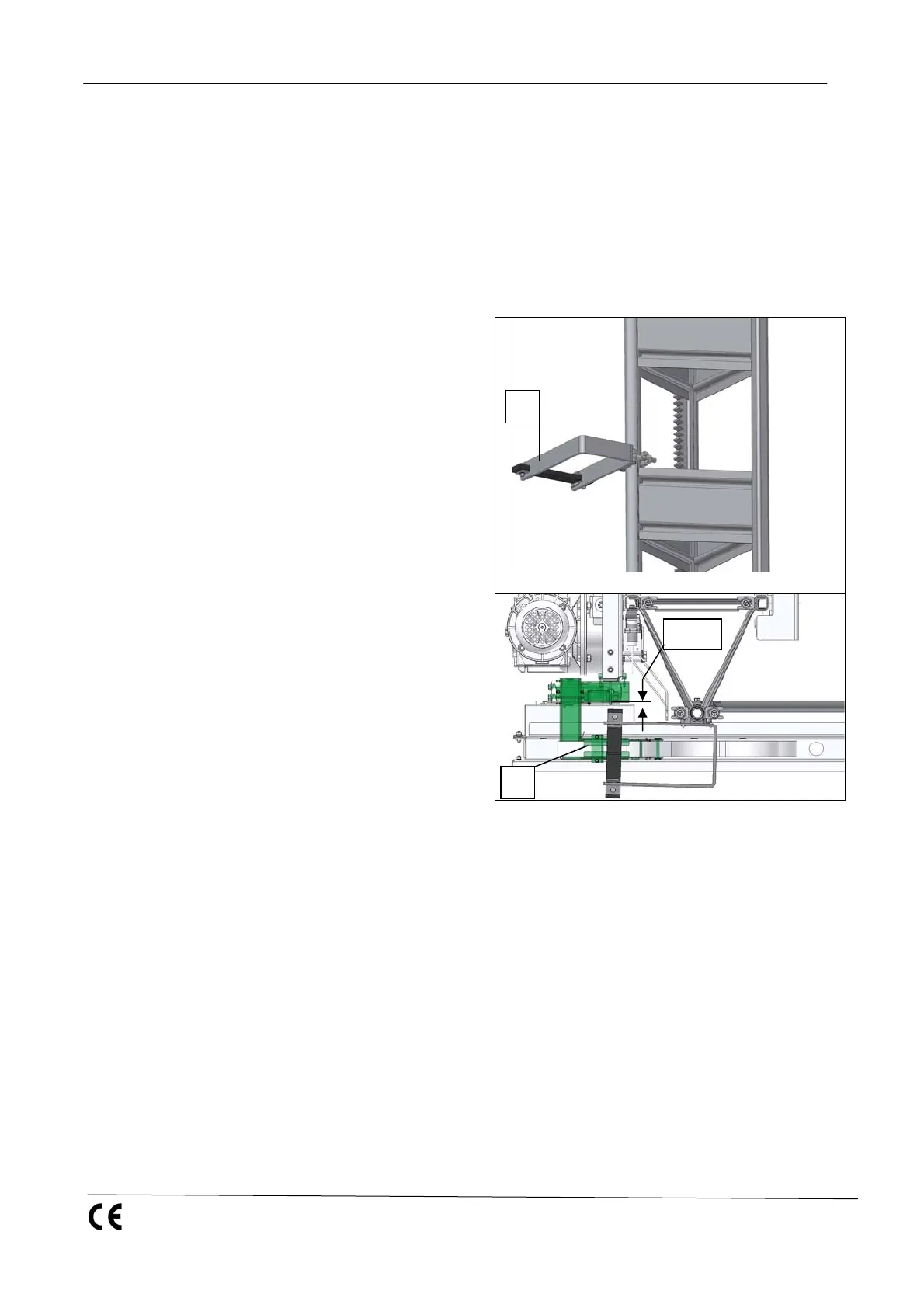

Attach the first trailing cable guide (1) at
a distance of approx. 1 m from the up-
per edge of the cable box.
Assembly
 Mount trailing cable guide (1) at
right-angles on the circular mast
tube and align centrally relative to
the cable holder (2).
NOTE
Rubber lug must point to the drive.
ATTENTION
Collision hazard with the sliding car-
riage.
 Distance to the vertical cable
holder rectangular tube at least
10 mm.
1
10 mm
2
