18.5 Refilling and inspection jobs
18.5.1 Lubrication device

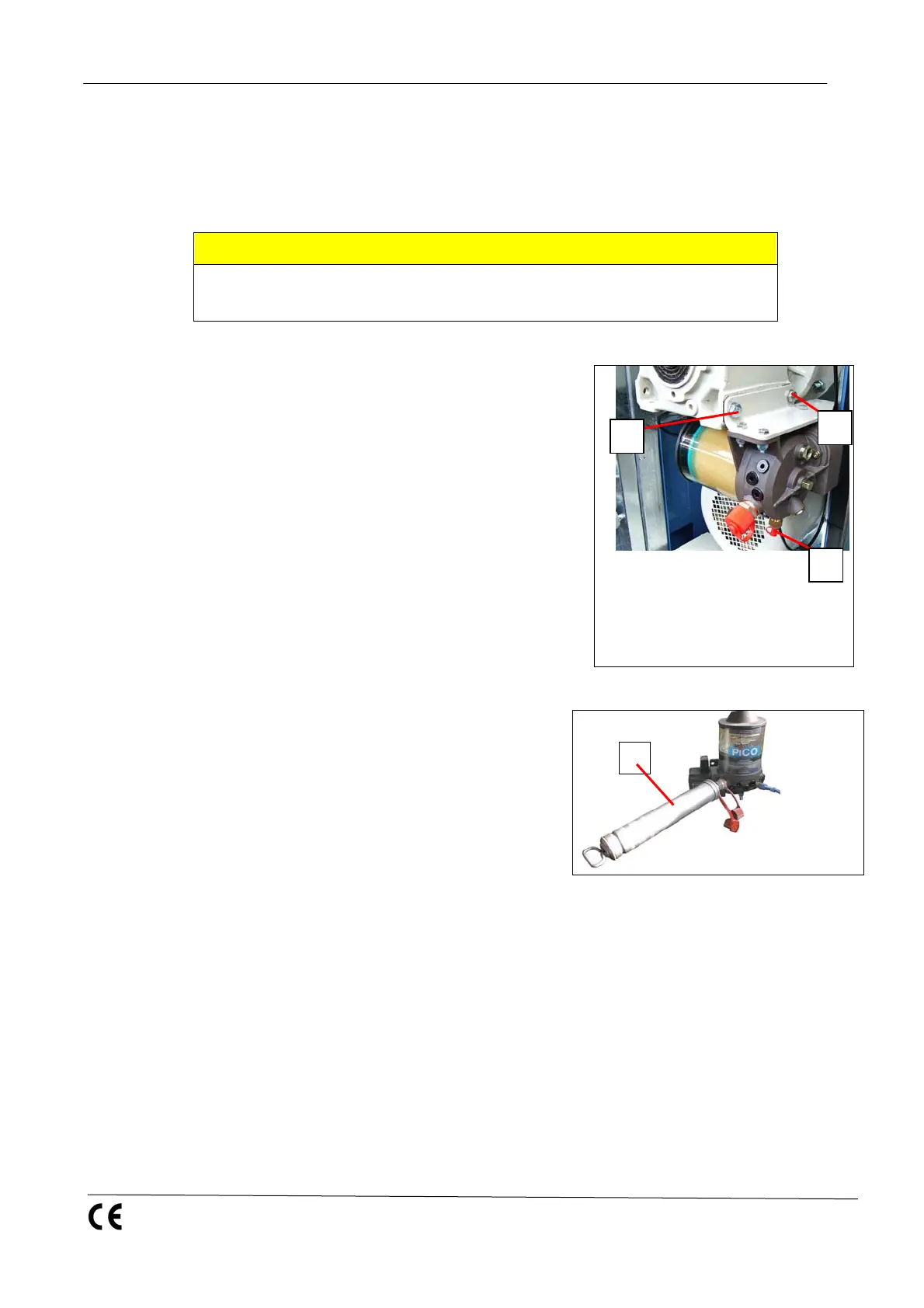

Fill up using the nipple
 Place the grease gun onto the nipple
(1).
(Underside of the reservoir)
 Fill reservoir to the “MAX” mark.
NOTE
It may be useful to fold up the lubrication
device in order to carry out maintenance on
the safety gear.
 Loosen bolt (2). Fully loosen and
remove bolt (3).
 Fold up the lubrication device using
the holder.
Quick-filling with a filling gun
 Remove the cap from the filling
port (2).
 Insert the grease gun up to the
stop point inside the filling port.
 Fill reservoir to the “MAX” mark.
Bleed the lubrication device
If the limit switch is defective, the lubrication device will run completely
empty and must be bled after the limit switch has been repaired / replaced.
 Place the grease gun onto the nipple (1).
 Fill up to 4 cm above the “MIN” mark.
 Remove the lubrication hose from the pump housing.
 Remove the pump element or locking screw (M20x1.5) and keep open
until bubble-free grease is discharged.
 Re-screw the pump element or locking screw.
 Trigger the lubricating pulse until lubricant runs out without air bubbles.
 Reconnect the lubricating hose.
CAUTION
Do not use any grease with solid lubricants. The lubrication device
may become damaged.
