GEDA
®
300 Z / ZP
Page 59 of 101 Rev.: 001
BL 121 EN Translation of the original operating manual 2011 / 05

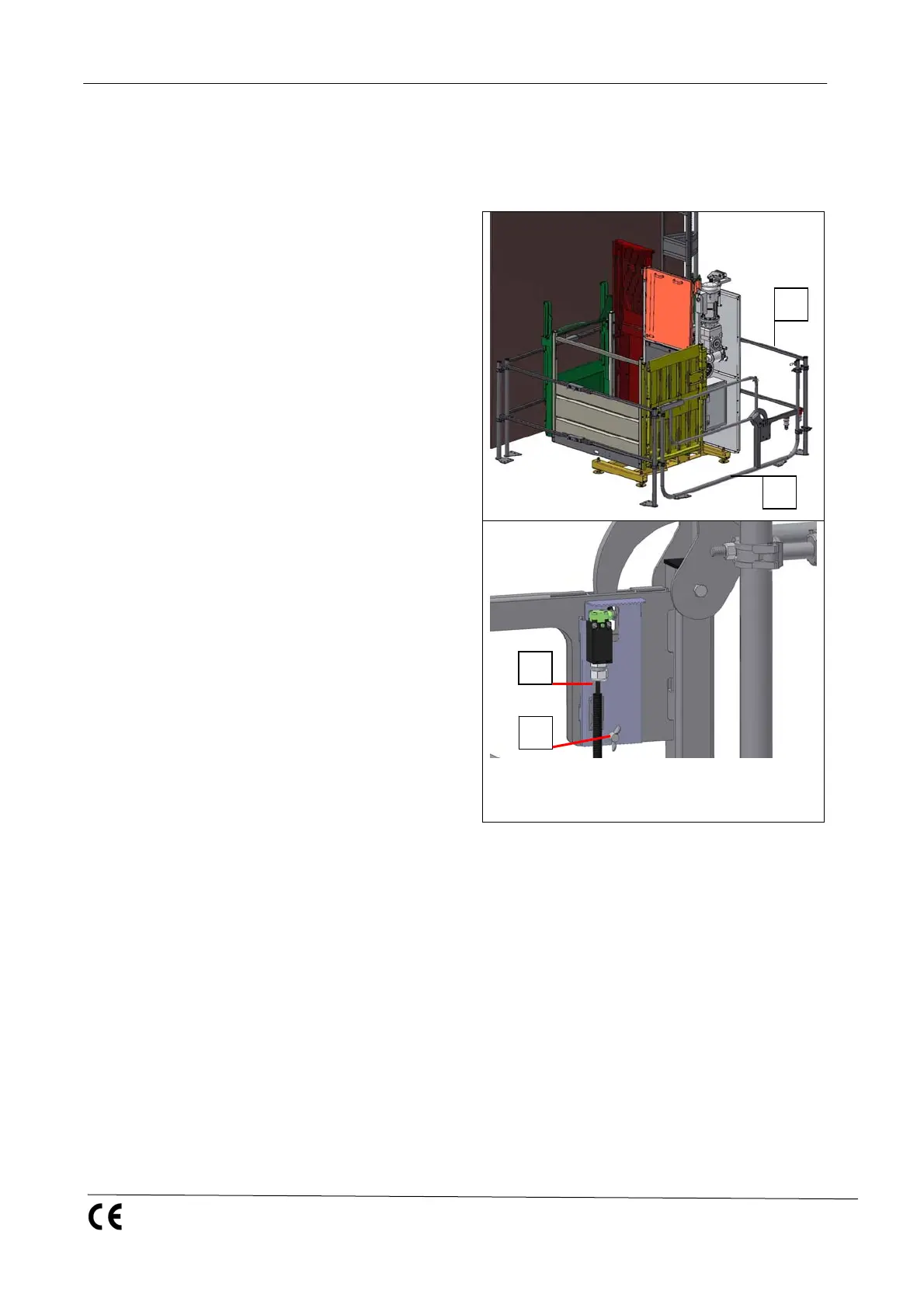

11.6 Enclosure with barrier
WARNING
The distance between the enclo-
sure and moving parts must be at
least 0.5 m.
NOTE
The barrier can optionally be
hinged on the left or right.
Assembly
Place and bolt down the
enclosure elements
around the base unit.
Mount barrier (1) to the
access side.
Mount the limit switch (2)
and secure with the wing
bolt (3).
Plug in the limit switch
7-pole plug on the cable
box switch cabinet.
The supply cable of the
first electrical module for
the landing-level gate
and / or dummy plug is
plugged into the coupling.
2
1
3
4
