9 Operating and control elements

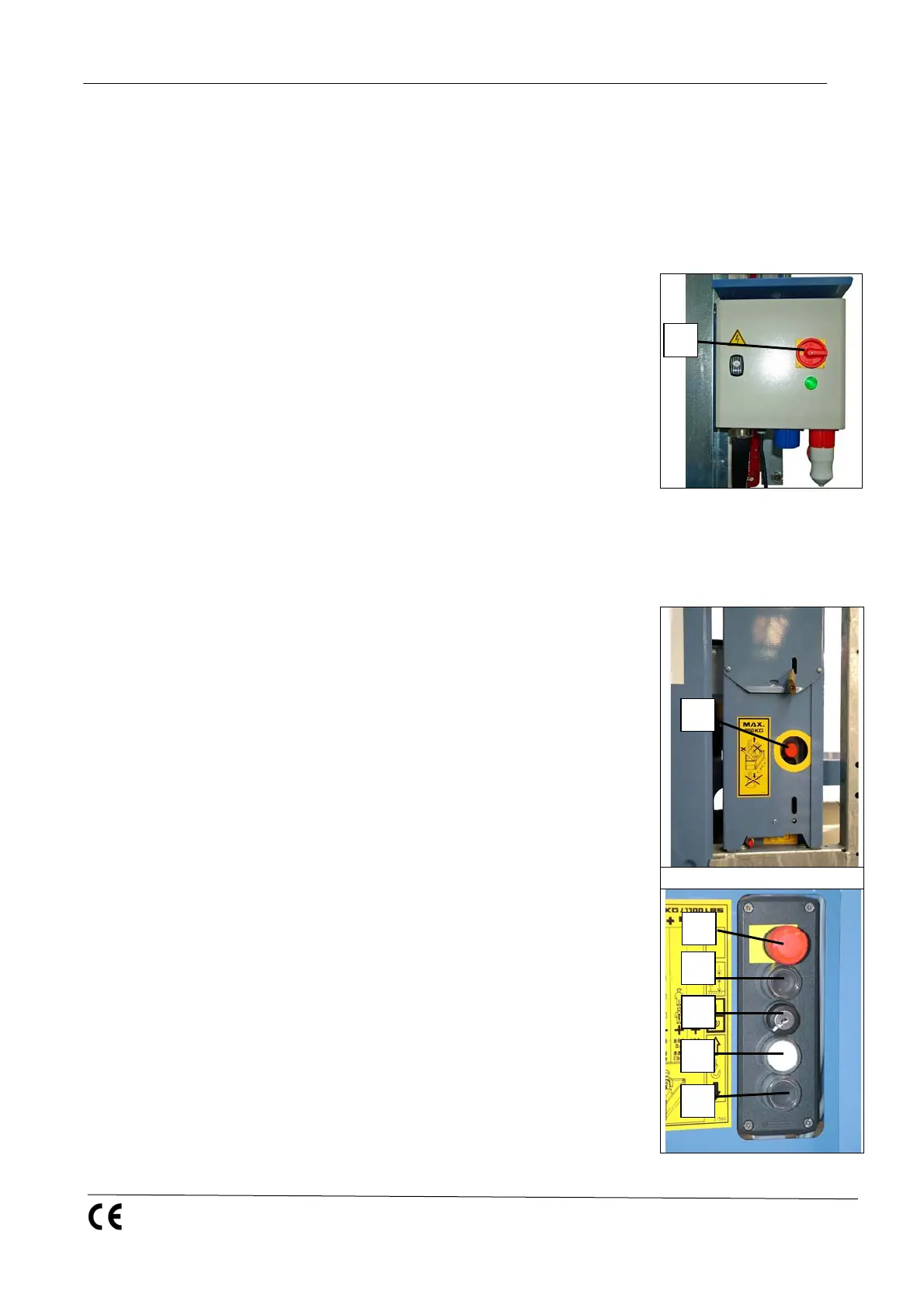

9.1 Master switch
Serves the purpose of switching On / Off at the start / end of work.
In the event of malfunctions or maintenance / repair work and at
the end of work the master switch must be secured with a padlock
to prevent it being switched on.
9.2 Car control
(Use as a transport platform / climbing platform)
Push the cover (1) up and secure it with a lock.
Turn key switch (4) to position I.
The system is now solely controlled from the car.
The machine can now be used as transport platform / climbing plat-
form.
2 = EMERGENCY-STOP
3 = LANDING-STOP button
4 = Key switch
Switches the car control on or off.
5 = UP button
6 = DOWN button
Stopping at any position is possible by simply releasing the button.
