15.6.1 Assembling the mast fixture
To assemble the mast fixtures travel up to a point where these can easily mounted. The
minimum distance to the assembly bridge is 5 cm.
Use extension tubes to increase the distance to the building. Choose the horizontal dis-
tance from the wall as big as possible.

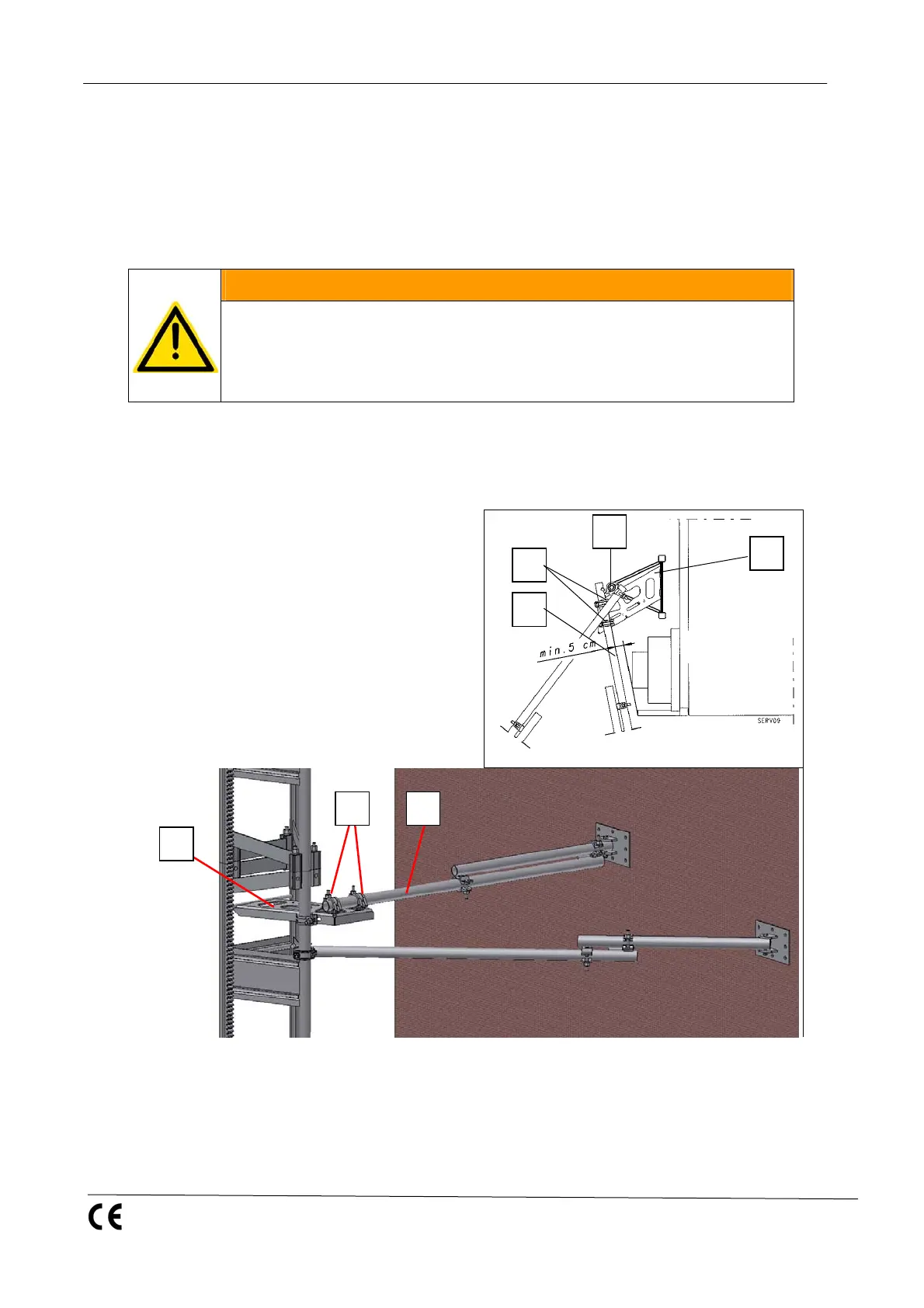

Fasten the mast fixture (1) from the
front on the circular mast tube using
a scaffolding coupling (2). (Tighten-
ing torque 50 Nm).
Insert the telescopic tube (3). Close
the scaffolding clamps (4), screw
them together so that the tube can
still be moved.
For adjusting the angle loosen the
nuts below the scaffolding clamps
(4) and move the clamps. Re-
tighten the nuts.
In order to minimize wear on the gear racks, we recommend lubricating the gear
racks each time a mast bracket is fitted.
WARNING
Danger of collision
The free tube ends must not project beyond the mast cross-section /
the travel path of the car.
1
4
3
2
Platform
1
2 3
