GEDA
®
300 Z / ZP
Page 75 of 101 Rev.: 001
BL 121 EN Translation of the original operating manual 2011 / 05

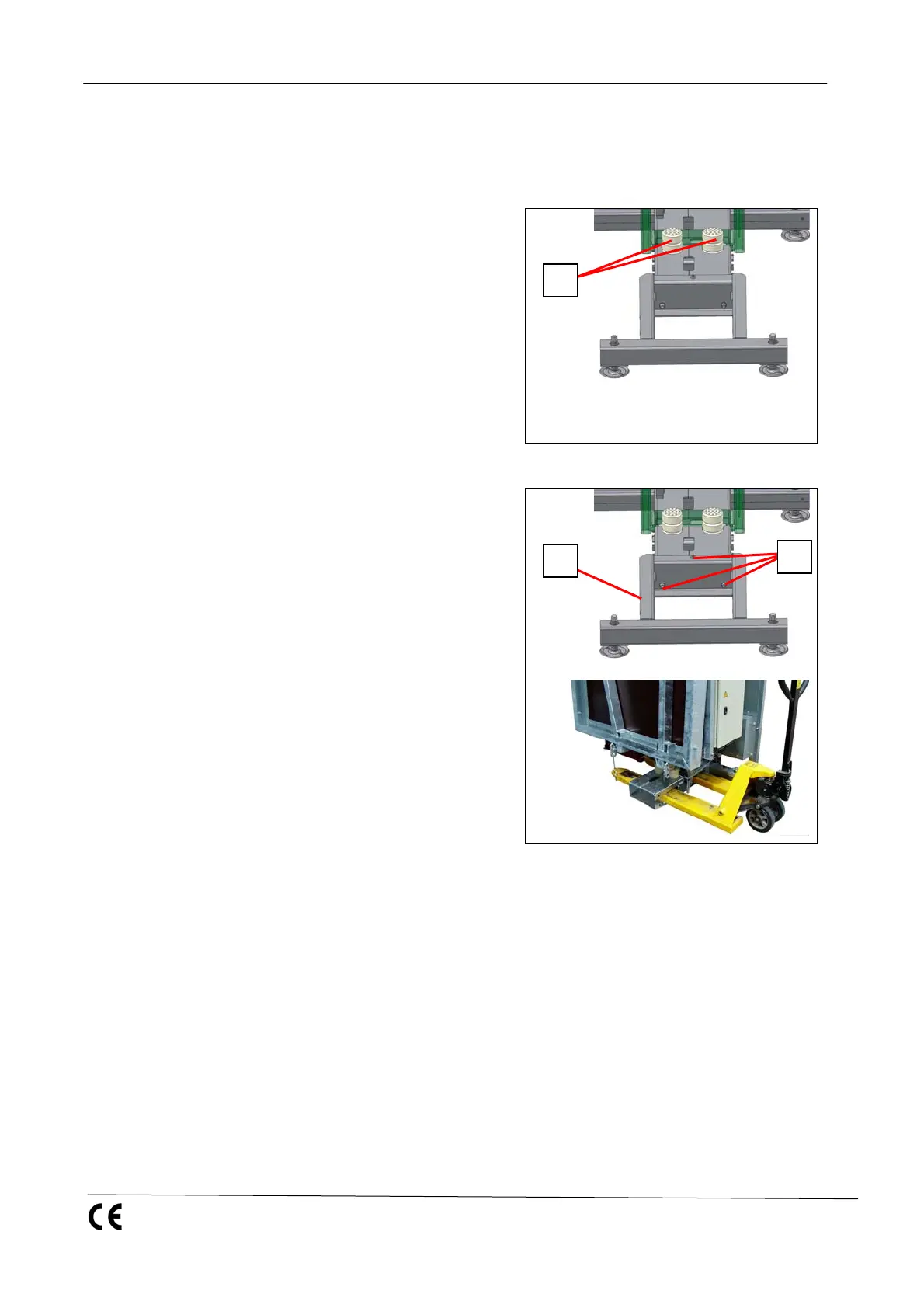

15.5.4 Remove protective buffers
NOTE
If the height needs to be further
reduced, the protective buffers can
be removed and subsequently the
base unit can be carefully lowered
onto the frame.
Loosen the buffer bolt. Re-
move buffers.
Slowly lower the base unit
onto the frame.
15.5.5 Unscrew foot section
Loosen the three bolts (1)
on the front-side foot sec-
tion (2).
Remove foot section.
Use pallet truck to transport
base unit to the assembly
location.
WARNING
Only use a pallet truck with ade-
quate stability and brake. Carry
out transportation over inclines
with the utmost care.
15.5.6 Installation at the assembly location
Installation at the assembly location is always carried out in reverse order
to the dismantling.
15.5.7 Inspection after assembly
Check locking pins. It is not possible to fold up the base as-
sembly.
Check all plug-in connections are connected properly.
Open and close all access points.
Make sure there is no problem with the functioning and inter-
locking.
When access ramp is opened, no travel command is possible.
1
2
1
