8 Brief description of the machine

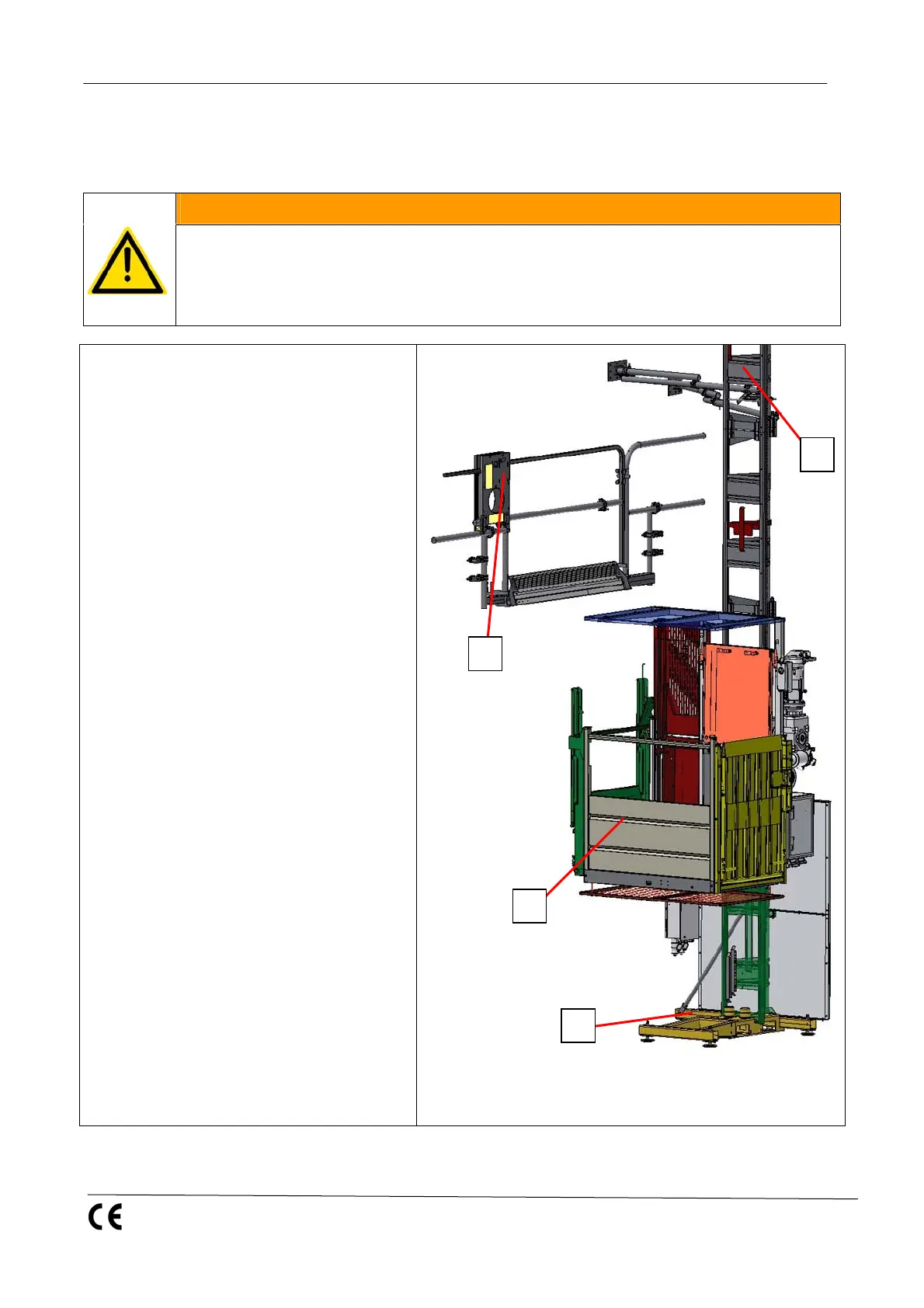

Main components
The machine consists of 3 main com-
ponents.
The base unit (1), the car (2) and the
mast (3) with the anchorage.
These components are supplemented
by the corresponding landing-level
equipment (4).
The machine is operated:
as a transport platform from the
car
as a construction hoist from the
base unit.
The machine can be stopped at any
point by simply releasing the corre-
sponding button. If landing-level bars
have been set, a landing level can be
directly approached by pressing the
landing-level stop button in the car.
If the car is to be entered or exited at
a landing level, the car must be
stopped at the same level as the cor-
responding landing levels. Any offset
between car and landing level must be
avoided.
WARNING
This brief description only provides a general overview. It does not form the ba-
sis for correct and proper operation by uninitiated persons. Operation of the
machine and training of personnel is always carried out with reference to the
detailed descriptions in the appropriate section of this manual.
