Function
36
1.10 GB (2019/02/28)

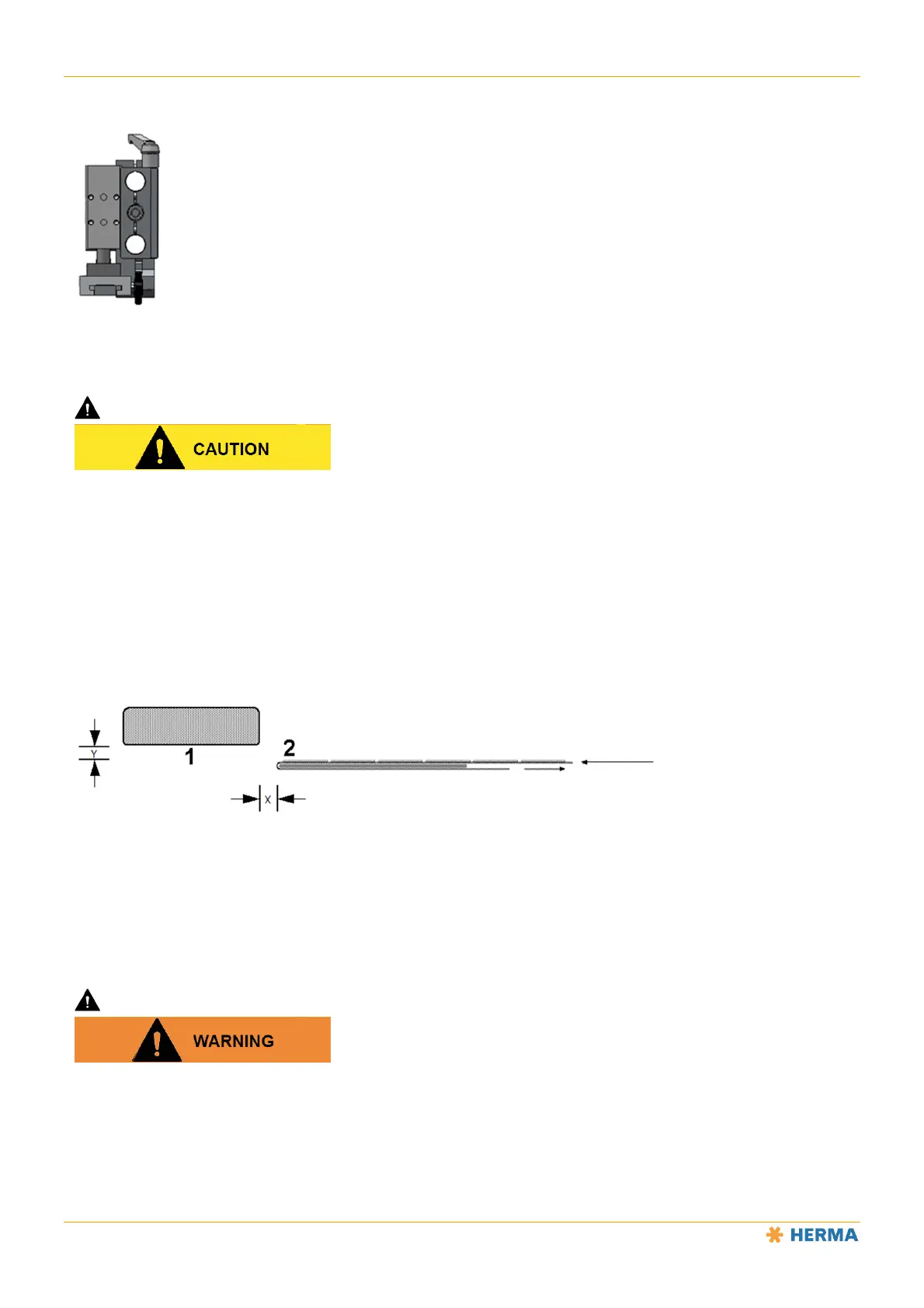

Transfer Systems
Depending on the application, one of a range of different telescoping units (linear units) may be installed in your
machine. These units require no maintenance.
Observe the following:
Risk of crushing!
The pneumatic operating pressure must not exceed 5 bar. Risk of crushing!
Positioning the Label on the Suction Plate
The label must be positioned in the centre of the suction plate.
Positioning the Linear Unit
Adjust the distance (x) between the suction plate 1 and the dispensing beak 2 to approx. 1mm • 0.04".
Adjust the distance (y) from the suction plate to the label surface to between 1/10mm and 2/10 mm or
0.004" and 0.008” (see figure below).
Drive/Transport Roller
Risk of crushing
Do not reach into the feed-in area of the transport roller when the applicator is switched on! Body parts can be
crushed or pulled in.
