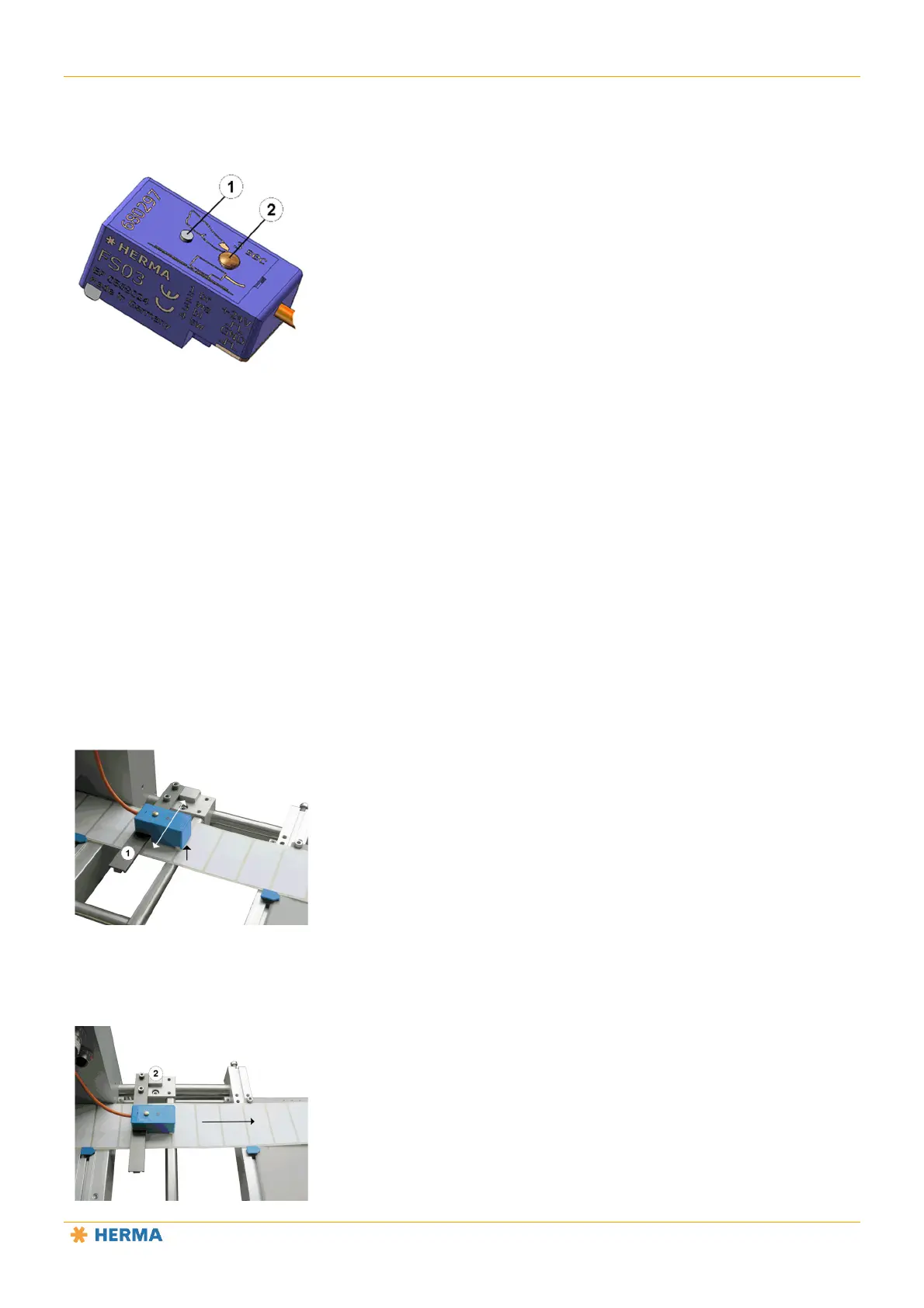

Label Sensor: FS03
1 – LED
2 – Set button
The material number of the label sensor with plug is printed on the housing.
The FS03 label sensor is a self-learning unit, suitable for paper labels as well as electrically conductive labels
(metalised or aluminium covered). The unit is set such that the sensor is highly active when on the label (1 signal
on the label). The LED of the unit indicates the current switching output, i.e., it lights up when on the label and is
off when in the gap between the labels.
The FS03 comprises the operating modes “work mode” and “setting mode”, described below.
All adjustments, if required, are effected with the help of a single set button. States, results, and signals are
indicated via an LED which can light up red or green.
Positioning the Sensor at a Right Angle to the Direction of Label Movement
Gently lift the front of the label sensor and slide it to the desired position on rail 1.
Positioning the Label
