Documentation HERMA 500
1.10 GB (2019/02/28)
59

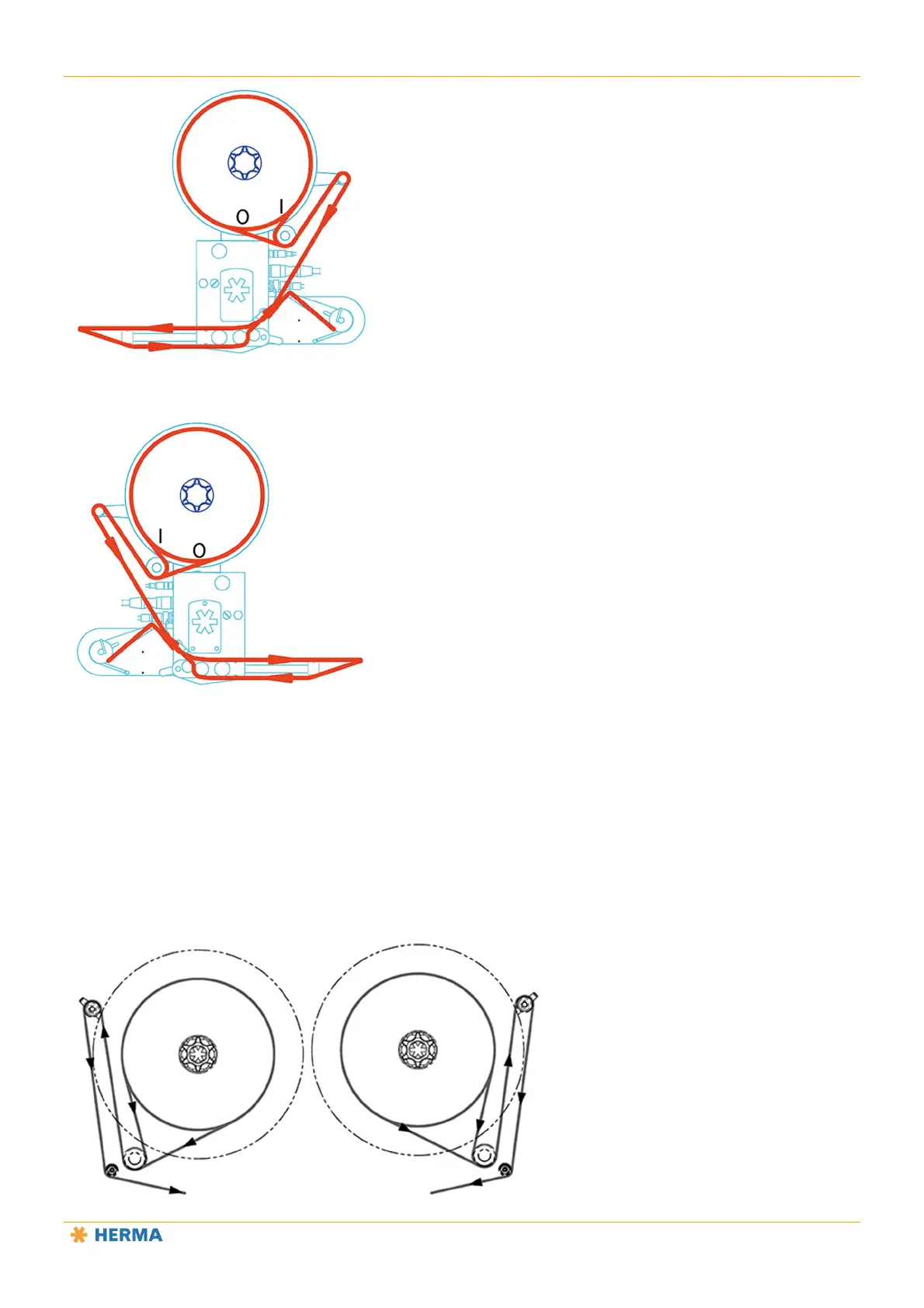

Right-hand orientation
Left-hand orientation
Winder System
Beyond these standard configurations, further distinctions are made between versions that employ a winder
system (motorised unwinder and backing paper take-up unit, with or without loop module). These configurations,
including the label path, are shown in the figures below.
Left-hand/right-hand unwinder version
