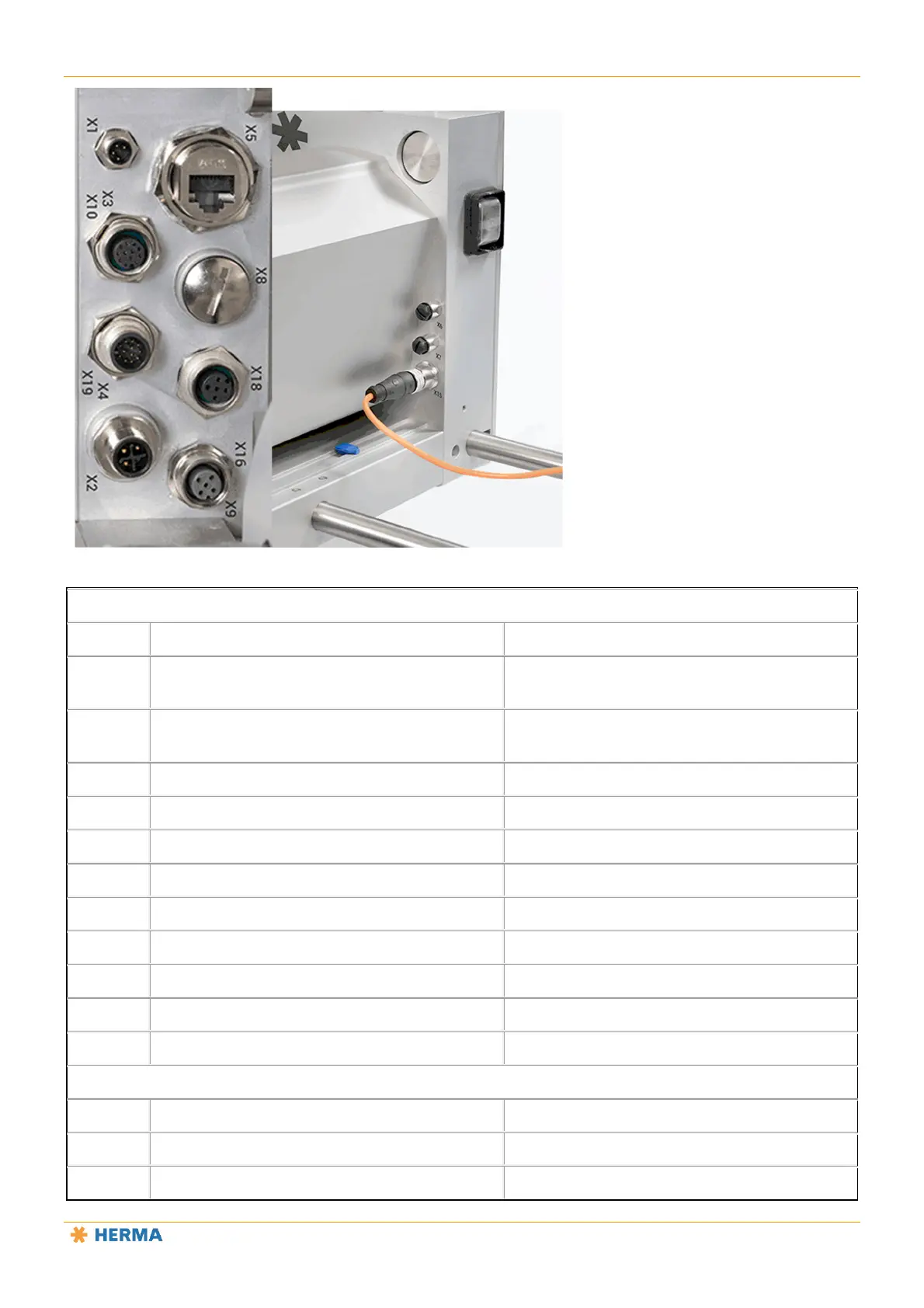

Connections on the side of the housing
X1 Master encoder IO and IE
X3
Industrial Ethernet (fieldbus), in conjunction with
X4
IE
X4
Industrial Ethernet (fieldbus), in conjunction with
X3
IE
X10 Standard I/O signals IO
X19 Additional I/O signals IO
X2 Power IN IO and IE
X5 Web (Ethernet TCP / IP) IO and IE
X8 Power OUT (for winder only) IO and IE
X18 CAN extension IO and IE
X16 Applicator start IO and IE
X9 I/O signals (industrial Ethernet) IE
Connections on the front of the housing
X6 Transfer system IO and IE
X7 Printer IO and IE
X15 Label sensor IO and IE
