4.3 Hilow Drive Motor Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Affinity® Three Birthing Bed and Affinity® Four Birthing Bed Page 4 - 9
Service Manual (MAN272 REV 4)
4

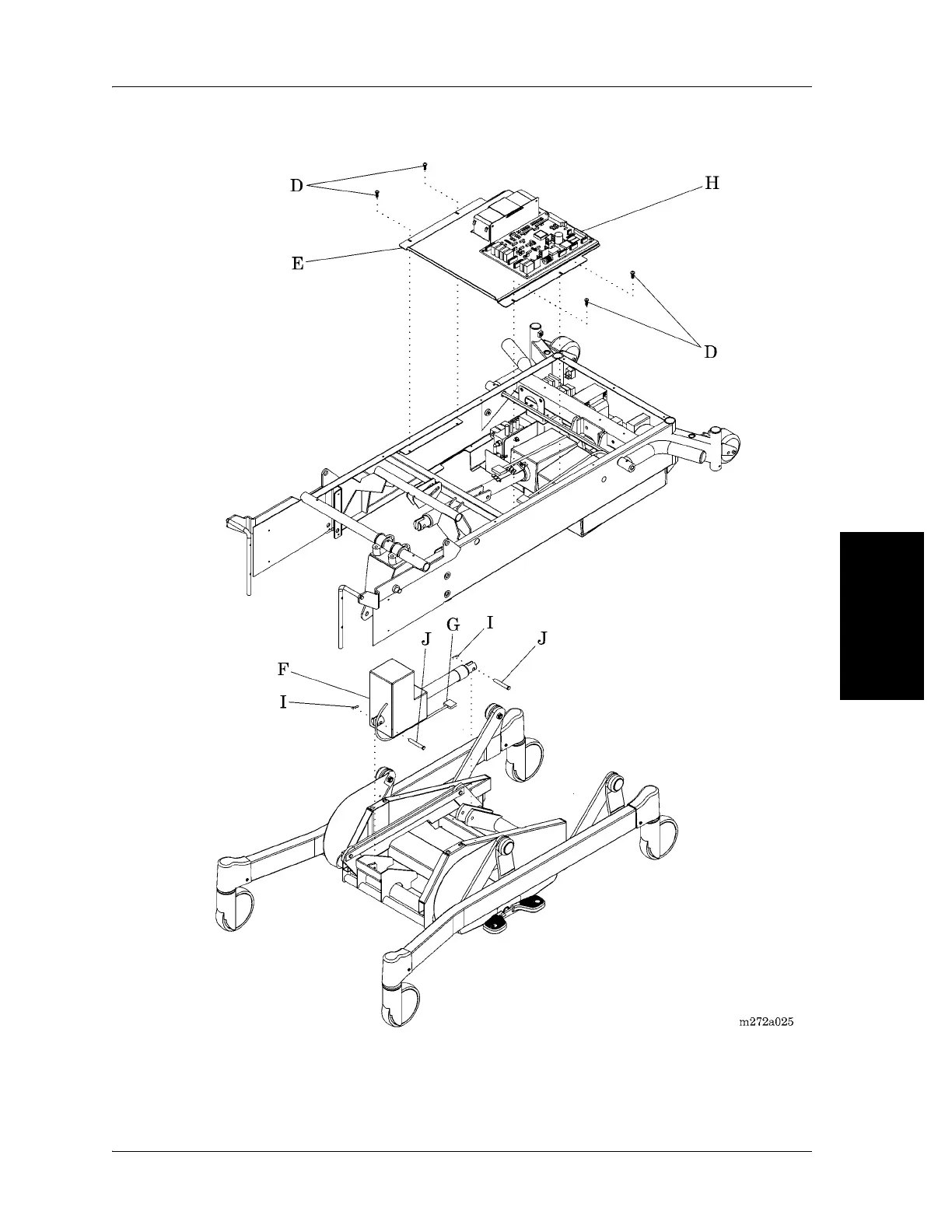

Figure 4-4. Hilow Drive Motor Assembly
14. Using the needle nose pliers, remove two cotter pins (I) from the two clevis
pins (J) that secure the hilow drive motor assembly (F) to the bed frame.
