Chapter 6 Measurements

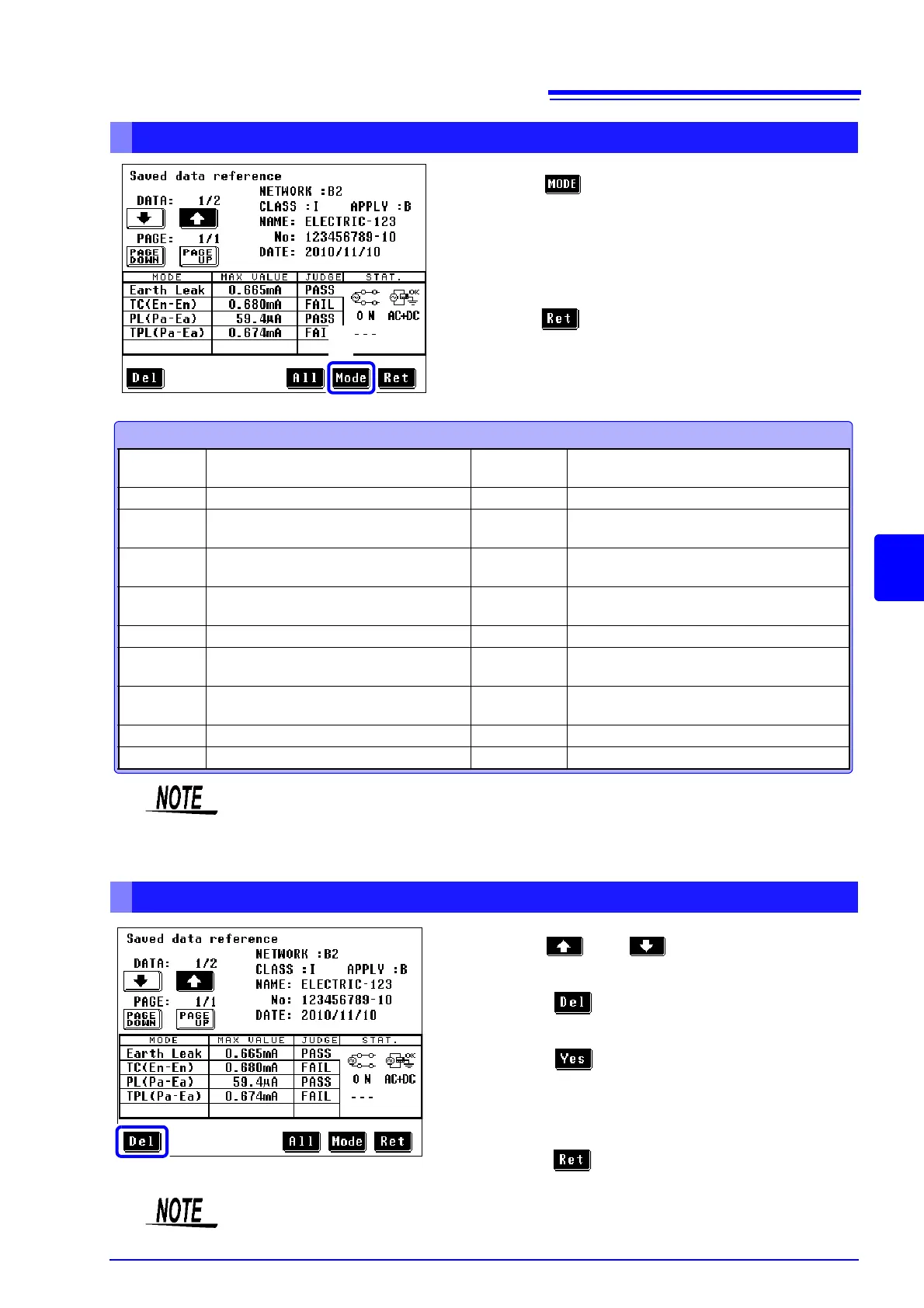

Selecting Saved Measurement Data
1. Press to switch the mode used for the data
unit.
On the sample screen, the mode changes in the fol-
lowing order:
Earth Leak
 TC(En-En)  PL(Pa-Ea) 
TPL(Pa-Ea).
2. Press to return to the system screen.
Measurement data reference screen
List of measurement modes (varies depending on network types)
Earth Leak Earth leakage current PL (Pa-Ea)
Patient leakage current
(Patient connection - Earth)
En-Ea Leak Enclosure - Earth leakage current PL-SIPSOP Patient leakage current (SIP/SOP)
En-En Leak
Enclosure - Enclosure
leakage current
PL (F) Patient leakage current (F-type applied part)
En-Li Leak Enclosure - Line leakage current PL (MP)
Patient leakage current
(Metal accessible part)
Pat.Leak I Patient leakage current I TPL (Pa-Ea)
Total patient leakage current
(Patient connection - Earth)
Pat.Leak II Patient leakage current II TPL-SIPSOP Total patient leakage current (SIP/SOP)
Pat.Leak III Patient leakage current III TPL (F)
Total patient leakage current
(F-type applied part)
TC (En-Ea) Touch current (Enclosure - Earth) TPL (MP)
Total patient leakage current
(Metal accessible part)
TC (En-En) Touch current (Enclosure - Enclosure) Pat.Aux. Patient auxiliary current
TC (En-Li) Touch current (Enclosure - Line) Free Free current measurement
1
About data unit sorting
The sort function rearranges data unit numbers in sequence based on the equip-
ment name (1st character (A, B, C, ..., Z, 0, 1, 2, ..., 9, -), 2nd character, ..., 12th
character), and control number. When a new data unit is added, the data units
are sorted again.
Deleting Saved Data
1. Use and to select a data unit to
delete.
2. Press .
A confirmation screen appears.
3. Press to delete the selected data unit.
To delete two or more data units, repeat steps 1
through
3.
4. Press to return to the system screen.
Measurement data reference screen
2
The initialization screen can be used to delete all saved data.
See "7.3 Initializing the Instrument" (p. 121)
