10.14 Measurement Networks
275
8
9
Chapter 10 Specifications
10

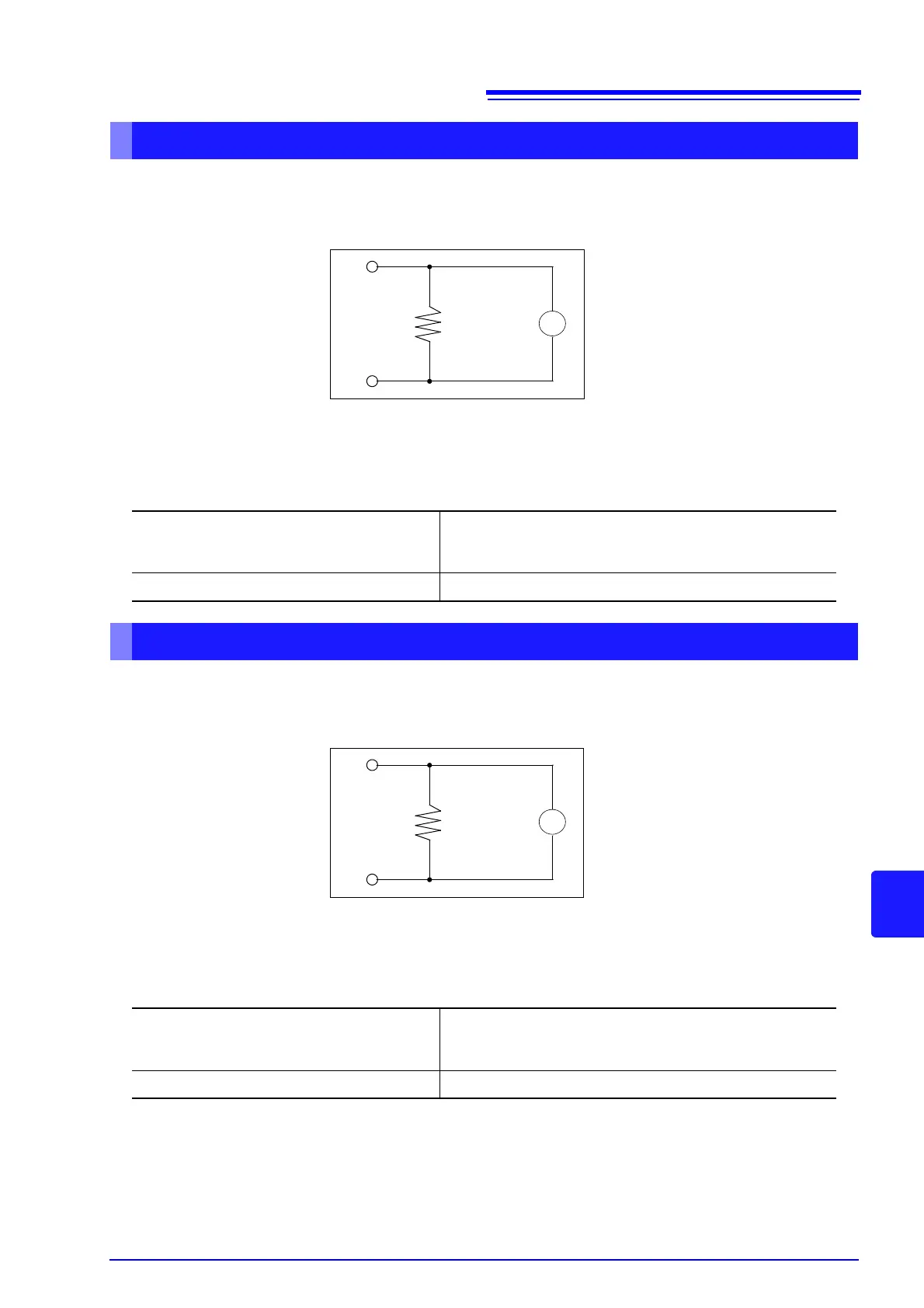

Network E is a general-purpose measurement network.
The circuit configuration is as follows :
This network can be used to perform leakage current tests in compliance with
applicable standards.
Network F is a general-purpose measurement network.
The circuit configuration is as follows :
This network can be used to conduct leakage current tests in compliance with
applicable standards.
Network E (General-purpose 1)
Network (1 k) with 1 k
1 k± 1%
Ｖ
Measurement circuit configuration
Network with 1 k
Impedance: 1 k (0.5% (DC to 1 MHz)
(when input protective fuse is short-circuited)
Element tolerance Resistance : ± 1%
Network F (General-purpose 2)
2 k± 1%
Network (2 k) with 2 k
Ｖ
Measurement circuit configuration
Network with 2 k
Impedance : 2 k (0.5% (DC to 1 MHz))
(when input protective fuse is short-circuited)
Element tolerance Resistance : ± 1%
