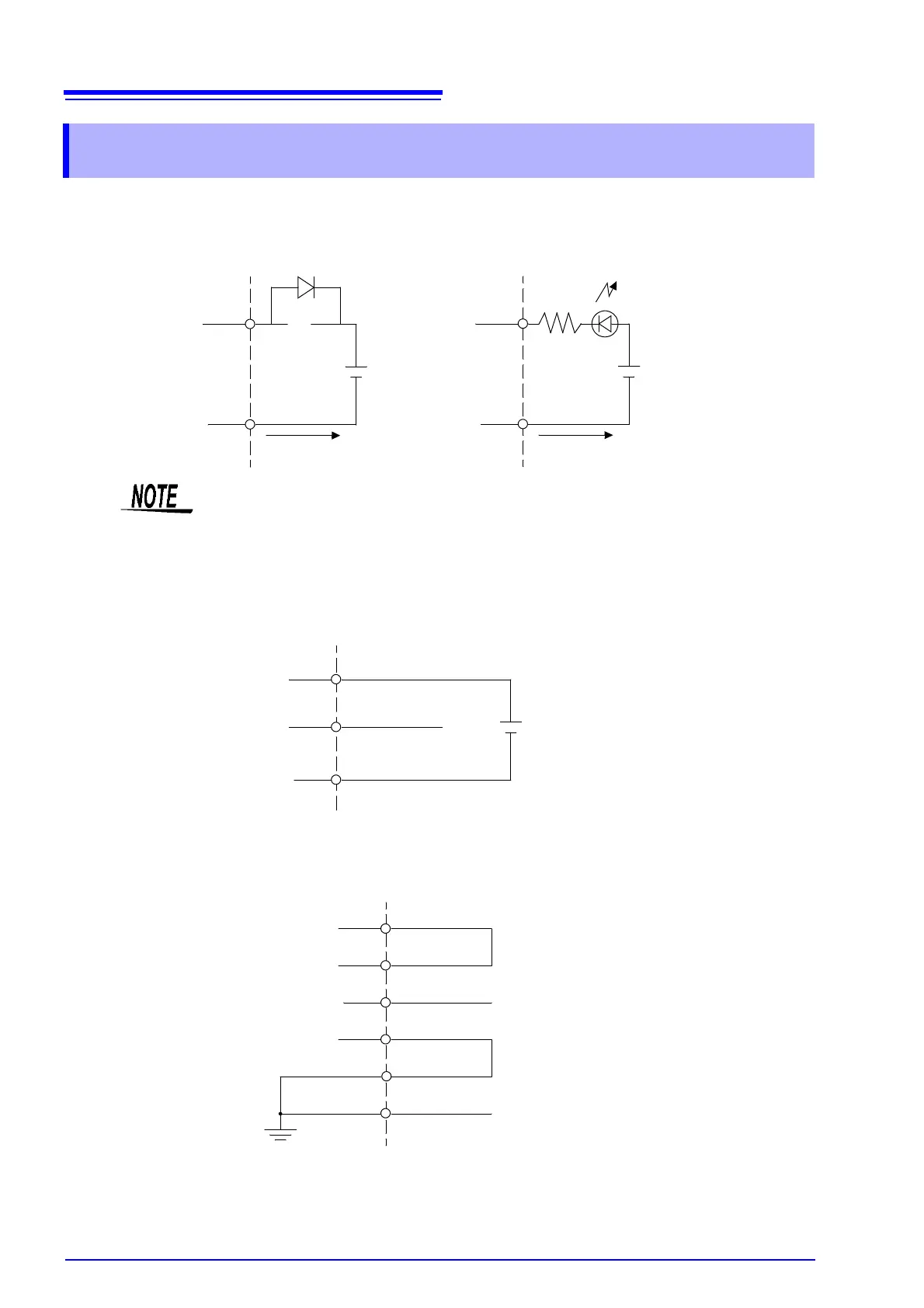

9.6 Example of Output Signal Connection
254
(1) When not using the INT.DCV, INT.GND, and EXT.DCV terminals
(2) When using the EXT.DCV and EXT.COM terminals
High (5 to 24 VDC) and Low signals can be obtained.
(3) When INT.DCV and EXT.DCV, and INT.GND and EXT.COM are short-circuited
High (5 VDC) and Low signals are obtained, respectively.
9.6 Example of Output Signal Connection
Output
24 V max
EXT.COM
50 mA max
Output
24 V max
50 mA max
[Relay]
[LED lamp]
EXT.COM
When using a relay, be sure to install a diode for absorbing counter-electromo-
tive force.
EXT.DCV
24 V max
Output
[Connection of negative-logic output]
EXT.COM
Output
INT.DCV
Output
EXT.COM
INT.GND
INT.GND
EXT.DCV
GND
Short-circuited
Output
Short-circuited
