Hioki ST5540 - Panel Load Function at EXT I;O Start

9.5 Timing Chart
253
8
9
Chapter 9 External Control
Saved measurement conditions can be read and measurement conducted
according to the conditions read.
The number of the panel to be read is specified by LOAD0
through LORD4
before START signal input.
See "Table of LOAD0 - LOAD4 control and corresponding panel numbers" (p. 248)
TEST , PASS , U-FAIL , L-FAIL and T-FAIL are only output in automatic measure-
ment.
T5 Judgement result output time 2 s Until measurement completion of next mea-
surement item
T6 Time from the completion of automatic
measurement to next measurement
start signal input
0 ms
–
Description
Time
MIN MAX

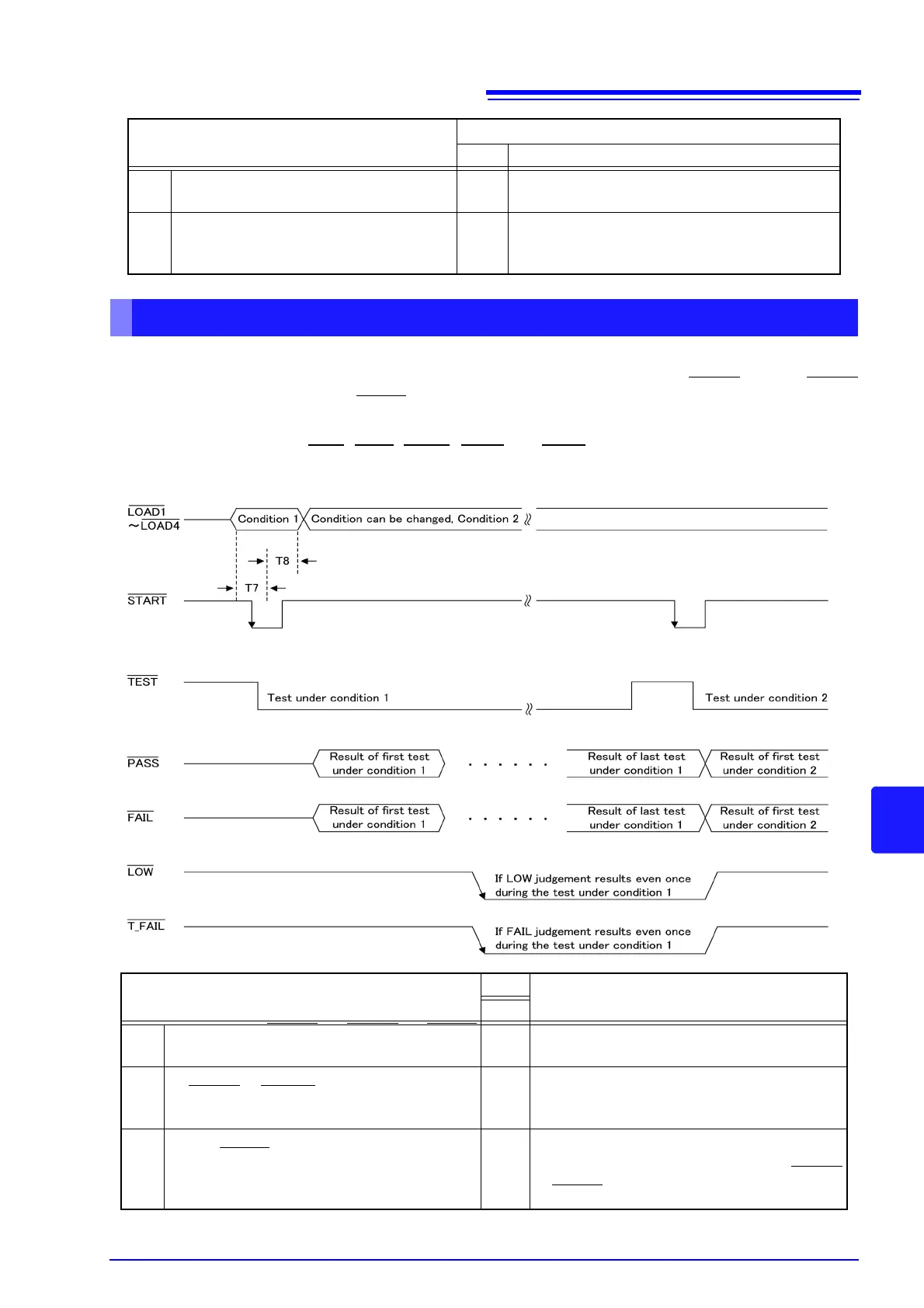

Panel load function at EXT I/O start
Description
Time
Explanation
MIN
T7 From setting LOAD0
to LOAD4 to START
input
1 ms Low level must be held for at least 1 ms
before starting.
T8 From START
input to changing the condition
in LOAD0
to LOAD4 (change of condition for
next measurement)
1 ms After START signal input, the panel load con-
dition must be held for at least 1 ms.
T9 From completion of automatic measurement
to next START
input
0 ms When the condition is the same as T6, but
the panel to be loaded is changed for mea-
surement, it is necessary to change LOAD0
to LOAD4 in advance.
