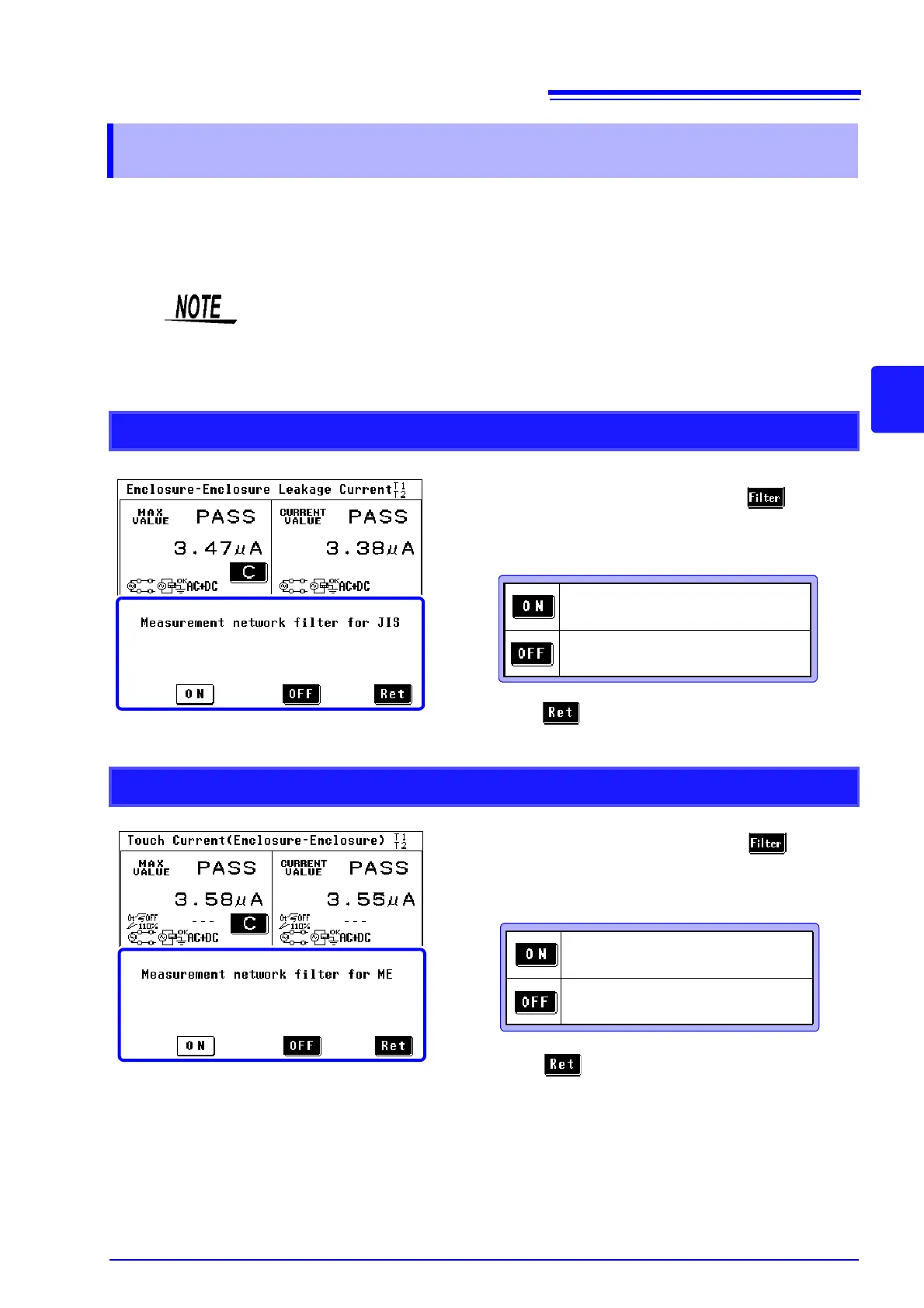

4.5 Setting the Filter
59
3
Chapter 4 Settings
4
(when selecting network A, B1, B2 or C)
Turn the filter for the measurement network ON and OFF or change the setting of the filter.
In manual measurement, the measurement value can be checked while switching the filter ON and OFF.
4.5 Setting the Filter
When selecting network A , B1 or B2 :The filter is switched ON and OFF.
When selecting network C
:The filter is set to ON1-U2/ON1 -
U1/ON2-U3/ON2-U1 or OFF.
When selecting network D, E, F or G
: No setting for filter.
When selecting network A
When selecting network B1, B2
1. On the measurement screen, press to
display the network filter setting screen.
2. Change the setting of the filter for the network.
3. Press to return to the measurement screen.
Sets the multi-frequency network.
Sets the single-frequency network.
1. On the measurement screen, press to dis-
play the network filter setting screen.
2. Change the setting of the filter for the network.
3. Press to return to the measurement screen.
Sets the network with a frequency
characteristic.
Sets the network with only 1 k
non-inductive resistance.
