7.12 Interface Setting (For Communication and Printing)
134

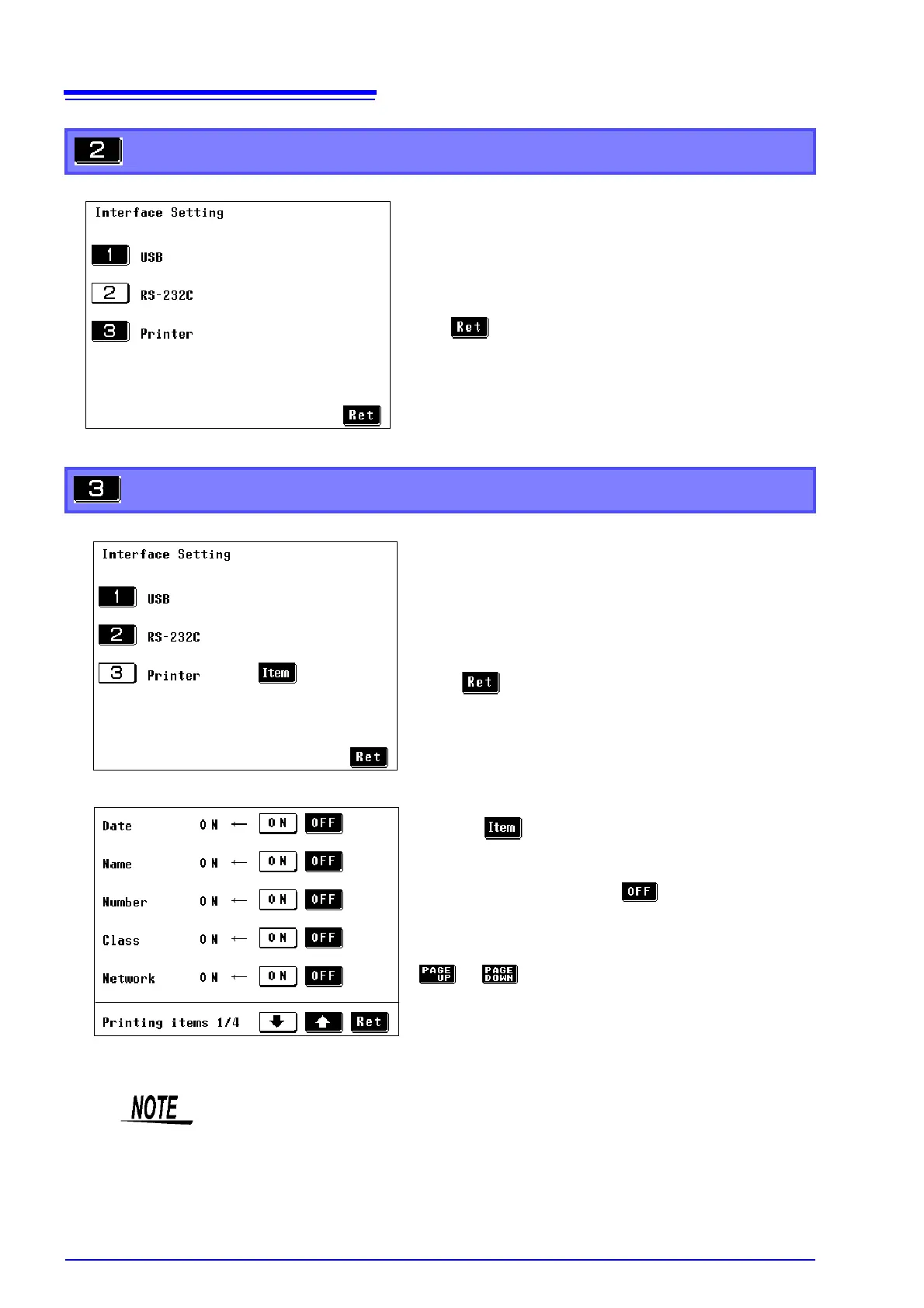

When "RS-232C" is selected
The communication condition is fixed.
For details of the method of using the interface:
See "Chapter 8 Controlling the Instrument From a Computer
(RS-232C, USB interface)" (p. 139)
Press to return to the system screen.
When "Printer" is selected
Data can be printed by connecting the optional 9442
Printer to the RS-232C port on the rear panel of the main
instrument. When the printer is connected, RS-232C or
USB cannot be used to communicate with a PC.
See "Setting up and connecting a printer" (p. 108)
Press to return to the system screen.
Selection of printing items
Pressing displays a list of printing items for selec-
tion.
It may not be necessary to print some items in repeated
printing. In such cases, press to cancel the printing
of selected items.
To show setting items not displayed on the screen, press
or . Set each item on the screen.
The following printing items can be set to ON or OFF.
Date of measurement, equipment name, control number, class, network, mea-
surement mode, filter setting, target current, upper limit value,lower limit value,
maximum value, judgement result, power supply polarity, and fault condition,
Applied status, SW.
All items are turned ON for printing by default.
