2.2 Screen configuration outline
28
The following describes shared measurement screen displays.

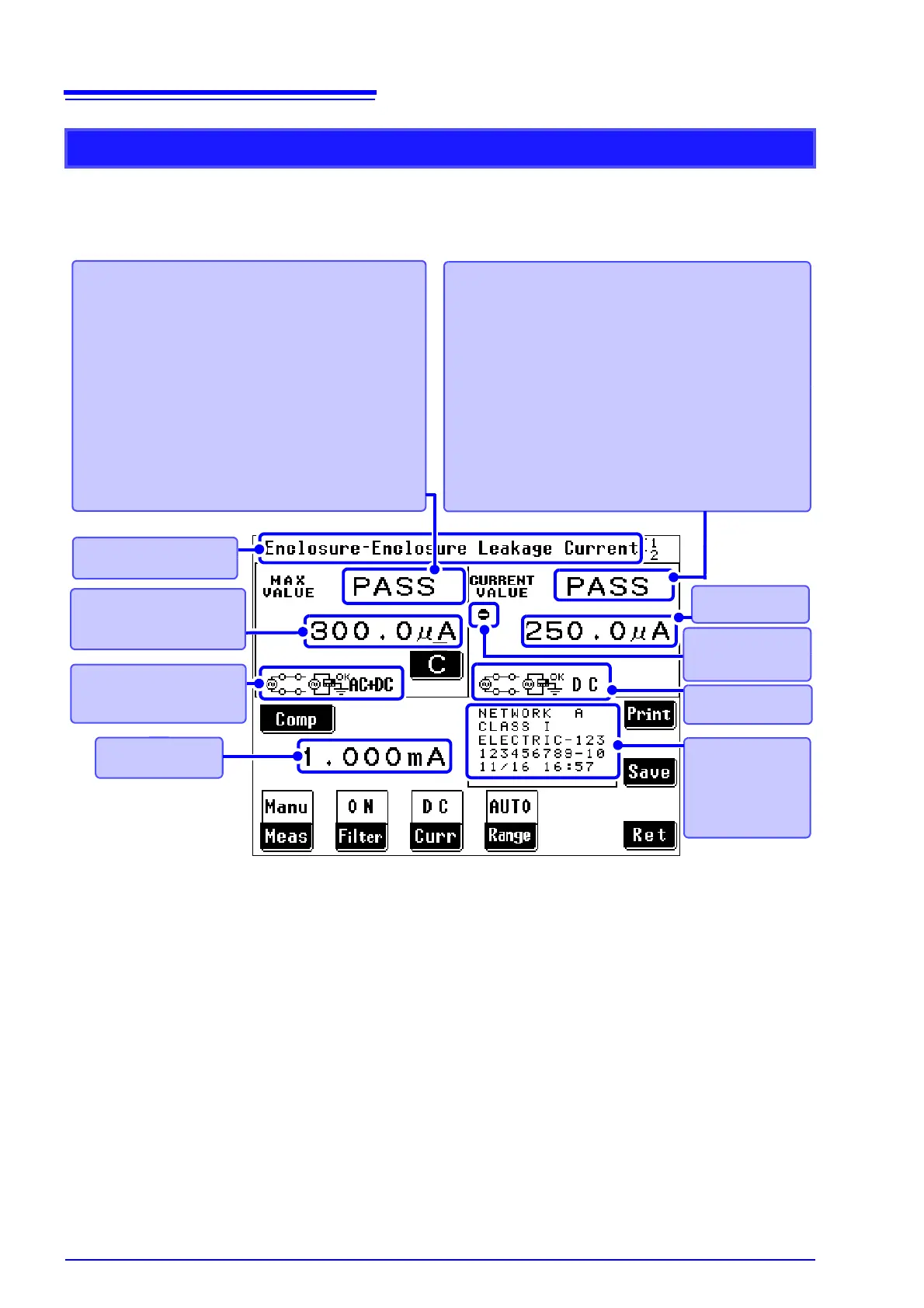

(Screen example : Earth leakage current measurement screen)
Shared measurement screen displays
Result of comparison between current measurement
value and allowable value.
PASS
: Current measurement value is equal to or
less than the Upper limit value.
FAIL
: Current measurement value is greater than
the Upper limit value.
LOW
: Current measurement value is equal to or
less than the Lower limit value.
Range Up
:
Measurements exceed the guaranteed accuracy range.
(PASS or FAIL is not determined)
Range Down:
Measurements drop below the guaranteed accuracy range.
(PASS or FAIL is not determined)
Currently set
allowable value
Measurement conditions
at maximum value
acquisition
Maximum measurement
value in same
measurement item
Current measurement
mode
Result of comparison between maximum value and
allowable value.
PASS
: Maximum value is equal to or less than
the Upper limit value.
FAIL
: Maximum value is greater than the Upper
limit value.
LOW
: Maximum value is equal to or less than
the Lower limit value.
Range Up
:
Measurements exceed the guaranteed accuracy range.
(PASS or FAIL is not determined)
Range Down:
Measurements drop below the guaranteed accuracy
range. (PASS or FAIL is not determined)
Current mea-
surement value
Selected network
Grounding class
Equipment name
Control number
Date
Current measure-
ment conditions
Measurement screen (manual measurement)
Current measure-
ment value is
minus
