4.6 Setting the Allowable Value
62
1. On the measurement screen, press to
display the allowable value setting screen.
2. Press to activate the allowable value
setting condition for normal condition.
3. Enter a numeric value by using numeric keys
( through , and ).
To correct an input error, press the Clear
( ) key, then reenter the input.
4. Enter the unit of allowable value.
Pressing a Unit key ( , ) immedi-
ately confirms the numeric input.
5. Press to set factor setup status for set
allowable value.
6. Enter a numeric value by using numeric keys
( through ).
To correct an input error, press the Clear
( ) key, then reenter the input.
7. Pressing the Unit key ( ) immediately
confirms the factor input.
8. Press to activate the allowable value
setting condition for fault condition.
9. In the same way as for setting the normal con-
dition, make the necessary settings by follow-
ing steps 3 through 7.
10. Press to return to the measurement
screen.

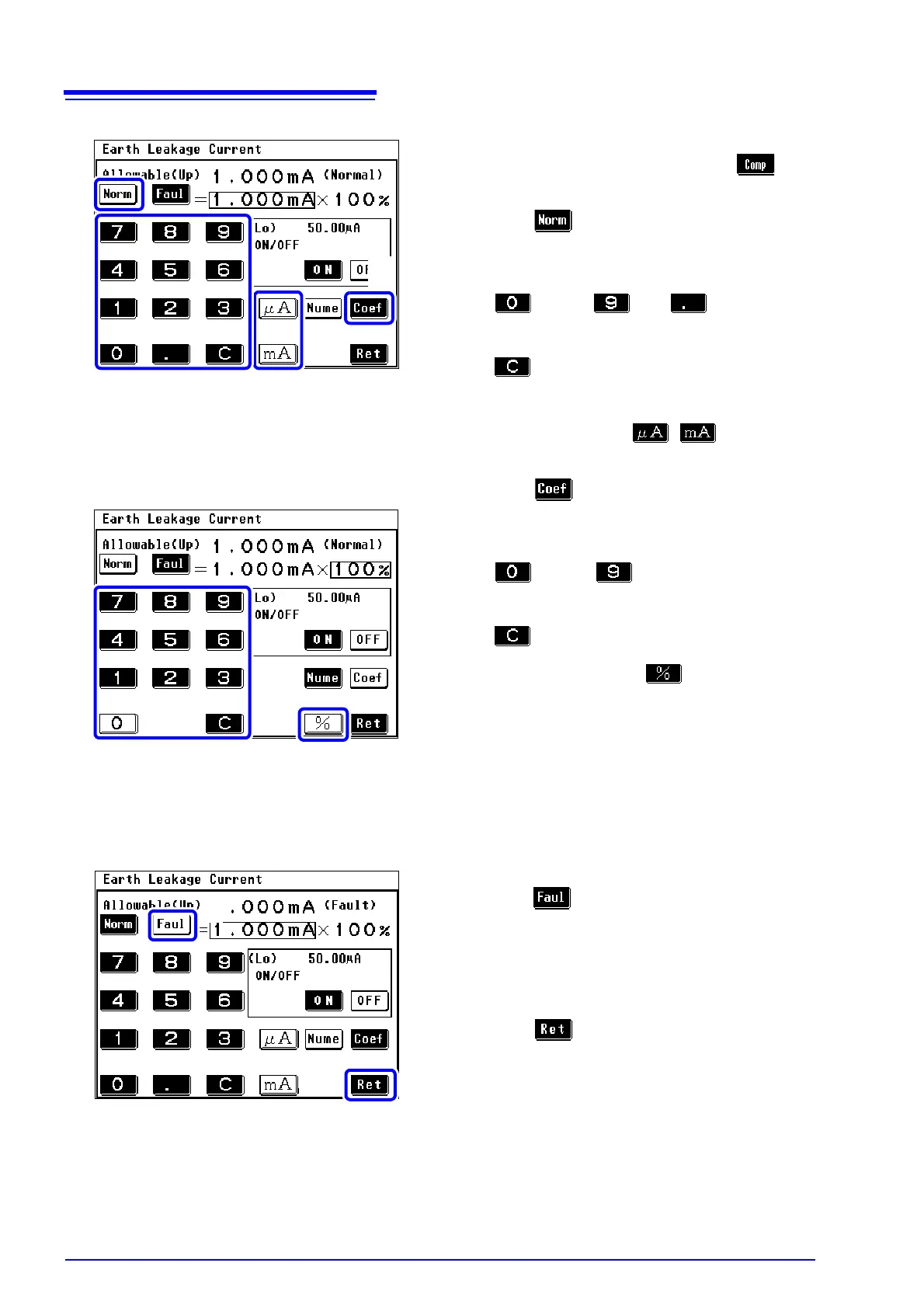

Allowable value setting screen
(Normal condition, numeric value setting mode)
Allowable value setting screen
(Normal condition, factor setting mode)
3
2
4
6
7
Allowable value setting screen
(fault condition, numeric value setting mode)
8
10
5
