E1 Series Servo Drive User Manual Basic Function Settings Before Operation
6-32 HIWIN MIKROSYSTEM CORP.

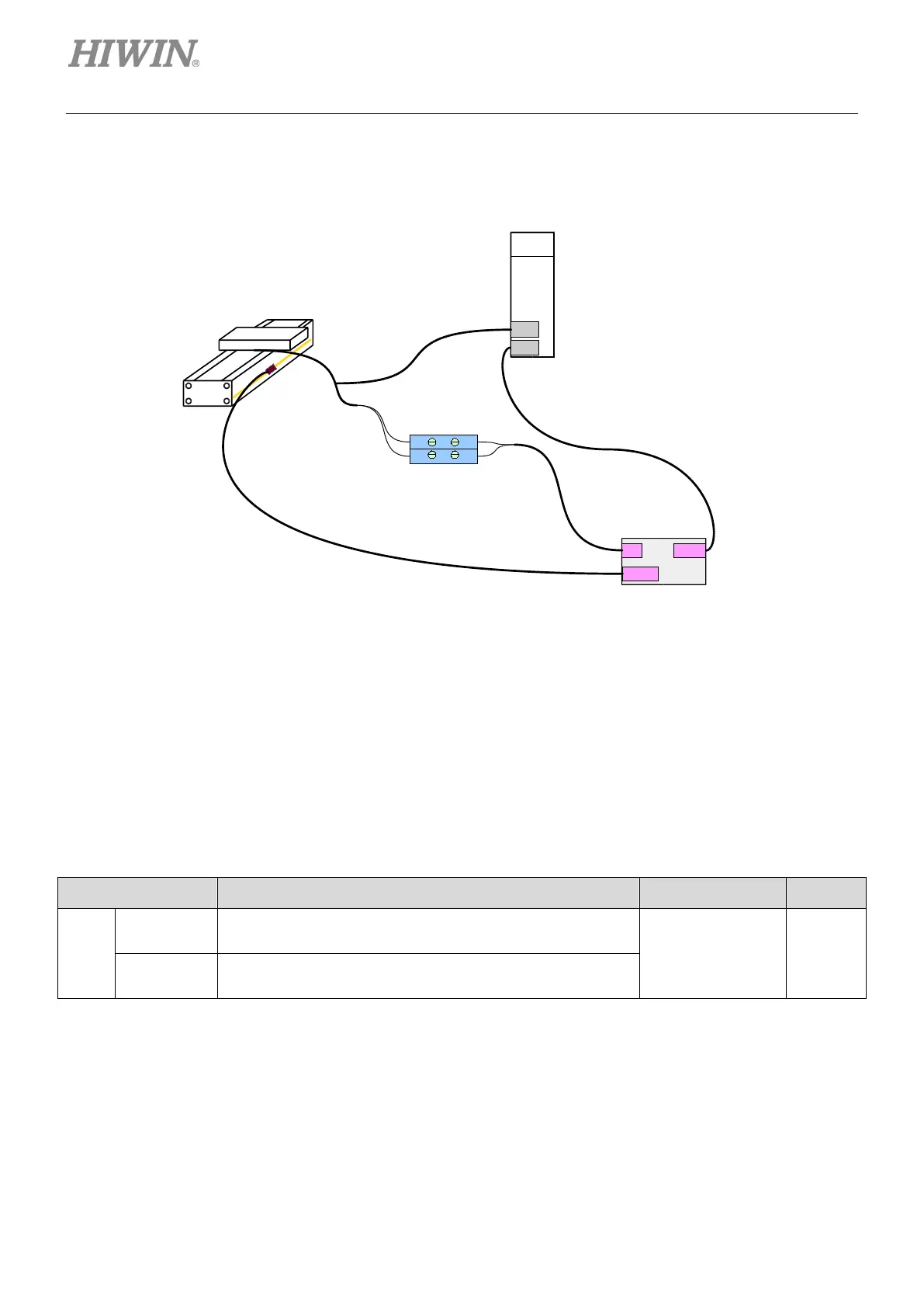

When HIWIN LM is used, if the distance between ESC and the servo drive is over 0.5 m, the thermal
wires may not be connected to the ESC due to its lengths. At this time, use ESC temperature cable to
connect to the ESC, please refer to the figure below.
Figure6.14.2
Note:
(1) When HIWIN LM is used, the thermal wires are included in the power cable. Connect the thermal wires to the TS connector
on ESC.
(2) When HIWIN DM is used, the thermal wires are included in the encoder cable. Connect the encoder cable to the Encoder
connector on ESC.
(3) For cables for ESC, please refer to section 16.1.4.
Related parameter
Table6.14.1
Parameter Description Effective Category
Pt008
t.0
(Default)
Do not detect over temperature by thermal sensor.
After power on Setup
t.1 Detect over temperature by thermal sensor.
Note:
The supported thermal sensor is positive temperature coefficient (PTC) thermistor.
Motor power
cable (thermal
wires included)
LM
ESC
E1
Series
TS
CN7
CN2
Comm.
Motor thermal
wires
ESC encoder communication cable
Motor power
cable (U,V,W)
Encoder
ESC encoder extension cable
Encoder
T+ T+
T- T-
ESC temperature
cable
Accessory pack
Terminal block
PA-8-H-2
