E1 Series Servo Drive User Manual Panel Operation
14-8 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
14.2.2 Setting function selection parameter

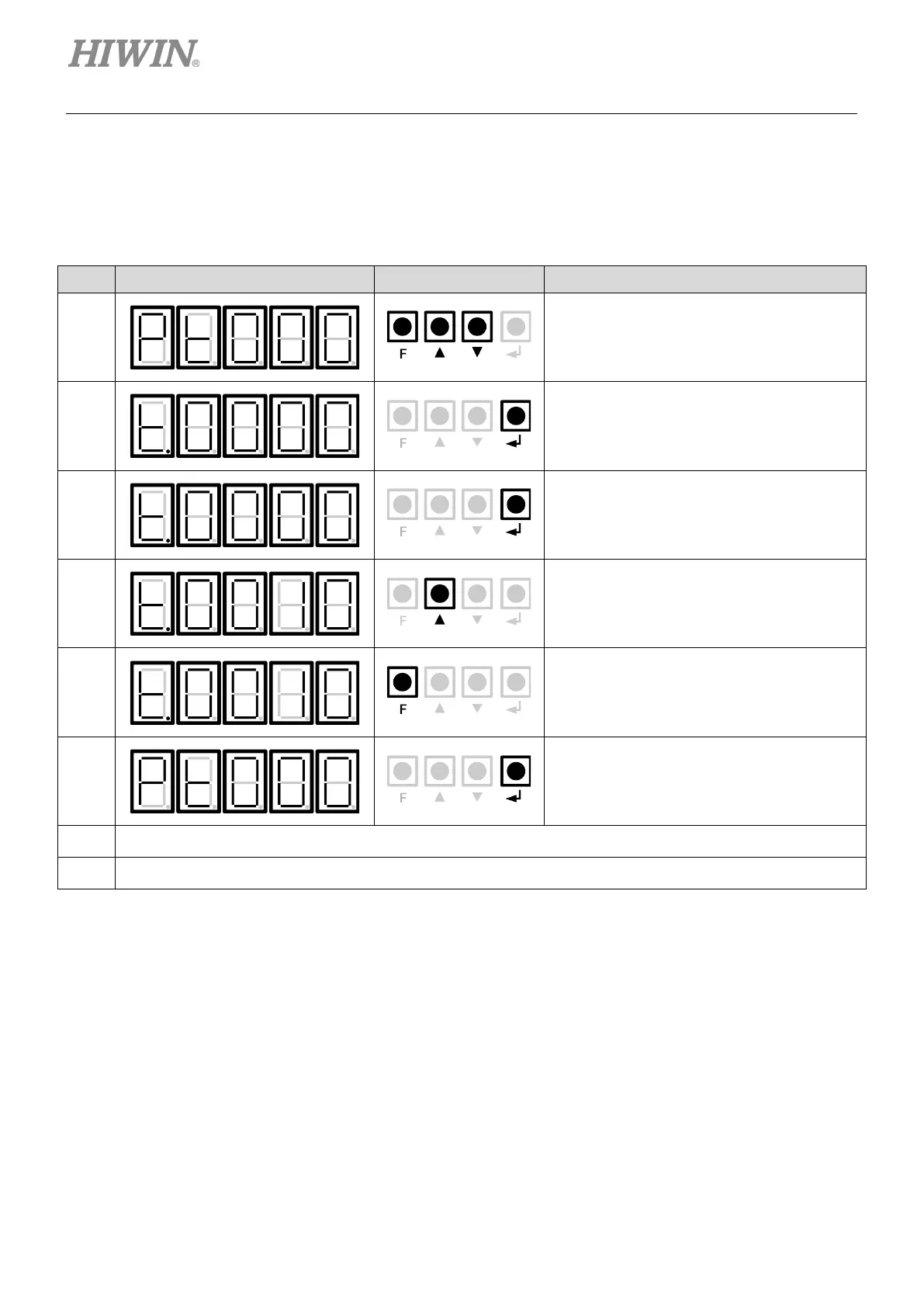

Table 14.2.2.1 describes how to change from velocity mode to position mode via panel.
Table14.2.2.1
Step Display Key Operation
1
Press F
key to go to parameter setting
mode. If th
e displayed parameter is not
Pt000, press UP or DOWN
key to display
Pt000.
2
Press DATA/SHIFT
key for one second to
display the current setting value of Pt000.
3
Press DATA/SHIFT
key to move among
digits. If a digit is flashing, it means it is
editable.
4
Press UP key for one time to change the
setting value to t.0010 to change from
velocity mode to position mode.
5
Press F key and the value will be flashing.
After that, the control mode is changed from
velocity mode to position mode.
6
Press DATA/SHIFT
key for one second.
Then the display will return to Pt000.
7 To save parameters to servo drive Flash, execute Ft001 by referring to section 14.4.2.
8 The modification will be effective after the servo drive is powered on again.
