2.2.2 Linear motor (LM)
The supported encoder types when the servo drive is used with linear motor (LM) are described in this
section.

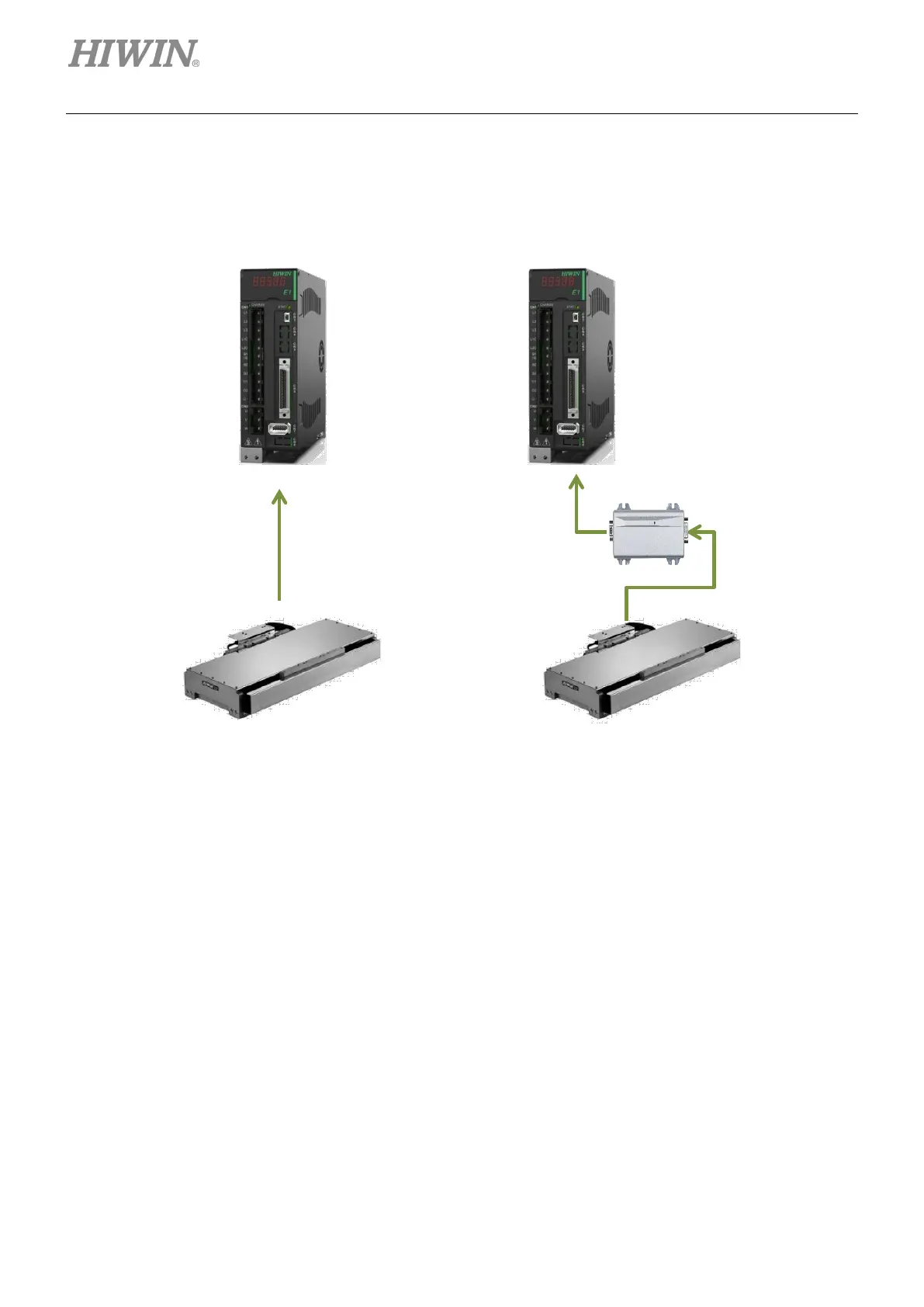

Figure2.2.2.1
Linear motor with digital (TTL) encoder (Standard)
Serial signal
ESC
Note:
(1) For information of ESC, please refer to chapter 3.
(2) For information of cables, please refer to sections 16.1.3 and 16.1.4.
Excellent Smart Cube (ESC) is required when one of
the following signals is used as feedback signal of
linear motor.
Analog (sin/cos) encoder signal
EnDat encoder (Not supported yet)
BiSS-C encoder (Not supported yet)
Digital Hall signal
Thermal sensor
