2.2 Servo drive and servo motor combination
2.2.1 Servo motor (AC)
The supported encoder types of the servo motor (AC) are described in this section.

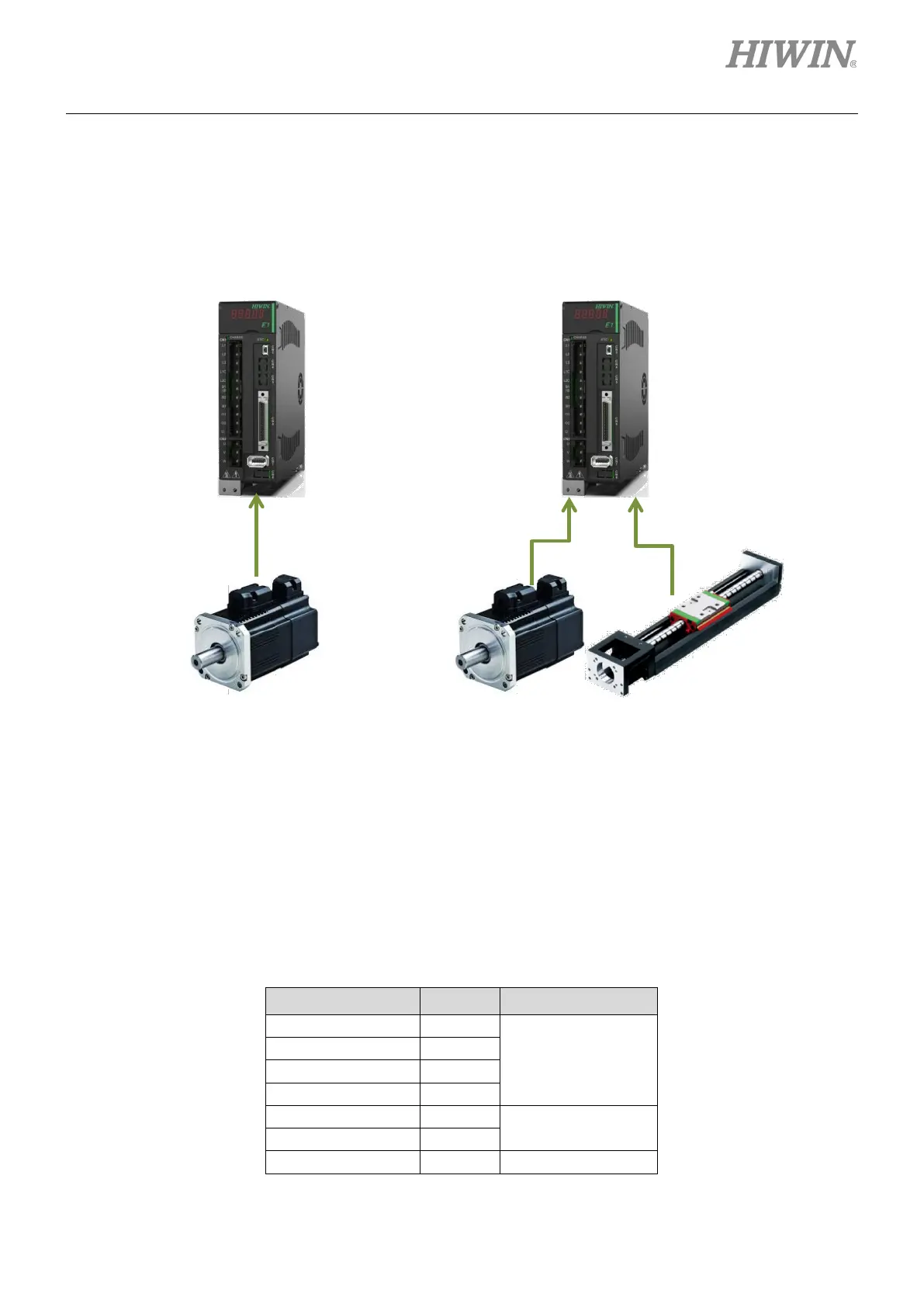

Figure2.2.1.1
The allowable combinations of servo drives and servo motors are listed in table 2.2.1.1.
Table2.2.1.1
Servo Motor Model Capacity Servo Drive
EM1-□□05 50 W
ED1□-□□-04□□
EM1-□□10
100 W
EM1-□□20
200 W
EM1-□□40
400 W
EM1-□□75
750 W
ED1□-□□-10□□
EM1-□□1K
1 KW
EM1-□□2K
2 KW
ED1□-□□-20□□
AC servo motor with serial encoder (Tamagawa)
Full-closed loop function is supported.
Serial encoder+linear digital (TTL) encoder
Note:
For information of cables, please refer to sections 16.1.1 and 16.1.2.
