Hiwin E1 Series - Related Settings of Unit Conversion

E1 Series Servo Drive User Manual Application Function
HIWIN MIKROSYSTEM CORP. 8-85
MD09UE01-1910
 Related parameters
(1) Rotation direction selection
Table8.16.5.2
Parameter Description Effective Category
Pt000
t.

0
(Default)
CCW is the forward direction.
After power on Setup
t.1 CW is the forward direction. (reverse mode)
(2) Usage of external encoder
Table8.16.5.3
Parameter Description Effective Category
Pt002
t.0

(Default)
Do not use external encoder.
After power on Setup
t.1
The external encoder moves in forward direction for motor
CCW rotation.
t.2 Reserved (Do not modify.)
t.3
The external encoder moves in reverse direction for motor
CCW rotation.
t.4 Reserved (Do not modify.)
8.16.6 Related settings of unit conversion
Set the feed value (screw lead) of external encoder (optical scale) for one motor revolution by Pt20A. Set
linear unit length (resolution) of external encoder by Pt20B. If reduction gearbox is used, set gear ratio at
motor side (full-closed loop) by Pt20C and gear ratio at load side (full-closed loop) by Pt20D.
Example:

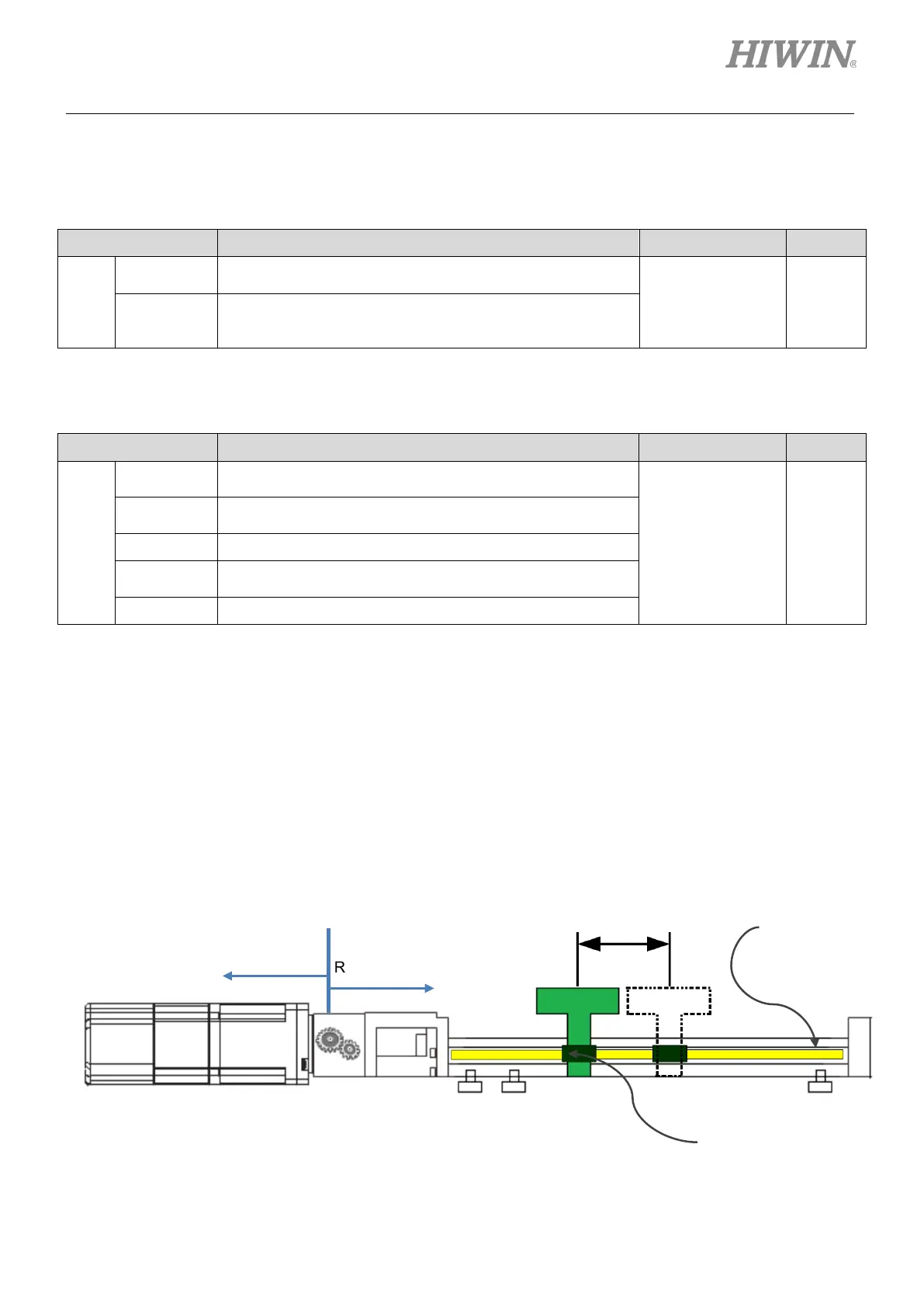

Figure8.16.6.1
Digital encoder
(reader) 5 um
External
optical scale
Reduction
gearbox
Revolutions at load side
Revolutions at motor side
The moving distance at load
side for one revolution
(Screw lead)
