E1 Series Servo Drive User Manual E1 Series Servo Drive
2-2 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
2.1 Model explanation of servo drive

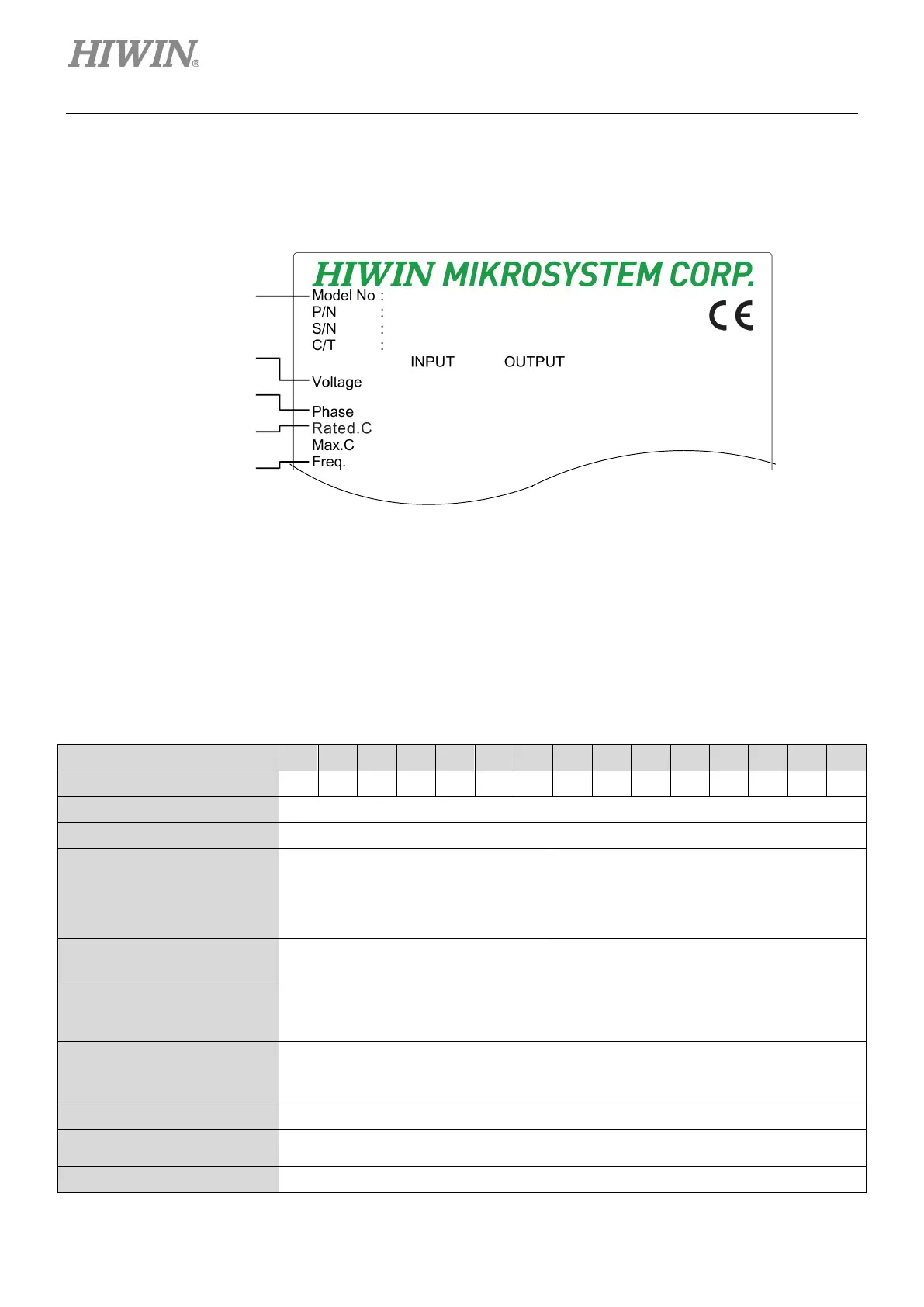

2.1.1 Nameplate
Figure2.1.1.1
2.1.2 Model explanation
The model explanation of E1 series servo drive is provided in table 2.1.2.1 For detailed functions of the
servo drive, please refer to this manual.
Table2.1.2.1
Code 1 2 3 4 - 5 6 - 7 8 9 10 - 11 12
Example E D 1 S - V G - 0 4 2 2 - 0 0
1, 2, 3: E1 Series Servo Drive ED1
4: Type S = Standard F = Fieldbus
5: Control Interface V = Voltage command and pulse
E = EtherCAT
H = mega-ulink (For HIMC motion
controller)
L = MECHATROLINK III
P = Profinet (Not supported yet)
6: Special Function
G = Gantry
N = No special function
7, 8: Rated Output
04 = 400 W
10 = 1 kW
20 = 2 kW
9: AC Power
1 = Single-phase
2 = Single/Three-phase
3 = Three-phase
10: AC Voltage 2 = 220 Vac
11:Applicable Motor
0 = AC, LM, DM
A = AC only
12: Reserved Reserved
Model number
Input/output voltage
Rated input/output current
Input/output frequency
Phase
ED1S-VN-0422-00
N/A
N/A
50/60Hz
0-333Hz
2.9 Arms
2.5 Arms/3.5 Apk
1/3Ø
3Ø
200-240VAC
240VAC max.
