Hiwin E1 Series User Manual

E1 Series Servo Drive User Manual Appendix
HIWIN MIKROSYSTEM CORP. 16-3
MD09UE01-1910

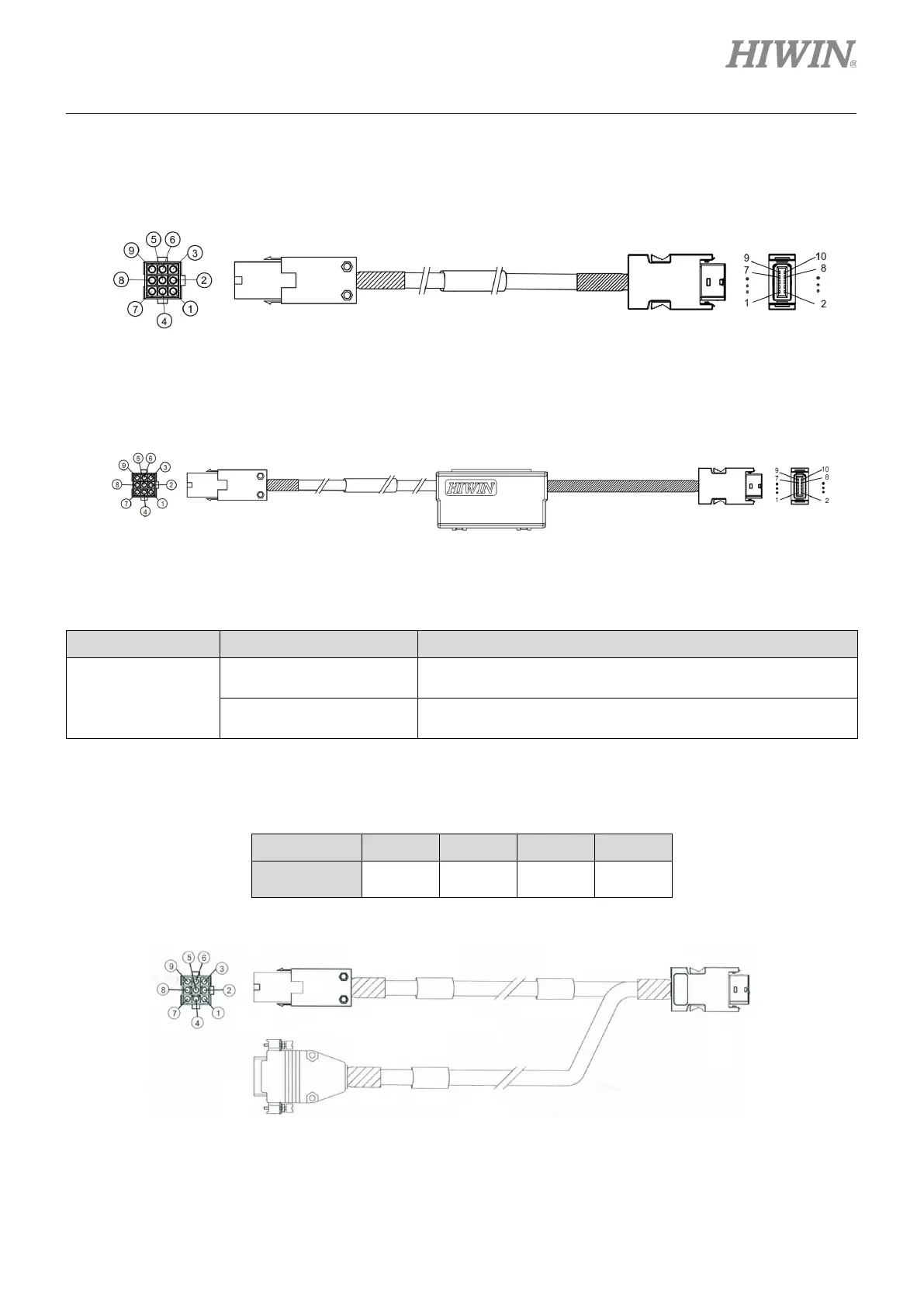

16.1.2 Encoder extension cable for servo motor
Figure16.1.2.1 Encoder extension cable (HVE23IAB□□MB, serial incremental type, without battery box)
Figure16.1.2.2 Encoder extension cable (HVE23AAB□□MB, serial absolute type, with battery box)
Table16.1.2.1 Encoder extension cable for servo motor
Name HIWIN Part Number Description
Encoder extension
cable
HVE23IAB□□MB For 50 W ~ 750 W motor, serial incremental, highly bendable
HVE23AAB□□MB
For 50 W ~ 750 W motor, serial absolute (with battery box),
highly bendable
□□ stands for cable length, please refer to below.
Table16.1.2.2
□□ 03 05 07 10
Cable Length
(m)
3 5 7 10
Figure16.1.2.3 Encoder extension cable (HE00817DR□00, serial incremental type for full-closed loop control,
without battery box)
Motor end
Servo drive end CN7
Motor end
Servo drive end CN7
Motor end
Servo drive end CN7
Renishaw linear digital
encoder
