Hiwin E1 Series User Manual

E1 Series Servo Drive User Manual Appendix
16-4 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910

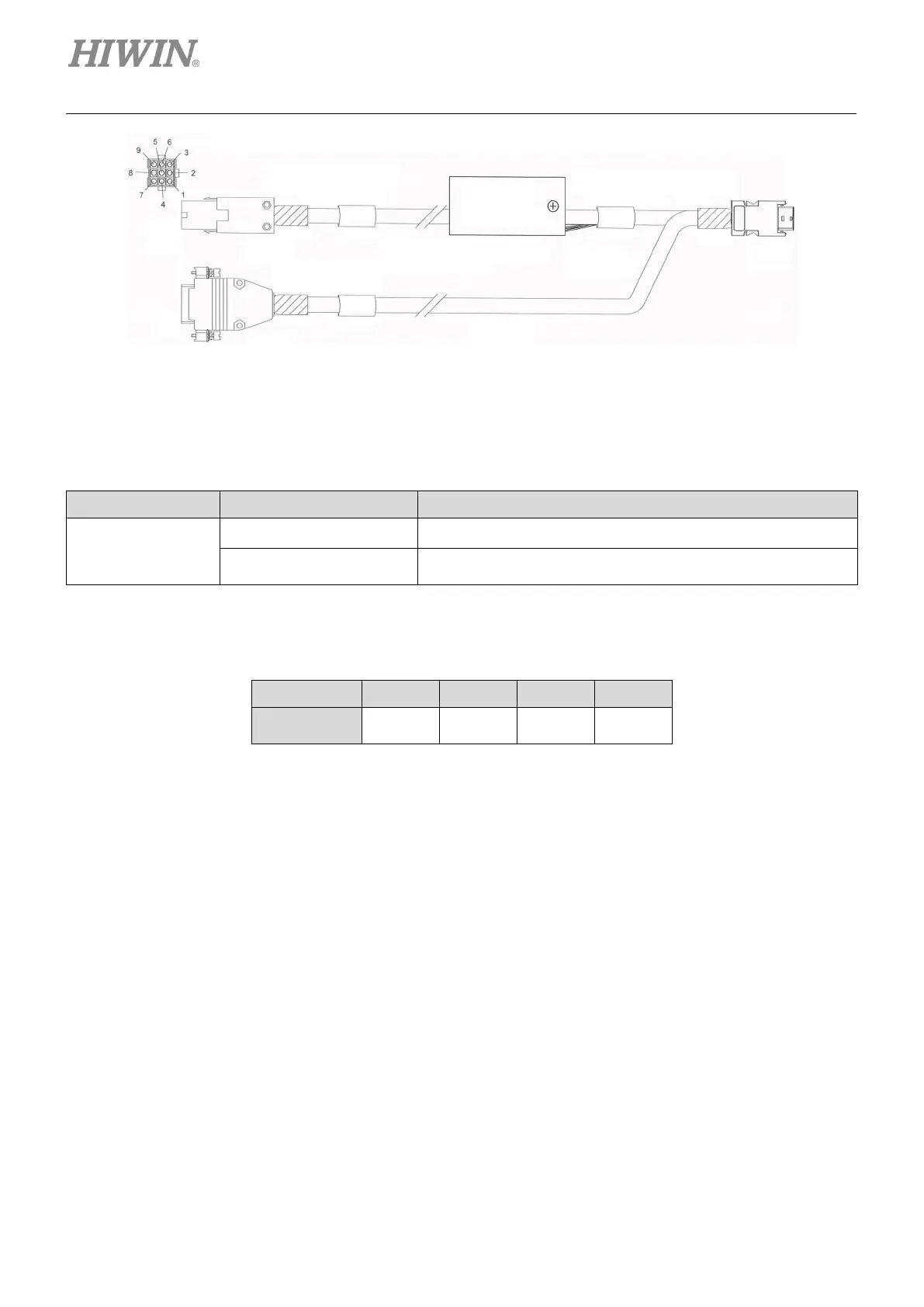

Figure16.1.2.4 Encoder extension cable (HE00817EZ□□0, serial absolute type for full-closed loop control, with battery box)
Table16.1.2.3 Encoder extension cable for full-closed loop control
Name HIWIN Part Number Description
Encoder extension
cable
HE00817DR□00 For 50 W ~ 750 W motor, full-closed loop control
HE00817EZ□00
For 50 W ~ 750 W motor, full-closed loop control (with battery
box)
□ stands for cable length, please refer to below.
Table16.1.2.4
□ 3 5 7 A
Cable Length
(m)
3 5 7 10
Motor end
Servo drive end CN7
Renishaw linear digital
encoder
