 Automatic offset adjustment
Automatic offset adjustment is that after the servo drive measures the offset, it automatically adjusts
the analog voltage of velocity command. The offset needs to be saved to the servo drive. (Save RAM
to Flash) If not, automatic offset adjustment must be done after the servo drive is turned on again.
The conditions for performing automatic offset adjustment are: (a) The servo drive is in servo OFF
state. (b) The controller does not input any signal.
Click on Tools in the main screen of Thunder and select Analog offset. Click on Set zero button in
Analog offset window to automatically adjust offset.

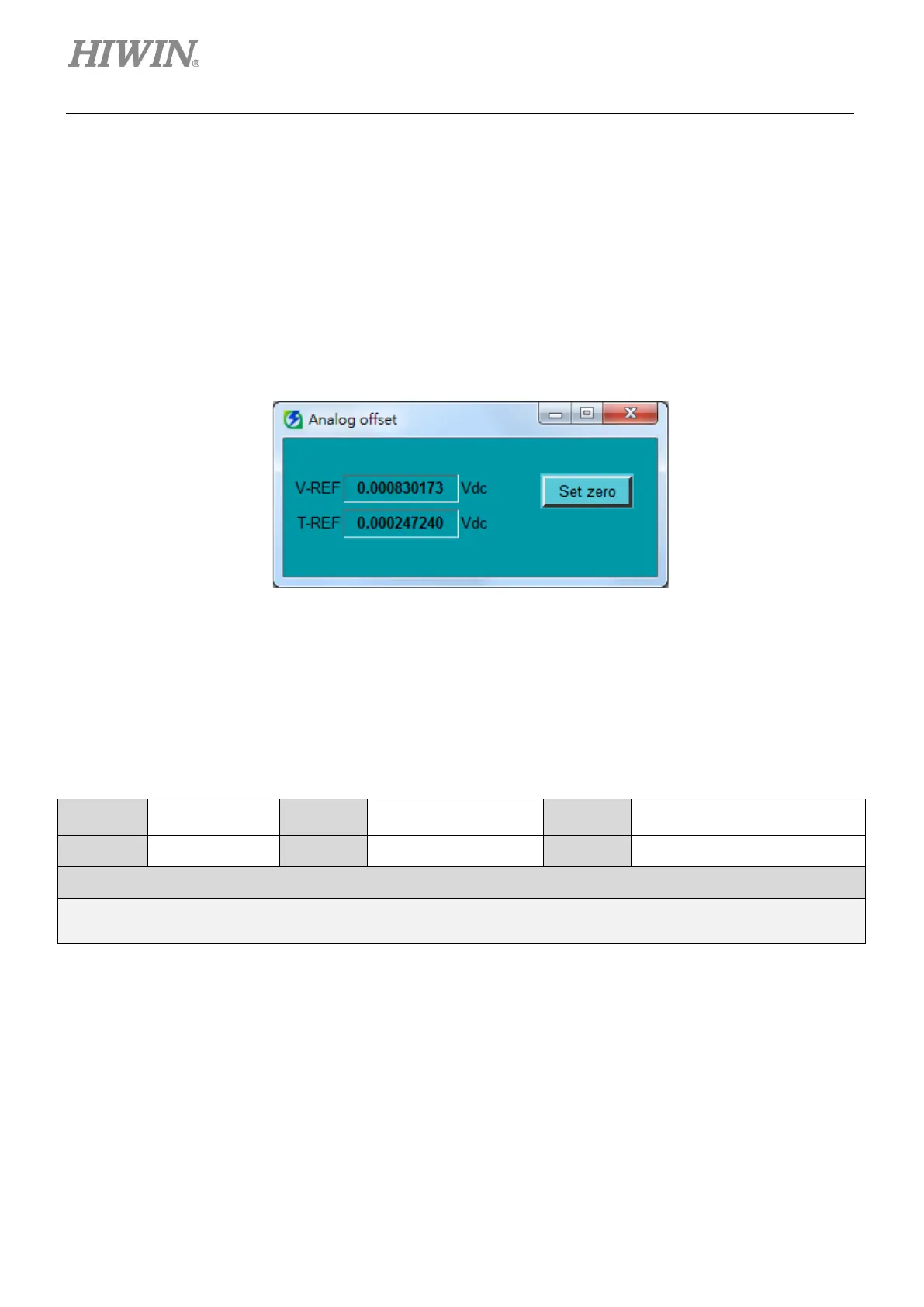

Figure 8.3.2.2 Offset adjustment tool in Thunder
 Dead band for velocity command input
After automatic offset adjustment completes, the analog voltage of velocity command could still jitter.
Set Pt30D (Dead band for velocity command input) to ignore the velocity command of a certain
range.
Table 8.3.2.1
Parameter Pt30D Range 0~3000
Control
Mode
Position mode, velocity mode
and torque mode
Default 0 Effective Immediately Unit 1 mV
Description
Set the dead band for velocity command input.
