E1
Seri
es Servo
Drive Us
er Man
ual
Application Fu
nction
HIW
IN MIKRO
SYST
EM C
ORP
.
8-
47
MD0
9UE
01
-1
910

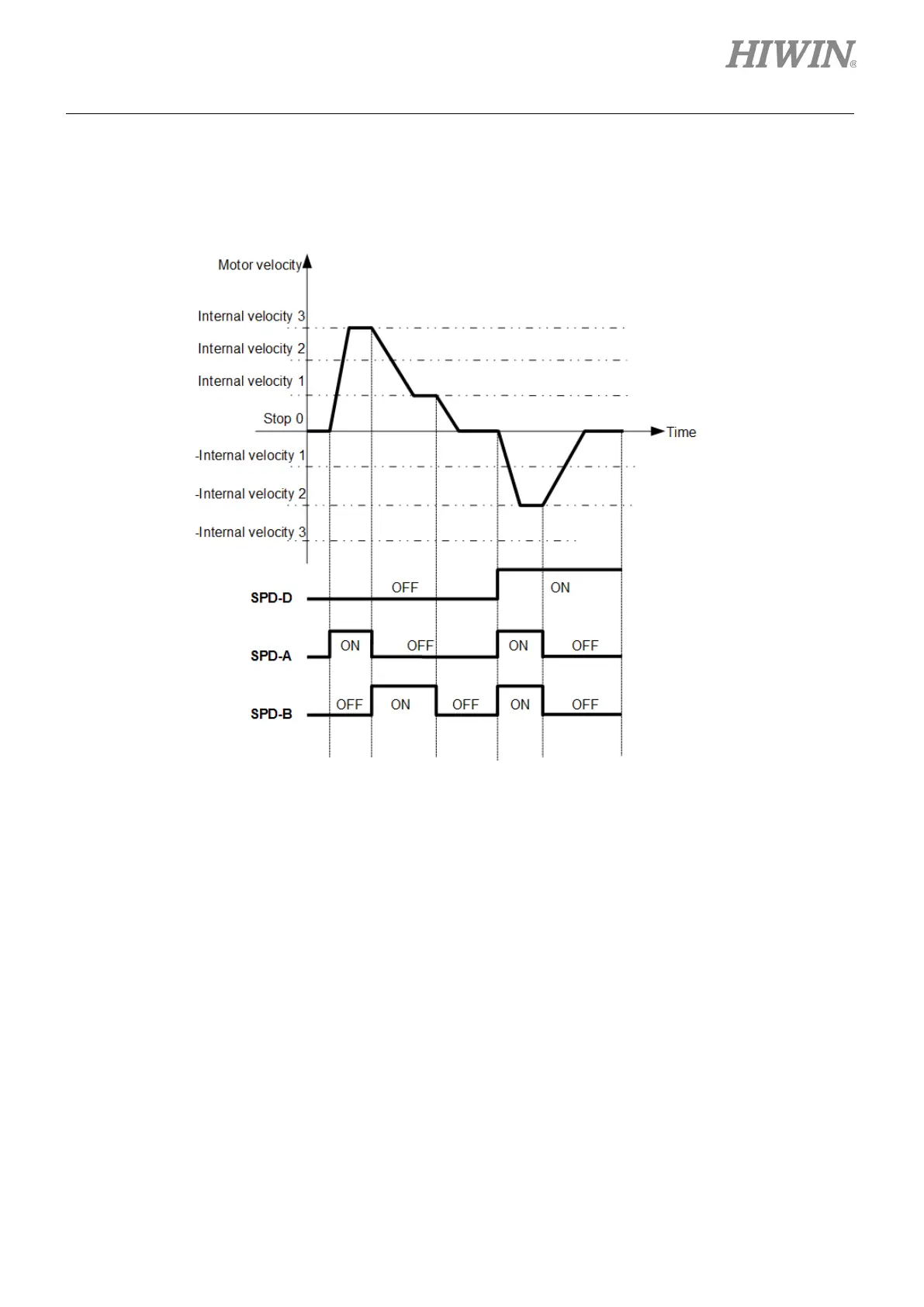

The example of using internal set v
elocity control is as figure 8.8.3.1.
Wh
i
le
switching t
o
different
set
velocit
y
, so
ft
start acceleration time (Pt3
05)
or
soft start deceleration time (Pt306) wi
ll be used to reduce
t
he impact caused by
v
elocity
chang
e.
Figure8.8.
3.1
176
178
