 Precautions for wiring and connecting noise filter
The input cables and output cables of noise filter must be separated. Do not put them in the same
cable tray or tie them together.

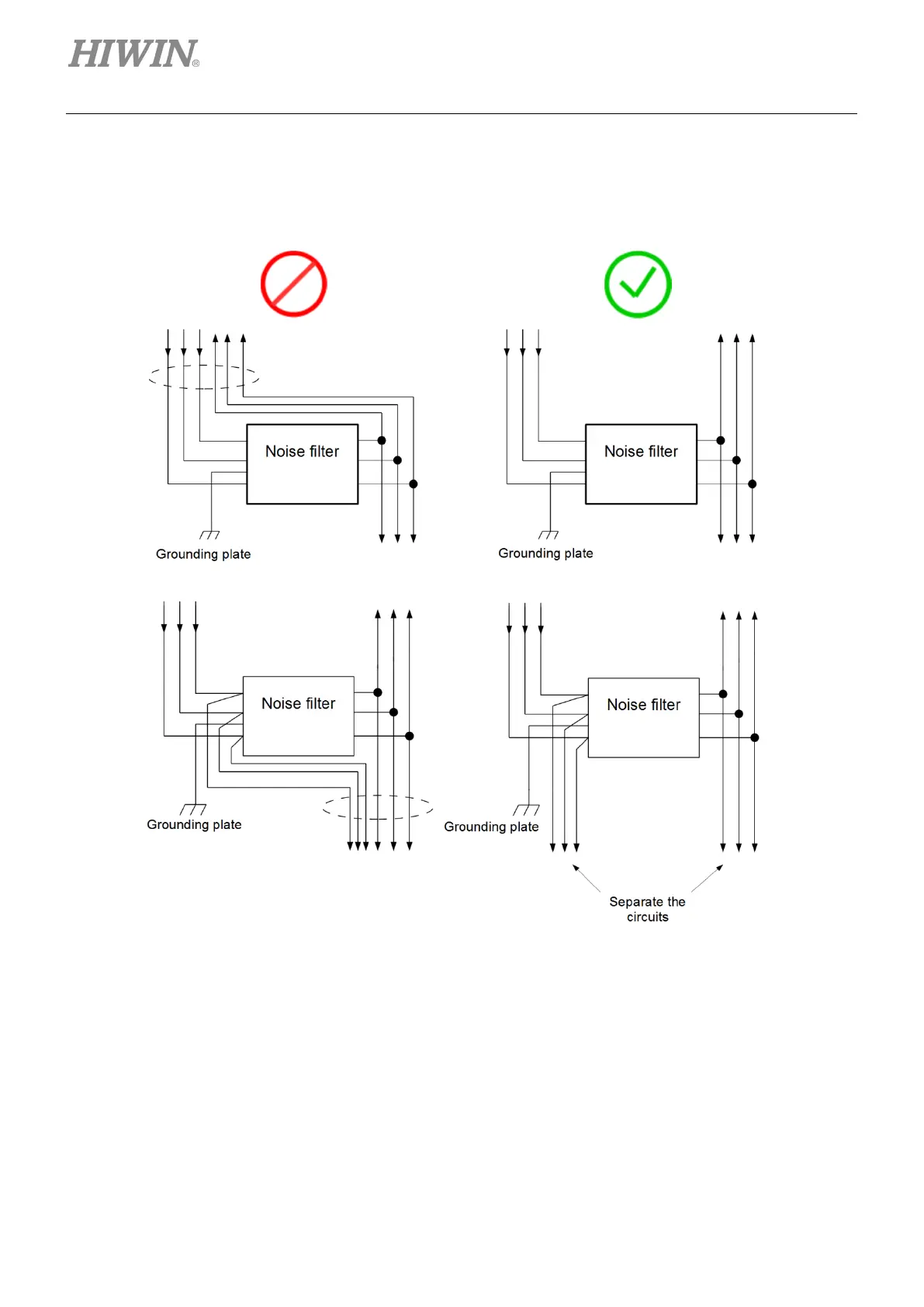

Figure5.1.2.2
