E1 Series Servo Drive User Manual Electrical Planning
5-8 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910

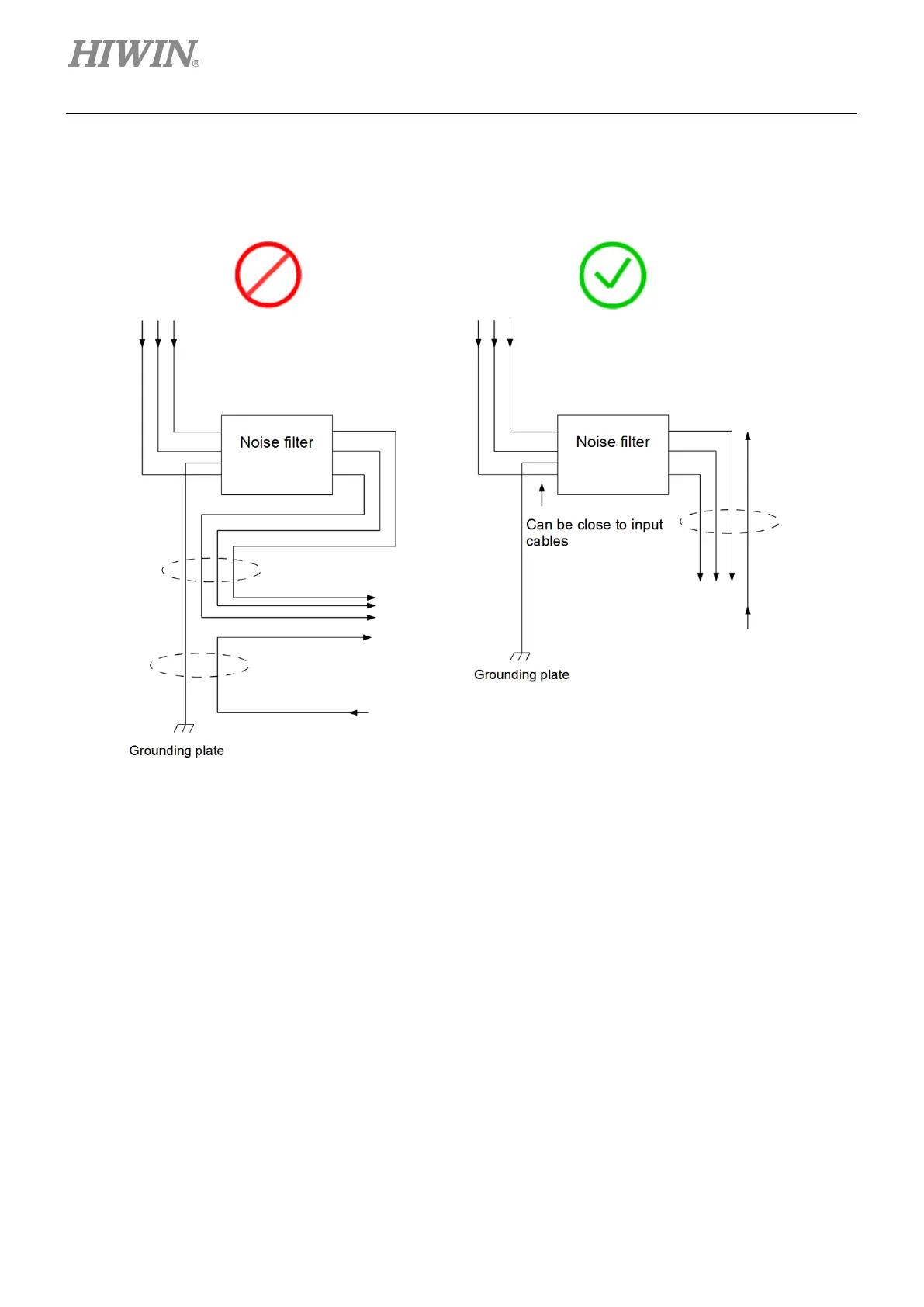

Do not put the ground wire, output cables and other signal cables in the same cable tray or tie them
together.
Figure5.1.2.4
