E1 Series Servo Drive User Manual Electrical Planning
HIWIN MIKROSYSTEM CORP. 5-19
MD09UE01-1910

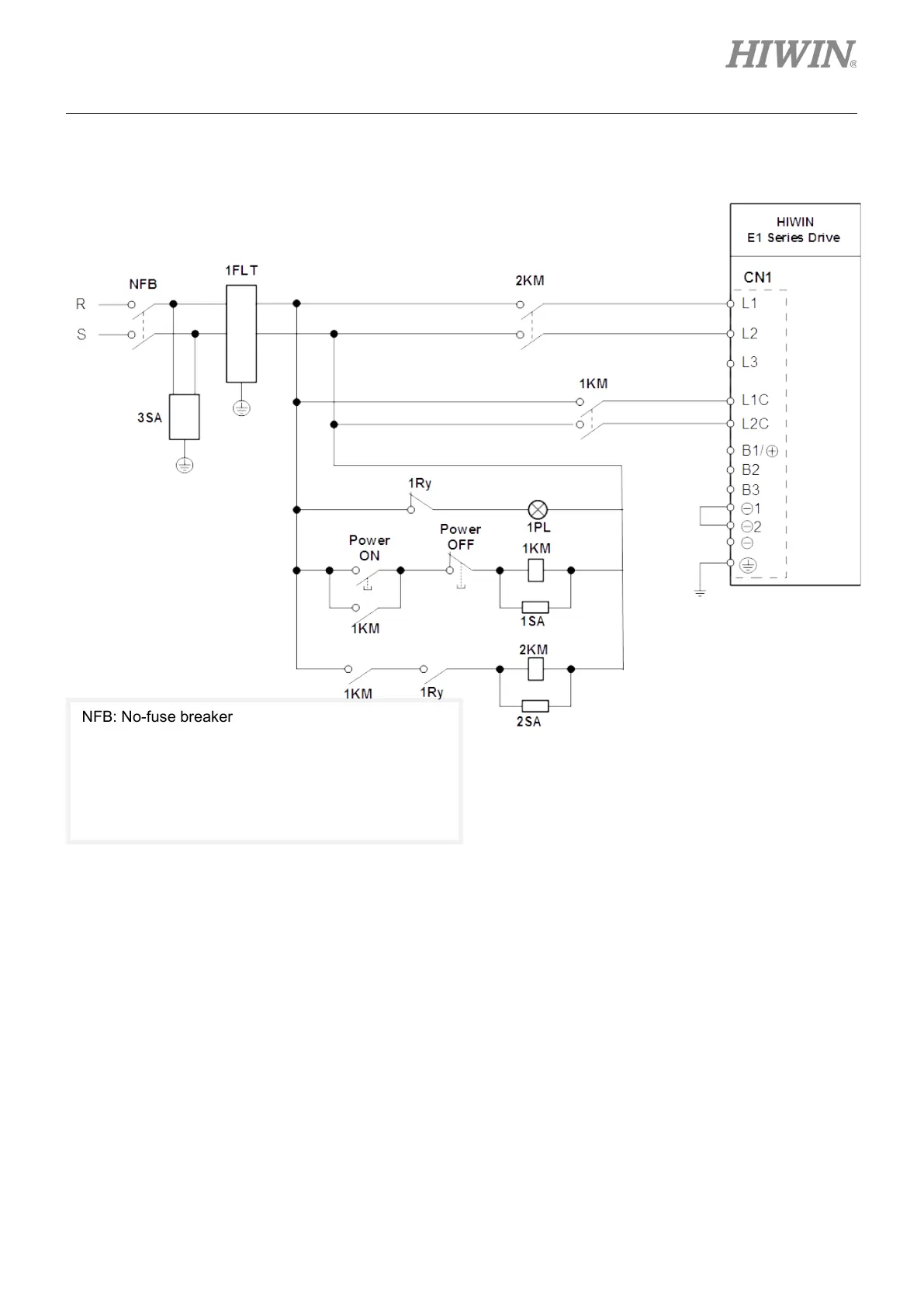

 Wiring diagram for single-phase AC 220 V power supply
Figure5.3.4.2
NFB: No-fuse breaker
1FLT: Noise filter
1KM: Magnetic contactor (control power supply)
2KM: Magnetic contactor (main circuit power supply)
1Ry: Relay
1PL: Indicator
1SA/2SA/3SA: Surge absorber
