E1 Series Servo Drive User Manual Electrical Planning
5-22 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
 Using built-in regenerative resistor
To use built-in regenerative resistor, please connect B1/⊕ and B2 terminals of the servo drive.

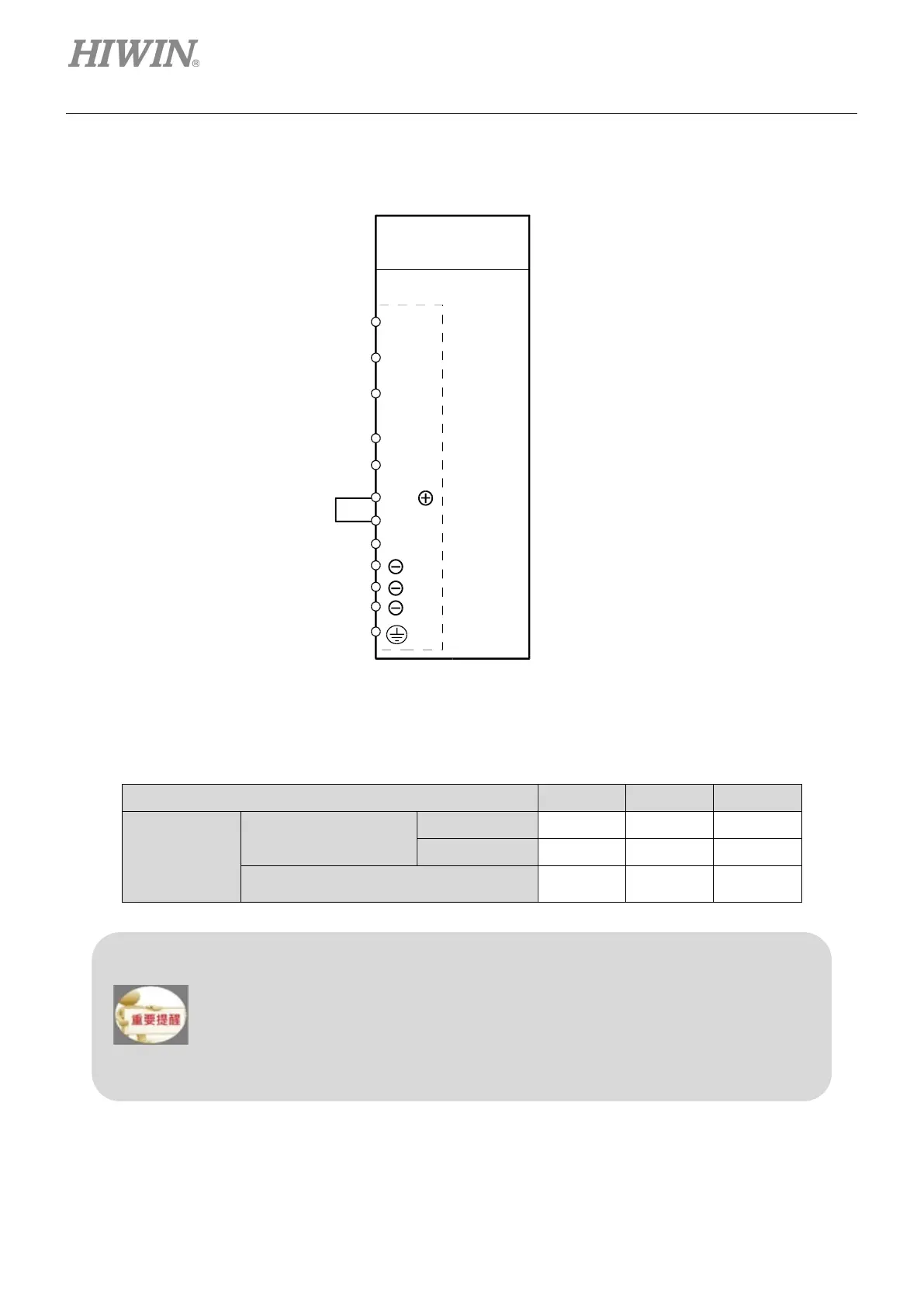

Figure5.3.5.2
 Built-in regenerative resistor of the servo drive
Table5.3.5.1
Model 400 W 1 KW 2 KW
Regenerative
Resistor
Built-in
Regenerative Resistor
Resistance [Ω] N/A 40 12
Capacity [W] N/A 40 60
Minimum Allowable Resistance of
External Regenerative Resistor [Ω]
40 40 12
L1
L2
L3
L1C
L2C
B1/
B2
B3
1
2
CN1
HIWIN
E1 Series Drive

Pt600 (Regenerative resistor capacity) and Pt603 (Resistance of regenerative
resistor) must be correctly set when external regenerative resistor or built-in
regenerative resistor is used. Otherwise, AL.320 (Regenerative energy overflow)
may not be detected. And this may cause damage to the regenerative resistor, injury
or fire.
 Ensure
the capacity of regenerative resistor is suitable. If not, this may cause
regenerative resistor burn-out, injury or fire.
