E1 Series Servo Drive User Manual Electrical Planning
5-30 HIWIN MIKROSYSTEM CORP.
MD09UE01-1910
(3) Single-ended signal input (External resistor is not used.)

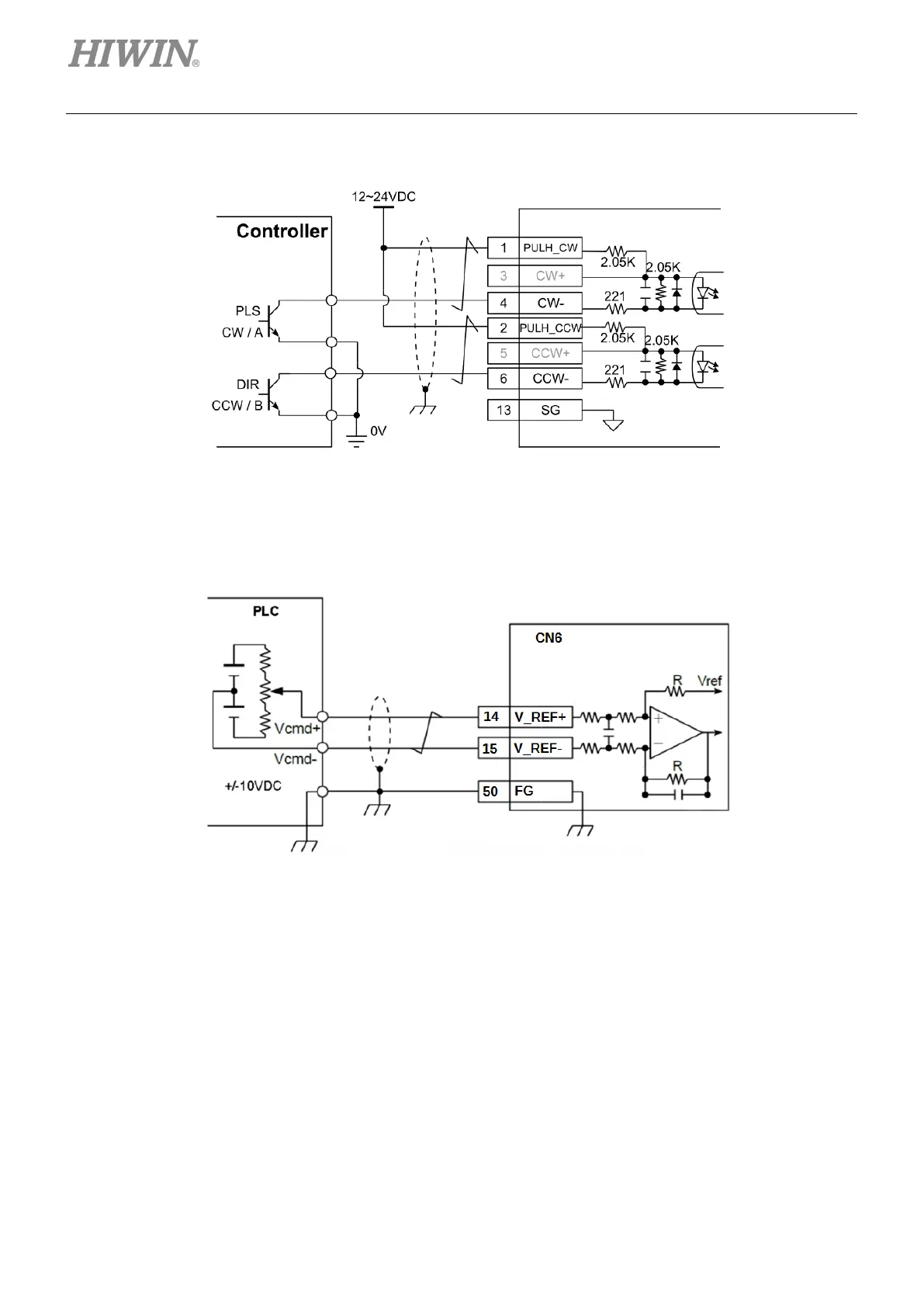

Figure5.5.2.3
 Velocity mode (Analog command)
Motor velocity is controlled by analog voltage (+/-10 V).
Figure5.5.2.4
