E1 Series Servo Drive User Manual Electrical Planning
5-32 HIWIN MIKROSYSTEM CORP.

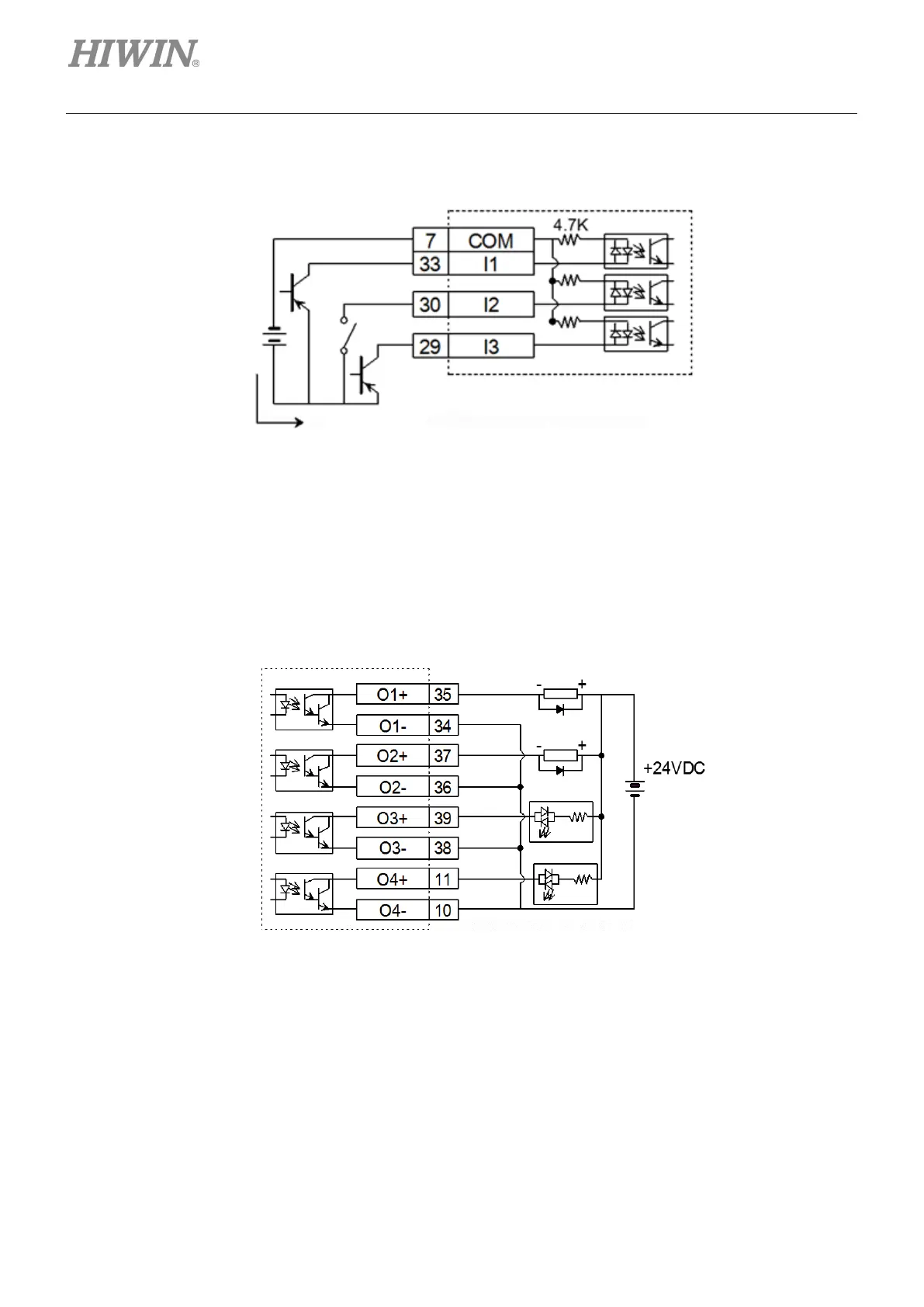

(2) Wiring for digital inputs (Source) (Switch or transistor)
Figure5.5.3.2
Wiring for digital outputs
Digital output signal is output via optical coupler. The external power must not exceed 24 VDC. The
digital outputs are independent open-collector outputs. The maximum allowable current is 100 mA.
Digital output functions can be user-defined.
(1) Wiring for digital outputs (Relay or optical coupler)
Figure5.5.3.3
To Next Page
