INSTRUMENT TROUBLESHOOTING

ThinPrep 2000 Processor Operator’s Manual

6.9

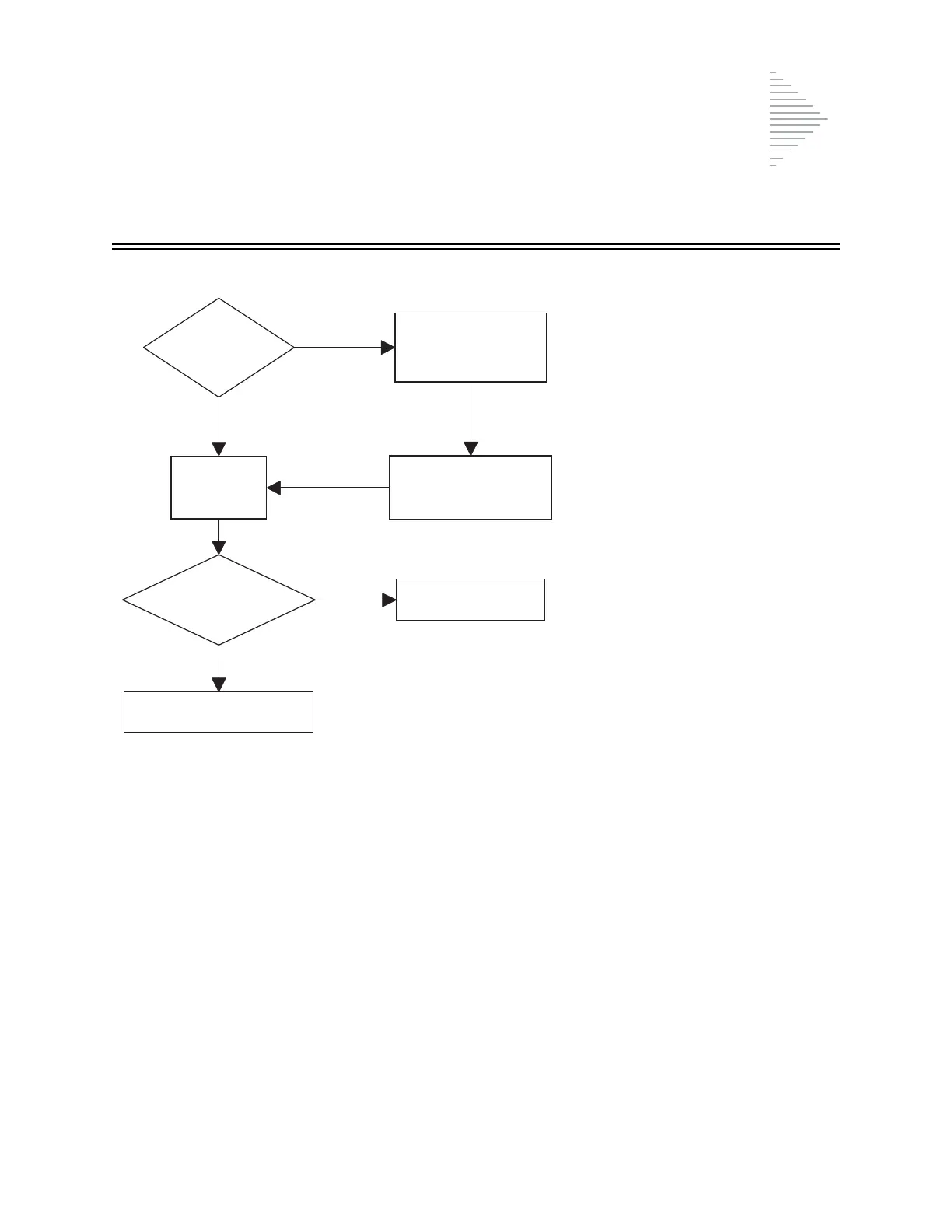

Insert Slide to Continue Processing

Is the slide

installed?

YES

Remove slide and

check for obstruction.

Insert slide.

Check slide for damage.

Replace if necessary.

Does message persist?

YES

Call Technical Service.

No further action required.
