INSTRUMENT TROUBLESHOOTING

ThinPrep 2000 Processor Operator’s Manual

6.13

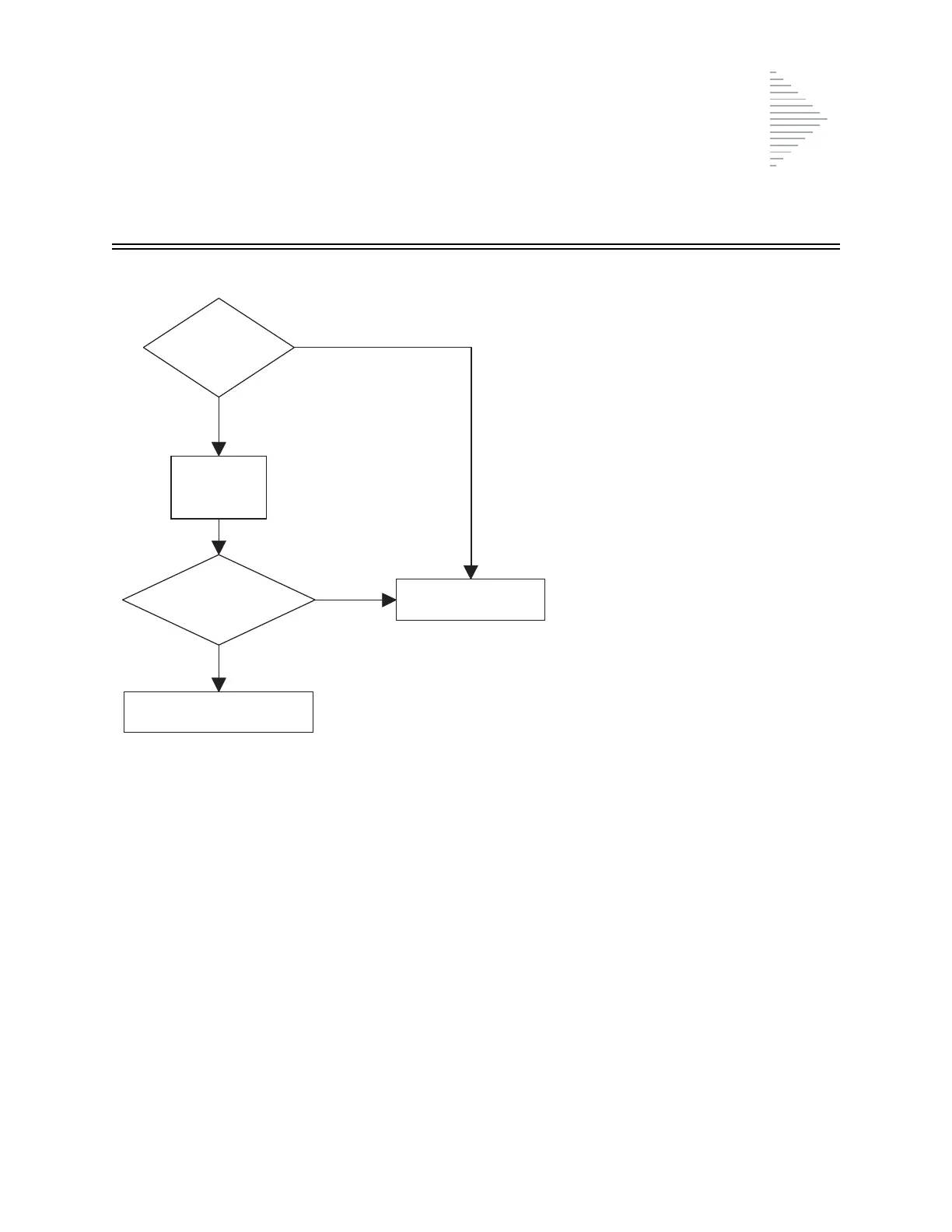

Remove Fix Bath

Is the

fixative vial

installed?

YES

Remove

fixative vial.

Does message persist?

YES

Call Technical Service.

No further action required.
