6.4.3.2 Displaying/Viewing item files
To display or view item files:
l
Establish a serial communication between EC350 and MasterLink Software Application SQL. Refer
to the MasterLink Software Application SQL User’s Guide for information about establishing a serial
connection between EC350 and MasterLink Software Application SQL.
l
In the MasterLink Software Application SQL window, click on Reports > I tems Report to view any
item file previously read from EC350.
The Item Report dialog box appears.
l
Click Select and browse to the file you want to view
l
Click Preview to view the item report, or click the Print to send the item file report out to a specified
printer
6.4.4 Calibrating pressure
Attention: Check the sensors before calibrating pressure.
To calibrate pressure:
l

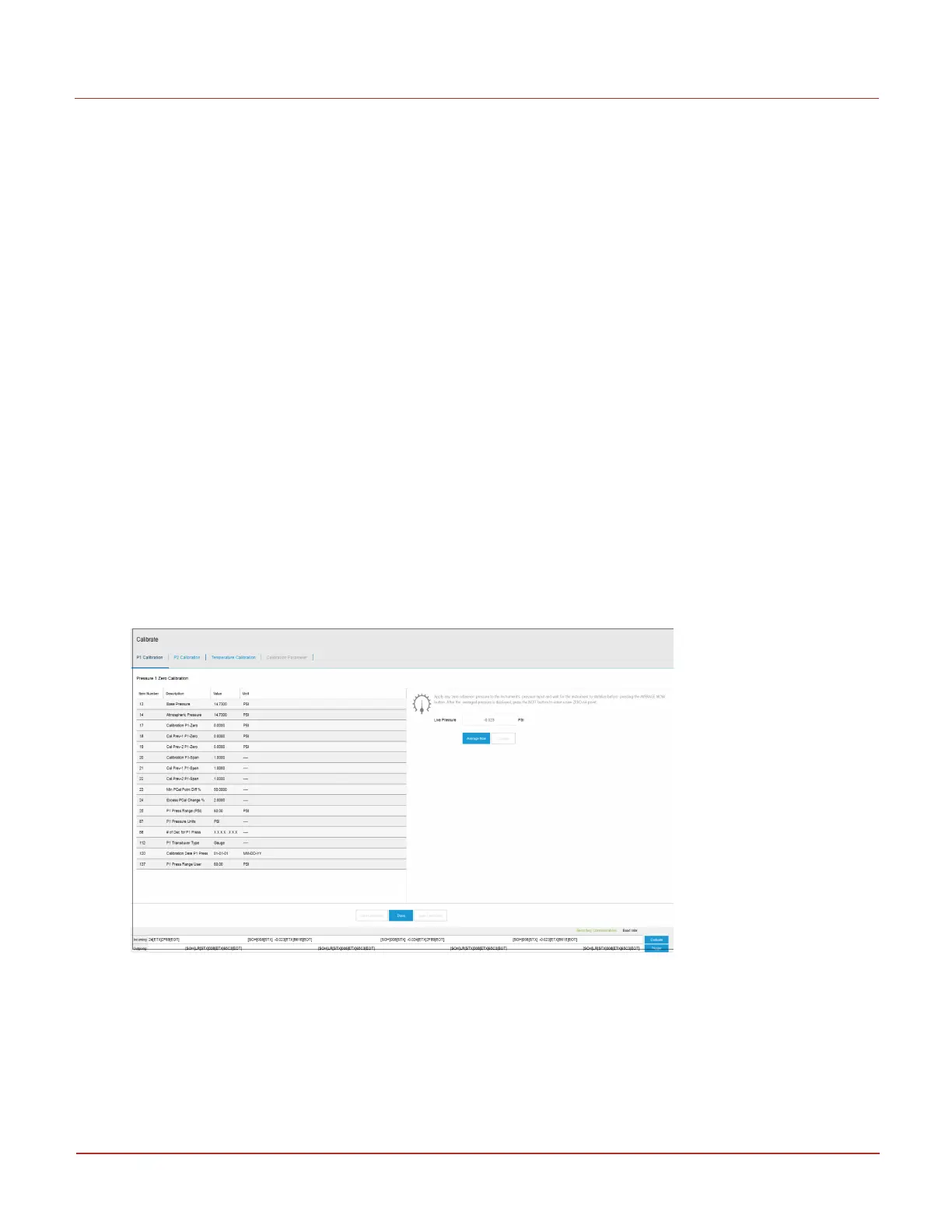

In the MasterLink Software Application SQL window, click Calibrate > Pressure .
The Pressure 1 dialog box appears.
l
Apply a zero reference pressure (0.00 PSI) to the P1 pressure transducer of EC350.
Wait for the pressure reading displayed on the Pressure 1 dialog box to stabilize.
l
After the reading stabilizes, click Average Pressure Now .
MasterLink Software Application SQL averages the reading and displays the average pressure.
