1 About EC350
1.4 Main interfaces of EC350
Honeywell 2024
15
1.4.3 External Connections
The external connections from EC350 are:
l
Pulse outputs
l
Serial port
l
Alarm outputs
l
External supply voltage (TB1)
l
Battery pack (P5)

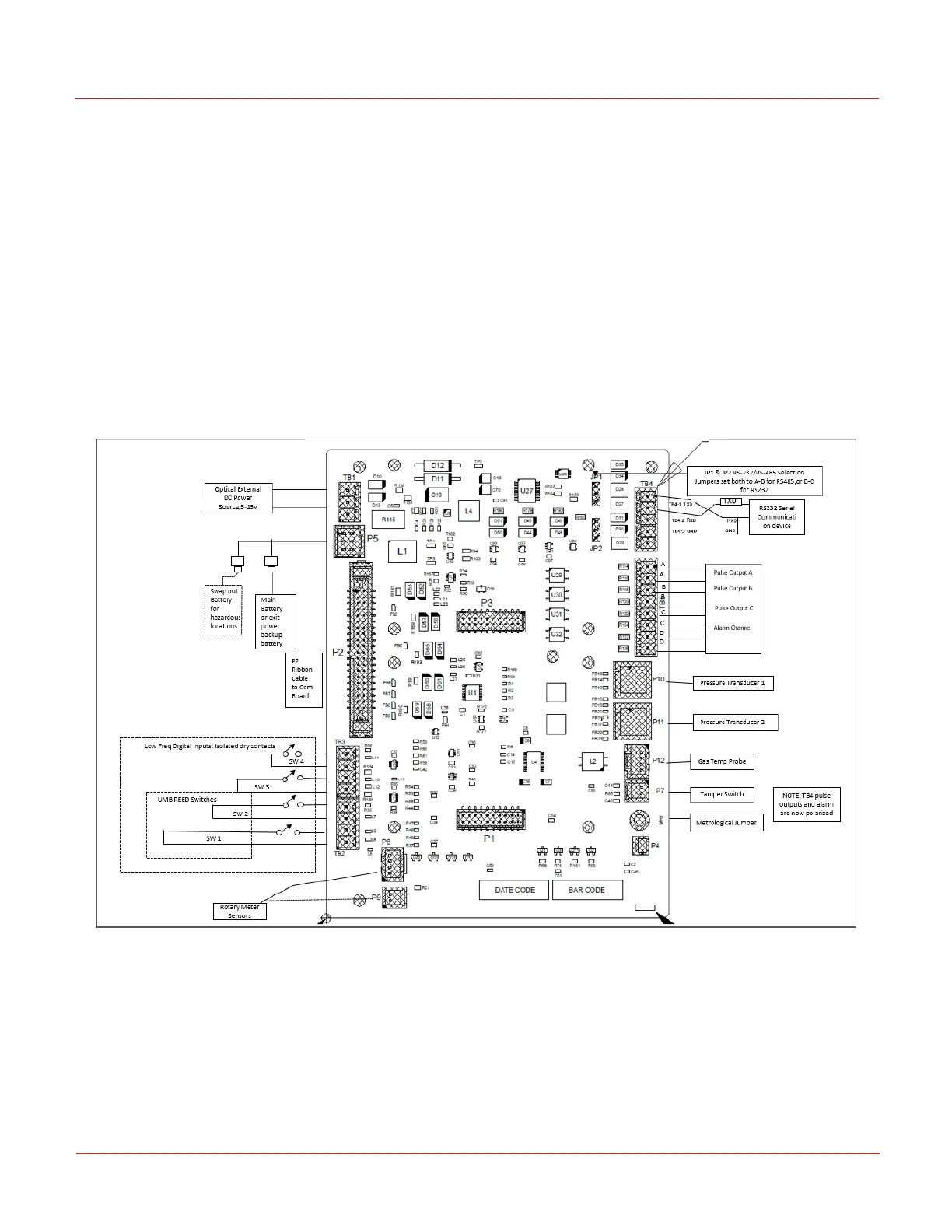

The figure below illustrates the purpose of different jumpers and other connections on an EC350 IO
board:
