3 EC350 installation
3.8 īGeneral Wiring connections
Honeywell 2024
49
3.8.3 Pulse outputs via the case connector option

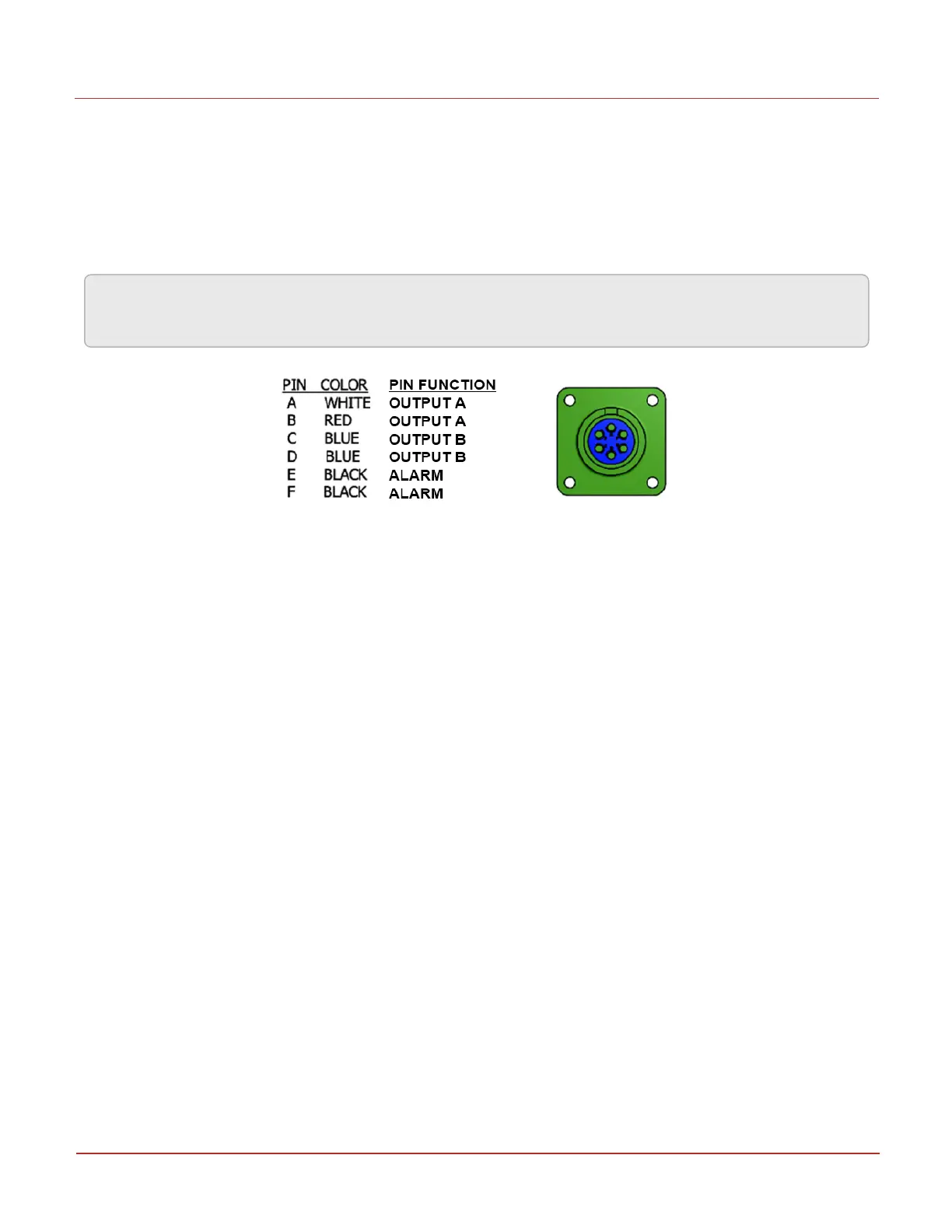

A 6 pin Amphenol case connector can be ordered to provide for the connection of two of the three pulse
outputs plus the alarm from outside the instrument. The connector as shown below is viewed from outside
the instrument. Pins A ā F are labeled clockwise with pin A at the top. The table below shows the
connections.
Note: Note that since the outputs are non-polarized, wires can be connected in either polarity to each
output.
