3.5.4 Connecting a pressure line to EC350

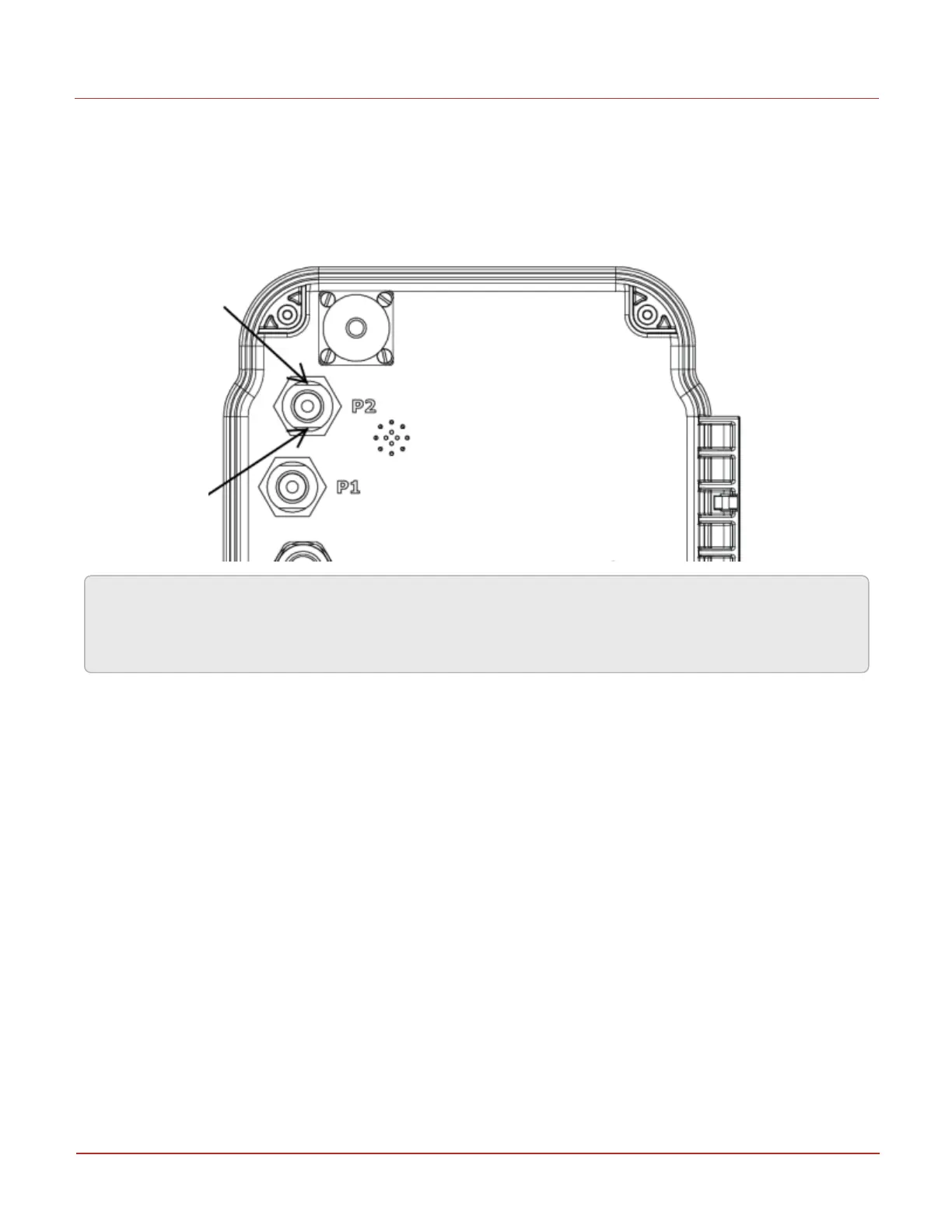

Use a pressure connection kit, and connect the pressure line to the ¼ inch NPT fitting.
Hold wrench on flats when installing pressure line on Pressure transducer to ensure proper seal and avoid
loads on composite case.
Warning: To avoid explosion, it is extremely important to ensure the pressure transducer is capable of
handling the pressure in the gas line. Check item entry 137 (user units) or item entry 25(PSI) on the
EC350 for maximum pressure transducer information before applying live gas pressure to the EC350.
3 EC350 installation
3.5 Installing EC350 on conventional diaphragm, rotary or turbine gas meters
Honeywell 2024
30
