Restore the normal pressure line to EC350 and click Done to exit the calibration.
6.4.5 Calibrating PLog pressure
To calibrate PLog pressure or P2:
l
In the MasterLink Software Application SQL window, click Calibrate> Ressure.

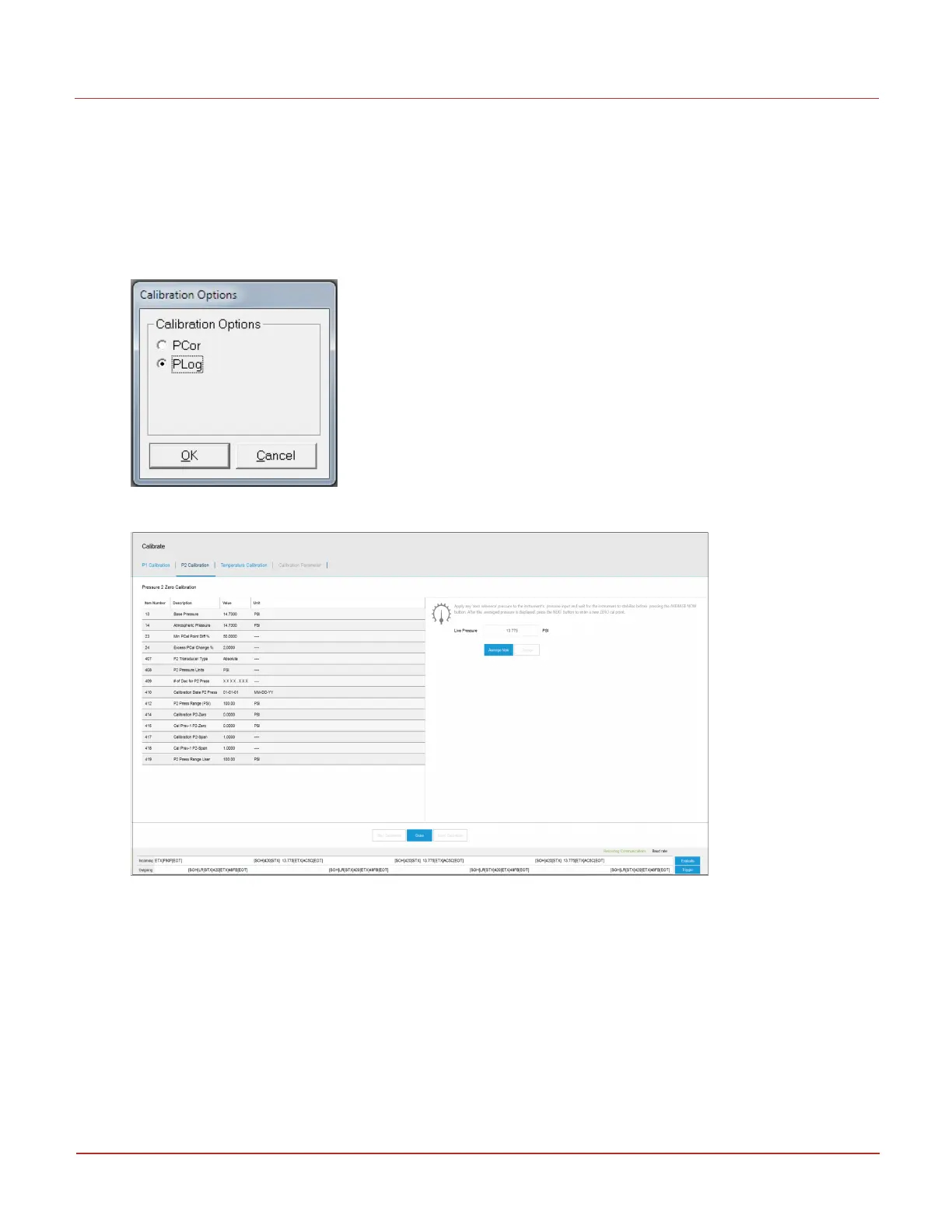

The Calibration Options dialog box appears. Select PLog.
l
The Pressure 2 dialog box appears.
l
Apply a zero reference pressure (0.00 PSI) to the pressure transducer of EC350. Wait for the
pressure reading displayed on the Pressure 2 dialog box to stabilize.
l
After the reading stabilizes, click Average Pressure Now.
MasterLink Software Application SQL averages the reading and displays the average pressure.
l
Click Change.
The Change PressureCalibration Value dialog box appears.
